The threat · Intruders climbing over your ornamental fence?

D-Corative

Name: D-Corative
Brand: D-FENCE

Ornamental fence panels on sensor posts that alarm on any climb, cut or leaning weight: high security that still looks welcoming.

Ben Gurion Airport

25 kg above panel weight12–24 m zonesPanels up to 100 kg

Discuss your project Catalog

For integrators & consultants

L3LayerThe perimeter line

DatasheetPDF · 302 KB Tender specification textCopy text

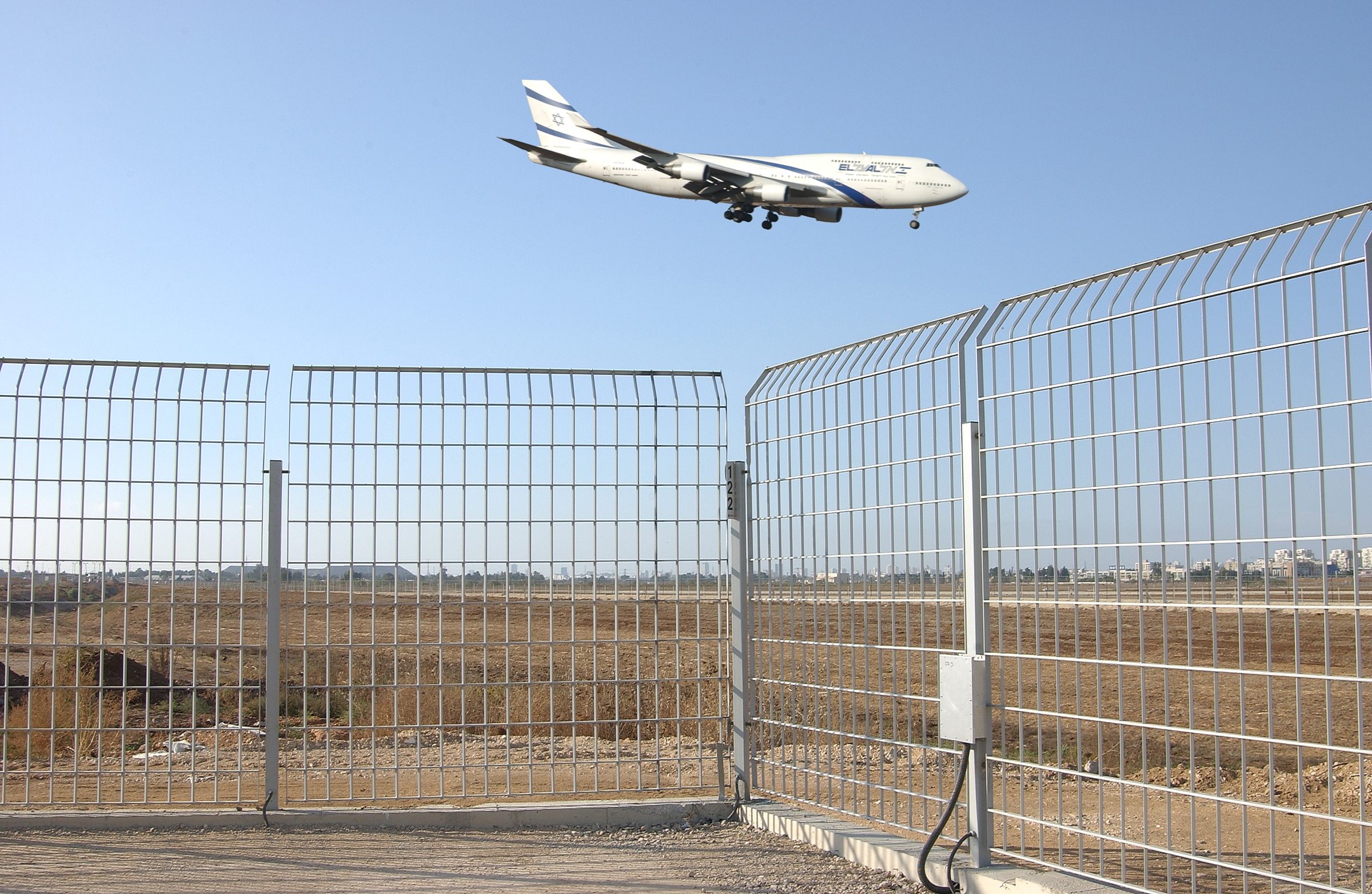

An airliner landing low over the D-Corative fence and its sensor posts on the Ben Gurion International Airport perimeter

Stop climbers without building a fortress.

Most sites want a fence that looks welcoming, not one that looks like a prison. An ordinary ornamental fence only slows an intruder down, and nobody knows when it is climbed.

Security that looks like design

Sensors hide inside the posts; the fence keeps the look you chose.

Alarm on climb, cut or lean

25 kg above the panel weight triggers an alarm for a 12–24 m zone.

Airport-grade reference

Selected for Ben Gurion International Airport after a long testing process.

D-Corative hangs decorative panels on sensor posts. Stainless-steel strain gauges, concealed inside the posts, sit between post and panel and measure every change in load. A climb, a cut or a weight leaned against the fence, 25 kg or more above the panel's own weight, raises an alarm for its zone.

Digital signal processing in the posts, checked against a defined intrusion profile, keeps false alarms to a minimum. It serves sites from private villas to an international airport: the Israel Airports Authority selected D-Corative for Ben Gurion International Airport after a long testing process, as a fence over an existing wall.

From the first touch to the right response.

Sensor posts
Concealed stainless-steel strain gauges carry each decorative panel.
Load change
A climb, a cut or a leaning weight changes the load on the post.
Processing in the post
Digital analysis checks the signal against the intrusion profile.
Zone alarm out
Dry contact or RS232 to the control computer, CCTV, siren, smart-home system or SMS.

Seen in full.

Every image opens full size. Product sheets are shown whole, exactly as D-FENCE publishes them.

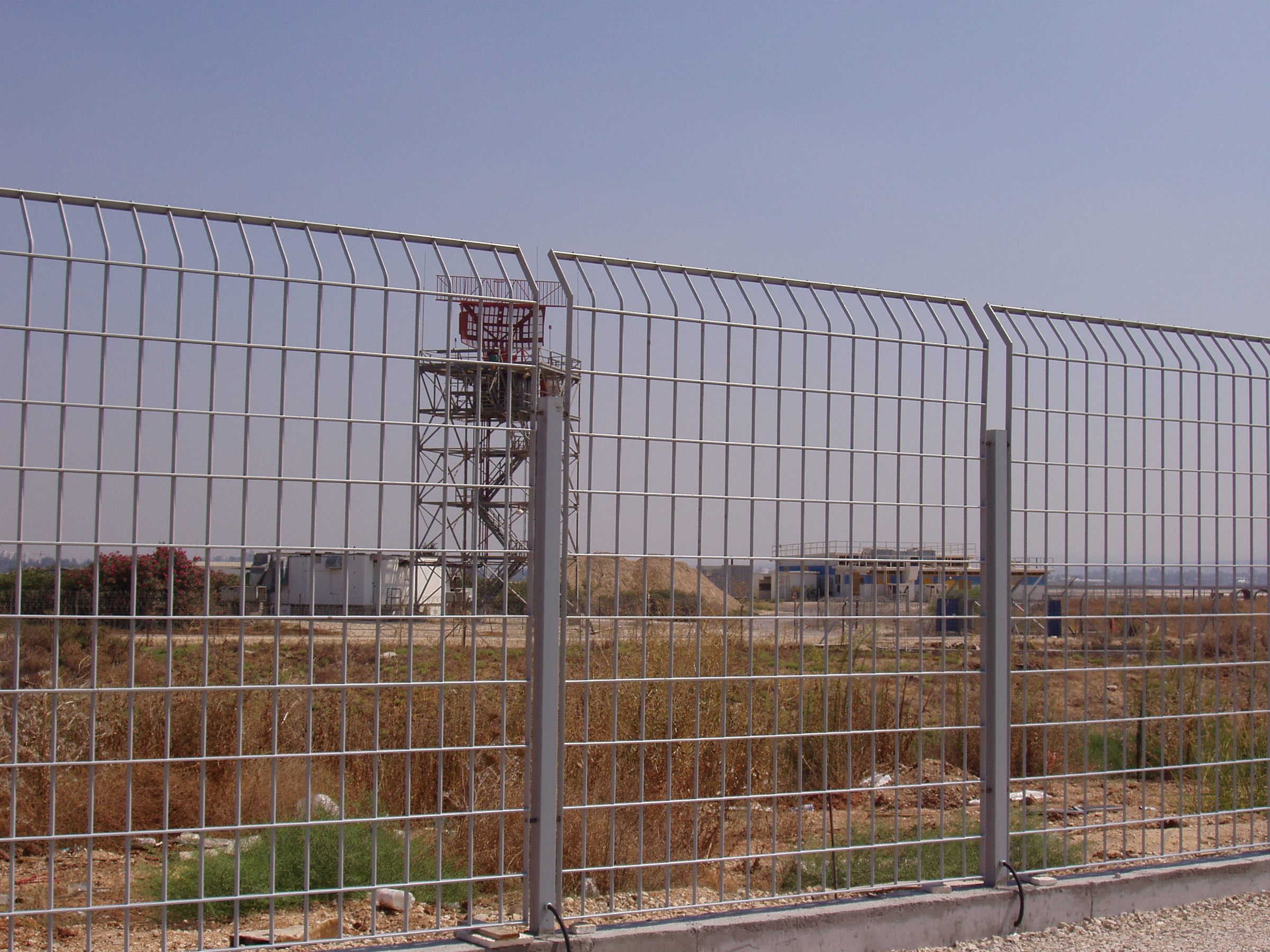

D-Corative panels and grey sensor posts, with sensor cabling at their base, on the airside perimeter of Ben Gurion Airport; a radar tower stands behind — **FIG. 01**Airside perimeter, Ben Gurion Airport

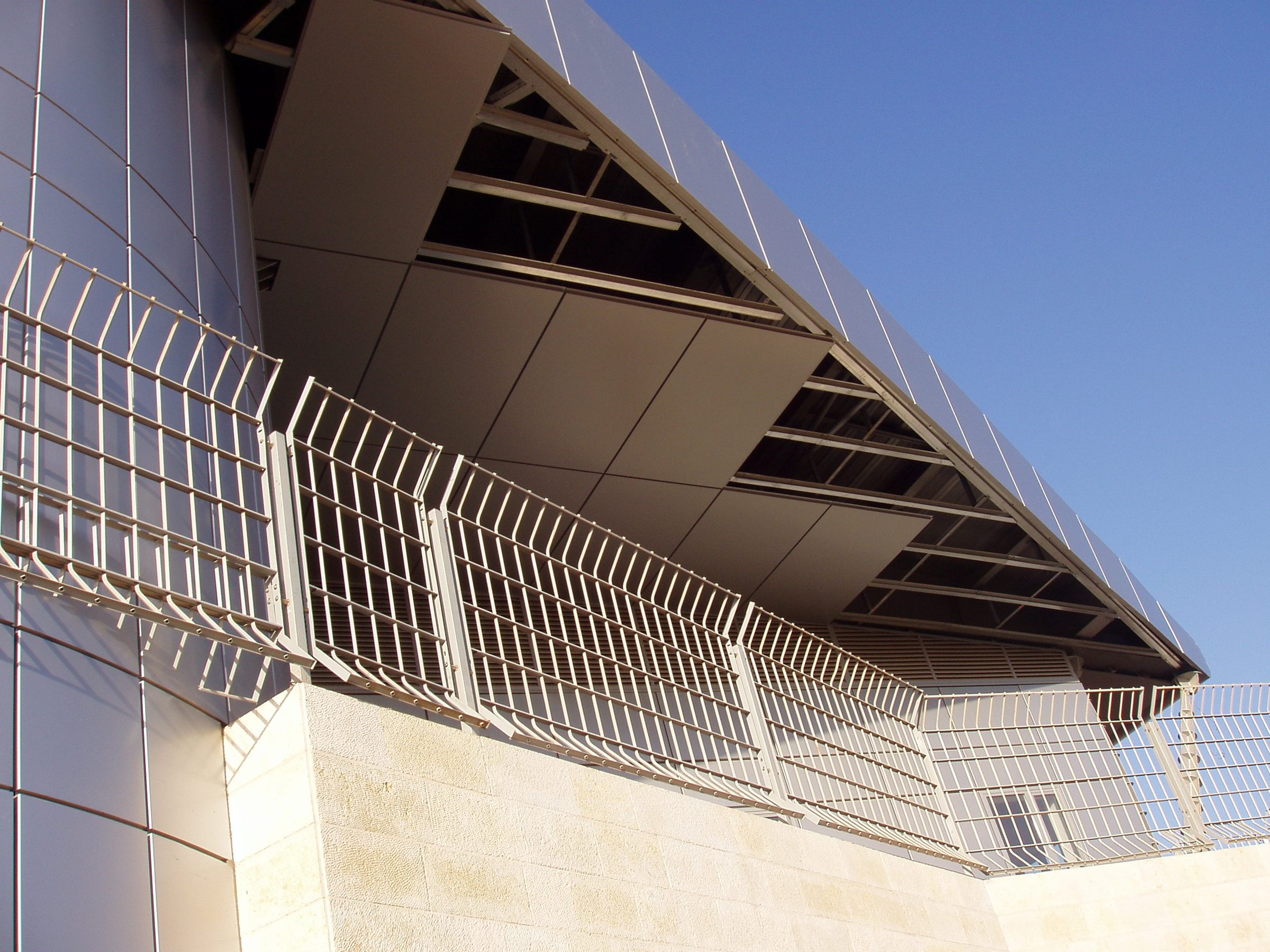

D-Corative fence mounted on top of an existing stone wall beside a terminal building at Ben Gurion Airport — **FIG. 02**Fence over an existing wall, Ben Gurion Airport

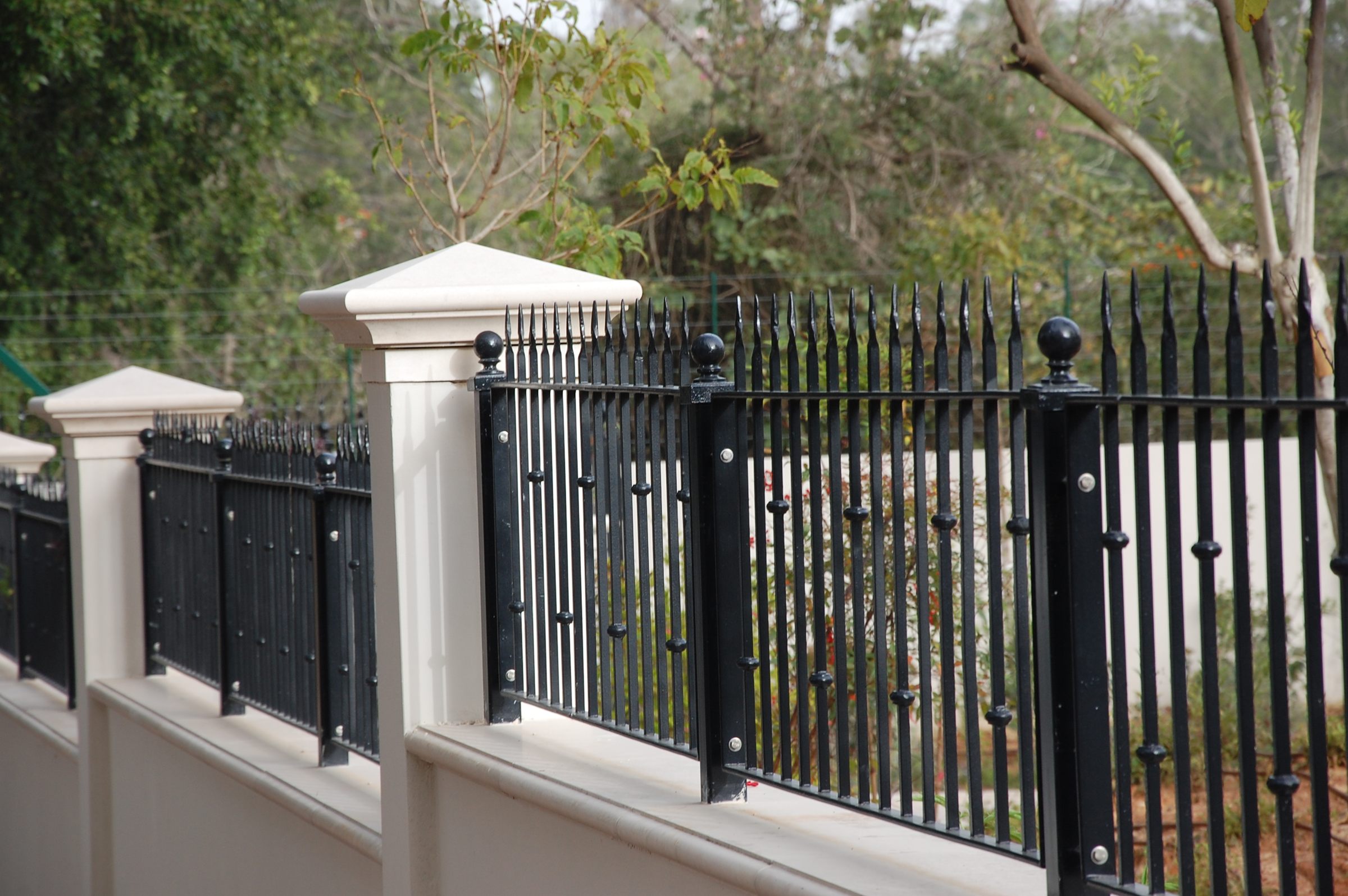

Black spear-top D-Corative fence between stone pillars on a garden wall at a private home — **FIG. 03**Private home: ornamental fence on sensor posts

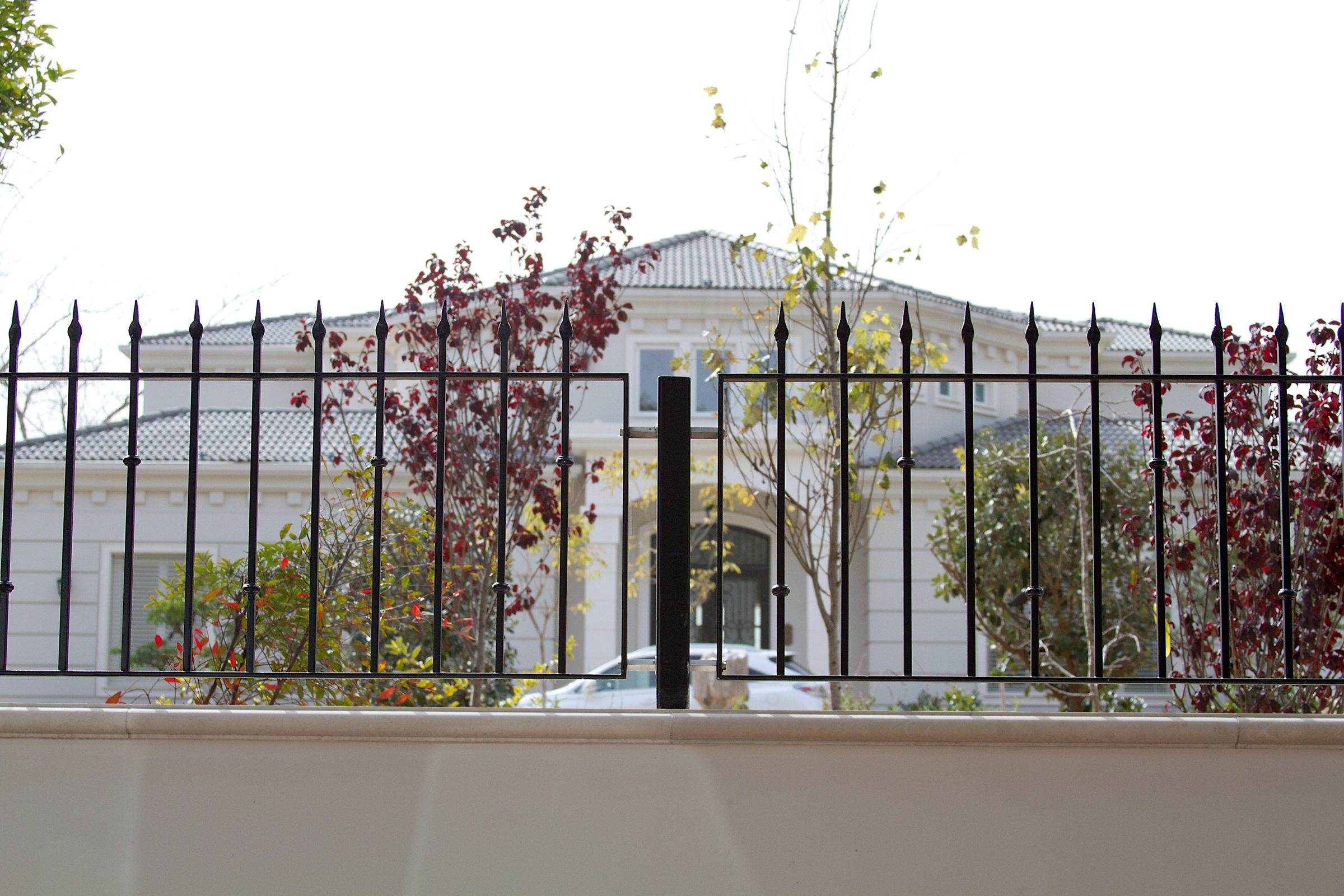

Black ornamental fence with a D-Corative sensor post on a cream wall in front of a villa — **FIG. 04**Villa perimeter

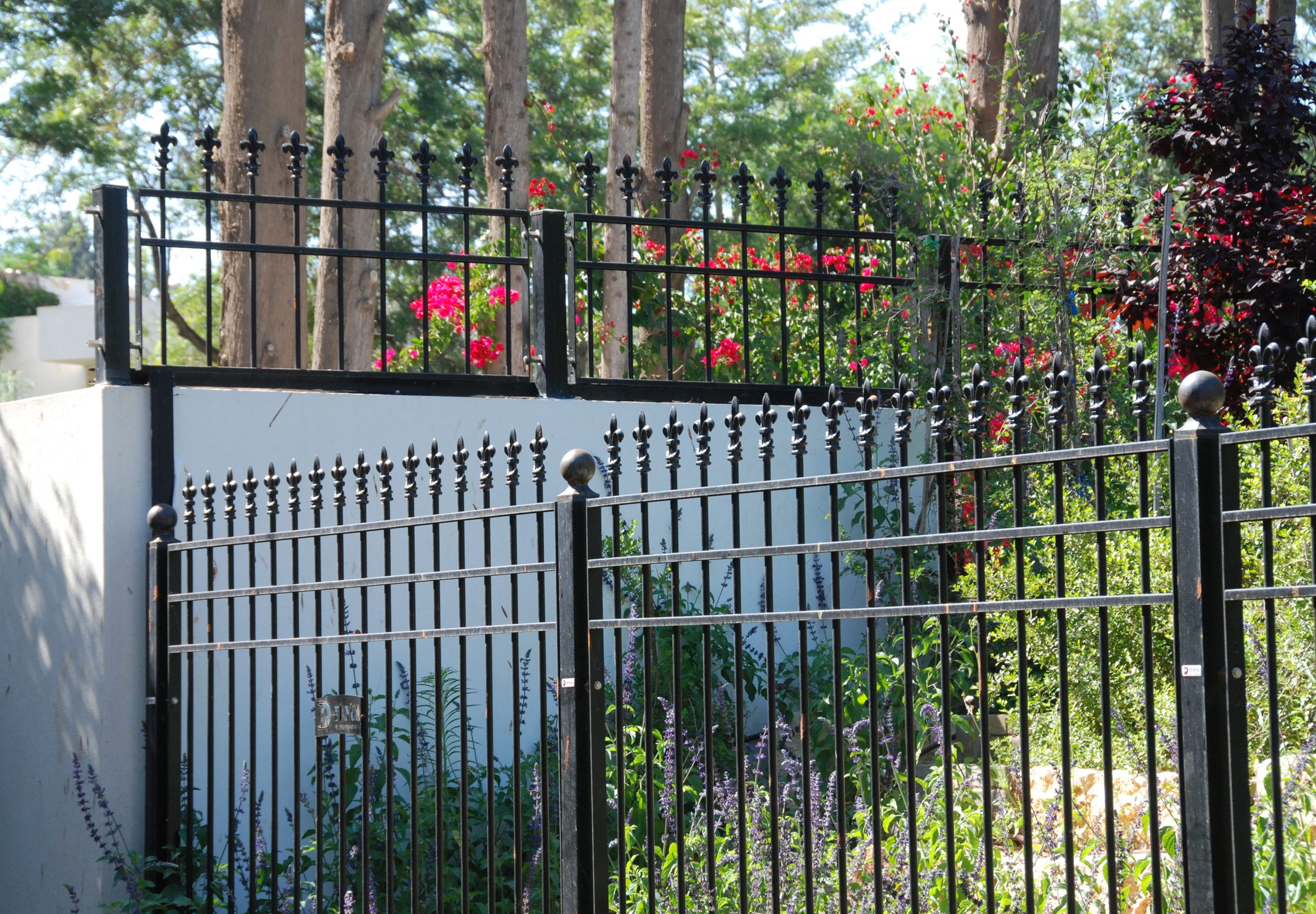

Fleur-de-lis ornamental fence on a white wall; stainless-steel sensor brackets join the post to the panel — **FIG. 05**Sensor brackets between post and panel

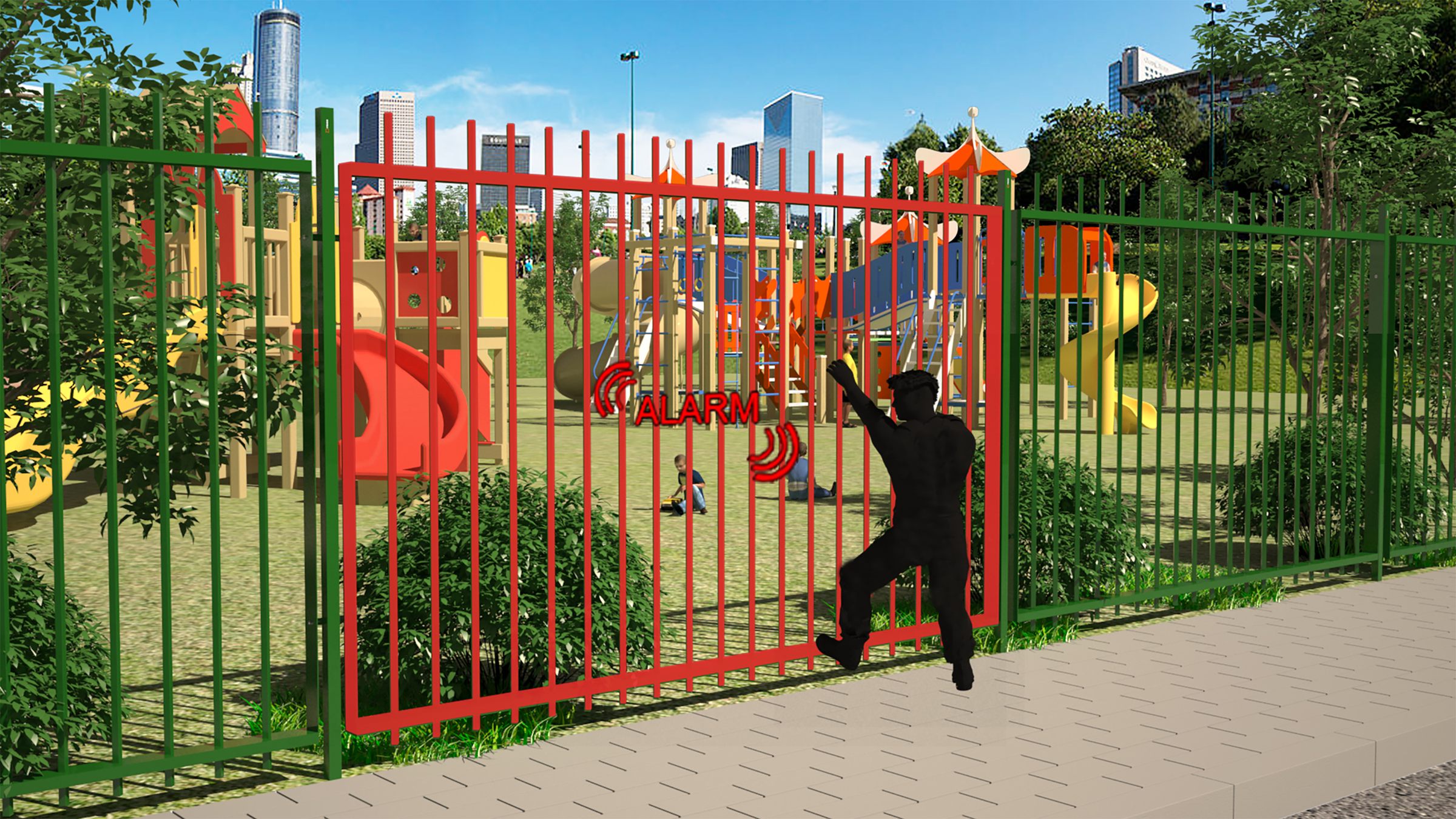

Render: an intruder climbing a playground fence turns the attacked D-Corative panel red and raises an alarm — **FIG. 06**Climb attempt: alarm on the exact panel

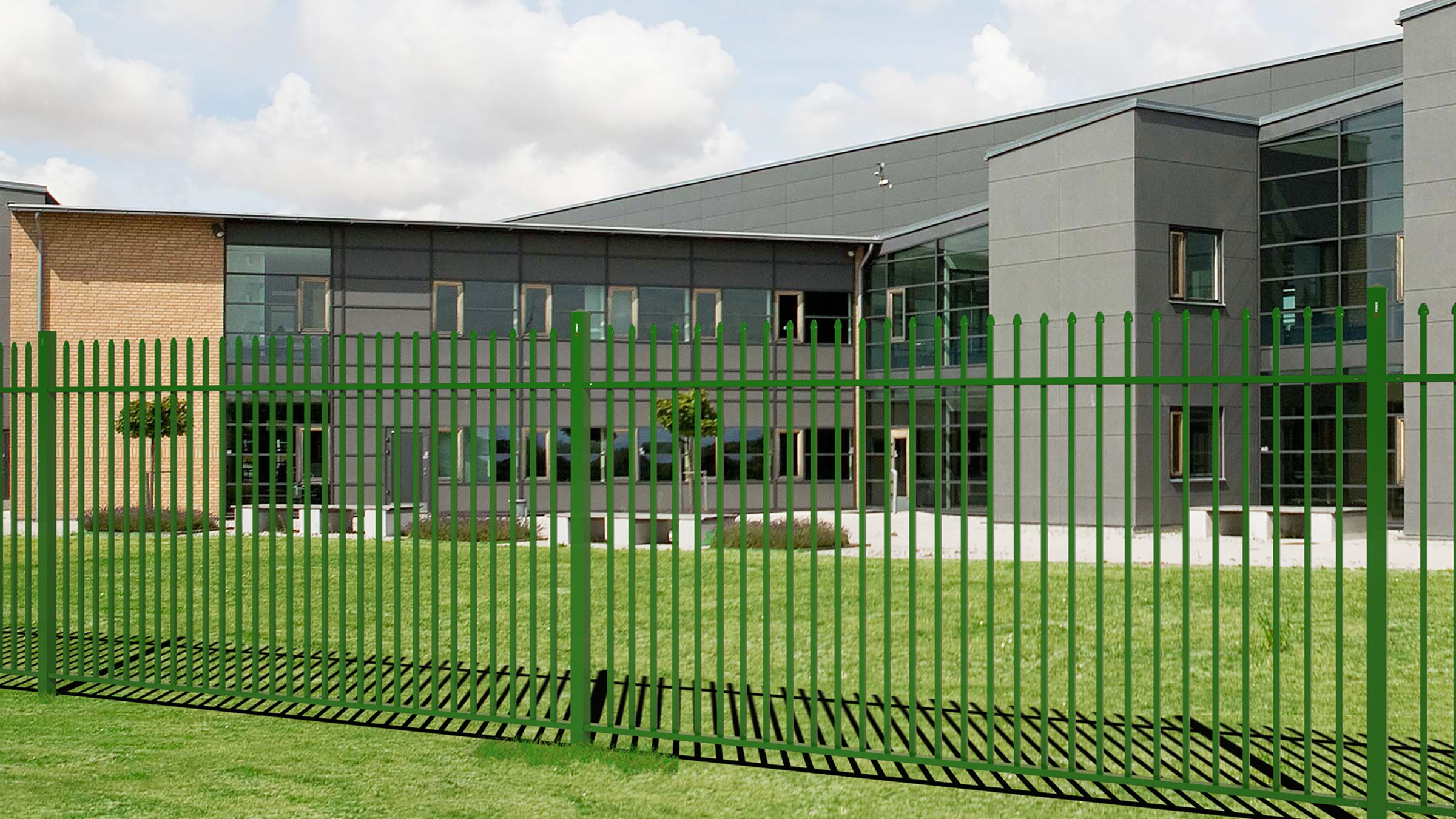

Render: green D-Corative fence along the lawn of a school or office campus — **FIG. 07**Campus perimeter

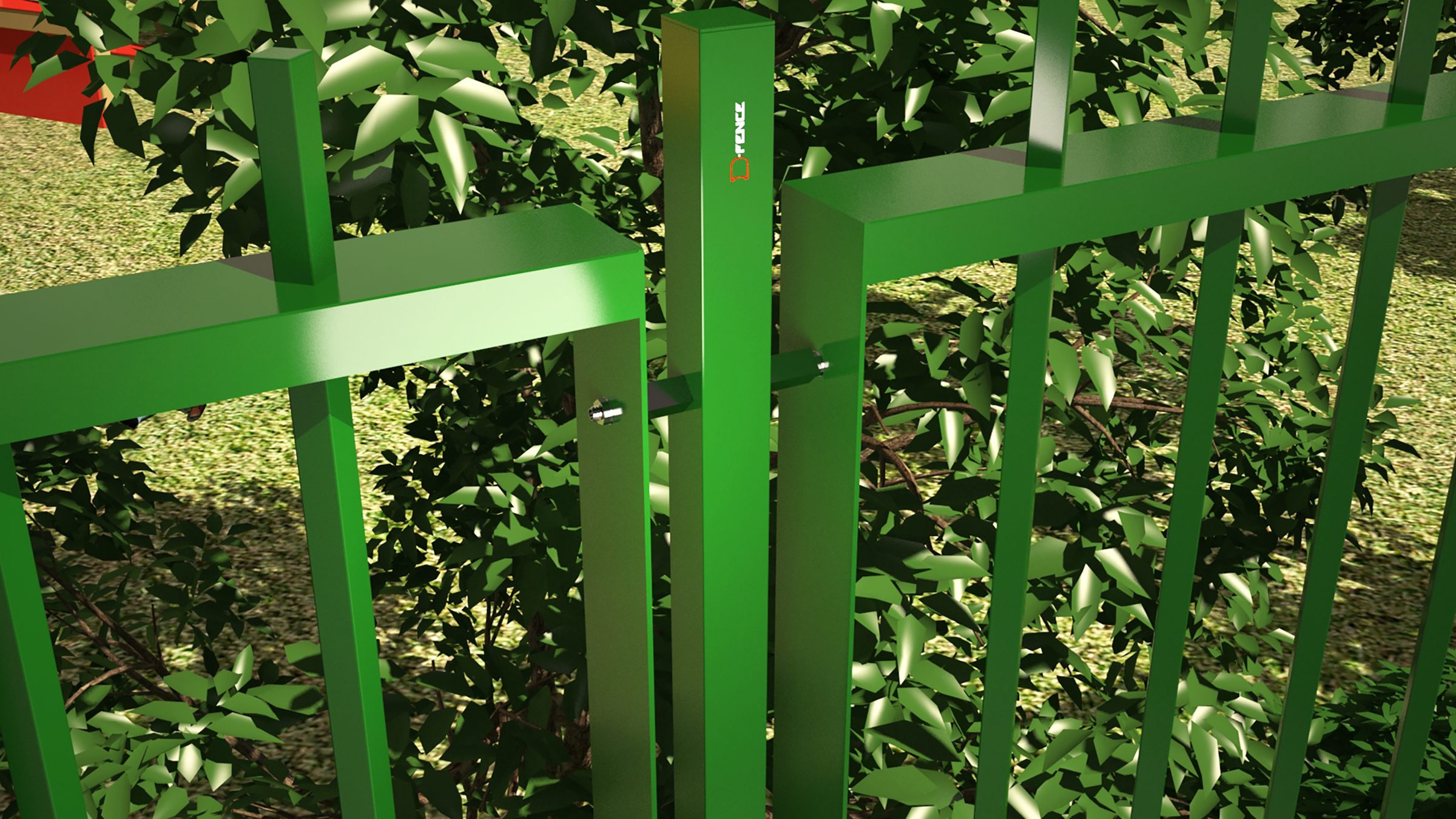

Render: close-up of a green D-Corative sensor post carrying two fence panels — **FIG. 08**Sensor post close-up

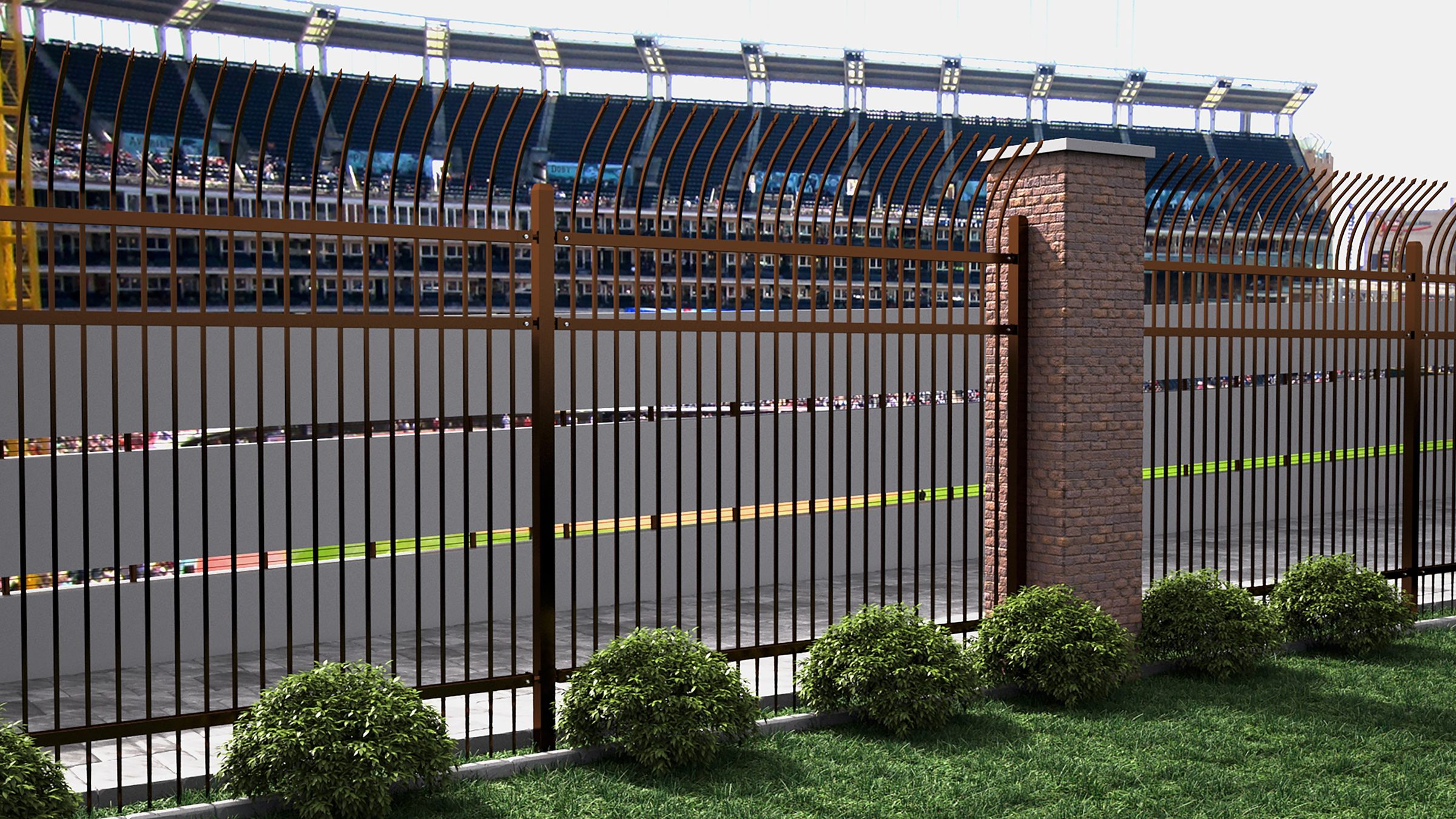

Render: D-Corative fence with curved tops and brick pillars around a stadium — **FIG. 09**Venue perimeter

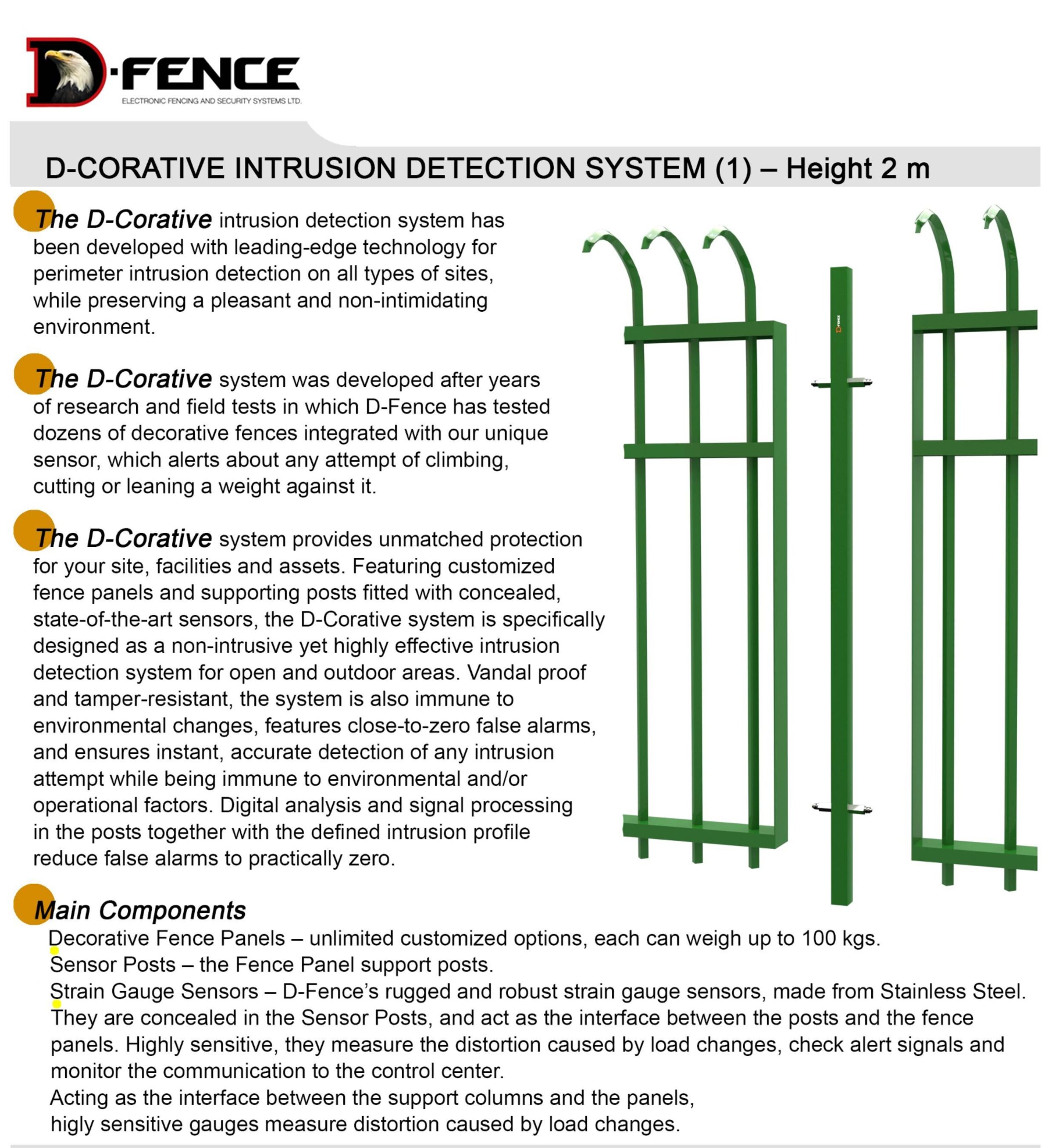

D-Corative catalogue page: system description, main components and a sensor post between two panels — **FIG. 10**Catalogue overview

See it work.

D-Corative · 0:19

D-Corative: climb test in the showroom

A climb on the D-Corative fence raises an alarm, and the camera feed comes up on the command-and-control screens at the same moment.

Specifications & documents.

SpecificationsD-Corative

Fence length: Unlimited
Zone length: 12–24 m
Panel (frame) weight: Up to 100 kg
Panel height and design: To customer specification (catalogue model: 2 m)
Sensor: Stainless-steel strain gauges concealed in the sensor posts
Sensor post section: 60 × 60 mm (2 m model)
Minimum trigger force: 25 kg above the static weight of the panel
Dry contact: N.O. & N.C., 1 A @ 48 VDC
Power: 12 mA @ 48 VDC
Communication: RS232 serial interface
Operating temperature: −25 °C to +72 °C (−13 °F to 162 °F)
Storage temperature: −55 °C to +80 °C (−67 °F to 176 °F)
Humidity: 95%
Corrosion: Anti-corrosion treatment to MIL T 152; all parts stainless steel
Lightning and electronic transients: MIL STD 9094
EMI / RFI: MIL STD 461, 462
False alarm rate (catalogue): Less than 1 per km per 3 months (maximum)
MTTR: 30 min
Warranty: 10 years on the sensors

Specification text, ready for your tender.

Copy it into your specification. It describes the system by what it must do, so any alternative has to meet every point.

D-CorativeTender specification textDatasheet

General
The system shall be D-Corative by D-FENCE Electronic Fencing and Security Systems Ltd. (ISO 9001:2015 certified quality management), or an approved equivalent that meets every requirement in this section.
Function
Ornamental fence panels on sensor posts that alarm on any climb, cut or leaning weight: high security that still looks welcoming.
The system shall provide
- Concealed sensors: Stainless-steel strain gauges sit inside the sensor posts, between post and panel.
- Your design, your material: Panels are made to your design in steel, stainless steel, iron or wood, each up to 100 kg.
- Climb, cut or lean: Alarms on climbing, on cutting and on a weight leaned against the fence.
- Processing in the post: Digital analysis against a defined intrusion profile minimizes false alarms.
- Vandal-proof: Tamper-resistant and unaffected by environmental changes.
- Open integration: Dry contact and RS232 to CCTV, alarm panels, smart-home systems, SMS and the control room.
Technical requirements
- Fence length: Unlimited
- Zone length: 12–24 m
- Panel (frame) weight: Up to 100 kg
- Panel height and design: To customer specification (catalogue model: 2 m)
- Sensor: Stainless-steel strain gauges concealed in the sensor posts
- Sensor post section: 60 × 60 mm (2 m model)
- Minimum trigger force: 25 kg above the static weight of the panel
- Dry contact: N.O. & N.C., 1 A @ 48 VDC
- Power: 12 mA @ 48 VDC
- Communication: RS232 serial interface
- Operating temperature: −25 °C to +72 °C (−13 °F to 162 °F)
- Storage temperature: −55 °C to +80 °C (−67 °F to 176 °F)
- Humidity: 95%
- Corrosion: Anti-corrosion treatment to MIL T 152; all parts stainless steel
- Lightning and electronic transients: MIL STD 9094
- EMI / RFI: MIL STD 461, 462
- False alarm rate (catalogue): Less than 1 per km per 3 months (maximum)
- MTTR: 30 min
- Warranty: 10 years on the sensors
Detection sequence
1. Sensor posts: Concealed stainless-steel strain gauges carry each decorative panel.
2. Load change: A climb, a cut or a leaning weight changes the load on the post.
3. Processing in the post: Digital analysis checks the signal against the intrusion profile.
4. Zone alarm out: Dry contact or RS232 to the control computer, CCTV, siren, smart-home system or SMS.
Submittals
Before installation, the contractor shall submit the manufacturer's datasheet, the installation instructions and the zone layout for approval.

D-Corative | Tender specification text

1. General
The system shall be D-Corative by D-FENCE Electronic Fencing and Security Systems Ltd. (ISO 9001:2015 certified quality management), or an approved equivalent that meets every requirement in this section.

2. Function
Ornamental fence panels on sensor posts that alarm on any climb, cut or leaning weight: high security that still looks welcoming.

3. The system shall provide
- Concealed sensors: Stainless-steel strain gauges sit inside the sensor posts, between post and panel.
- Your design, your material: Panels are made to your design in steel, stainless steel, iron or wood, each up to 100 kg.
- Climb, cut or lean: Alarms on climbing, on cutting and on a weight leaned against the fence.
- Processing in the post: Digital analysis against a defined intrusion profile minimizes false alarms.
- Vandal-proof: Tamper-resistant and unaffected by environmental changes.
- Open integration: Dry contact and RS232 to CCTV, alarm panels, smart-home systems, SMS and the control room.

4. Technical requirements
- Fence length: Unlimited
- Zone length: 12–24 m
- Panel (frame) weight: Up to 100 kg
- Panel height and design: To customer specification (catalogue model: 2 m)
- Sensor: Stainless-steel strain gauges concealed in the sensor posts
- Sensor post section: 60 × 60 mm (2 m model)
- Minimum trigger force: 25 kg above the static weight of the panel
- Dry contact: N.O. & N.C., 1 A @ 48 VDC
- Power: 12 mA @ 48 VDC
- Communication: RS232 serial interface
- Operating temperature: −25 °C to +72 °C (−13 °F to 162 °F)
- Storage temperature: −55 °C to +80 °C (−67 °F to 176 °F)
- Humidity: 95%
- Corrosion: Anti-corrosion treatment to MIL T 152; all parts stainless steel
- Lightning and electronic transients: MIL STD 9094
- EMI / RFI: MIL STD 461, 462
- False alarm rate (catalogue): Less than 1 per km per 3 months (maximum)
- MTTR: 30 min
- Warranty: 10 years on the sensors

5. Detection sequence
5.1 Sensor posts: Concealed stainless-steel strain gauges carry each decorative panel.
5.2 Load change: A climb, a cut or a leaning weight changes the load on the post.
5.3 Processing in the post: Digital analysis checks the signal against the intrusion profile.
5.4 Zone alarm out: Dry contact or RS232 to the control computer, CCTV, siren, smart-home system or SMS.

6. Submittals
Before installation, the contractor shall submit the manufacturer's datasheet, the installation instructions and the zone layout for approval.
