The threat · Fence cut or climbed without anyone knowing?

D-Taut Wire

Name: D-Taut Wire
Brand: D-FENCE

Sensor posts tension the wires and pinpoint any cut, climb or spread, on a new fence, a wall or an existing one.

Patent pending

15 kg deflection alarmZones up to 100 mUp to 32 sensors per unit

Discuss your project Catalog

For integrators & consultants

L3LayerThe perimeter line

DatasheetPDF · 295 KB Tender specification textCopy text

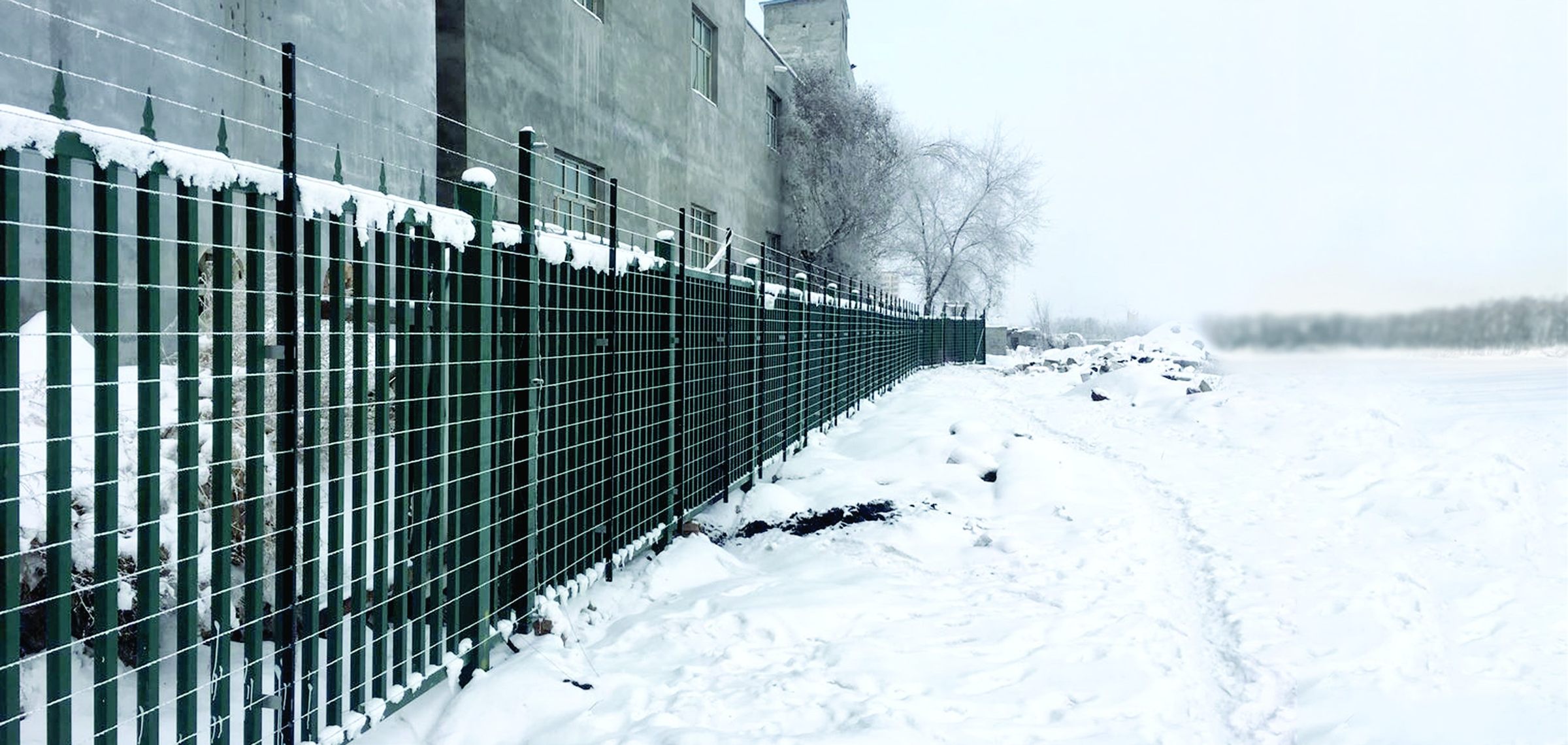

Green palisade fence topped with taut wires along the outer perimeter of a military camp in deep snow

Cut, climb or spread: the wire reports it.

D-Taut Wire combines tensioned wire with D-FENCE strain-gauge sensor posts. It is a physical barrier and an electronic detection line in one, installed around airports, prisons, borders, nuclear plants and other high-sensitivity sites.

Pinpoints the attempt

Each sensor zone reports on its own, so the control room sees exactly where the wire was cut, climbed or spread.

Upgrades what you have

Mounts on palisade, welded mesh, chain link, concertina or walls, or stands alone as the fence.

Weather is not a trigger

A 15 kg deflection threshold ignores wind, plants and small animals; no pre-emptive maintenance is needed.

It mounts three ways: on top of an existing fence with outriggers against climbing, over the full height of a fence against cutting, or as the fence itself. The wires attach to the sensors on the posts, and any cut, climb or spread changes the tension and raises the alarm.

It runs on airport perimeter walls in South Korea, on military-camp perimeters in deep snow and along private garden walls.

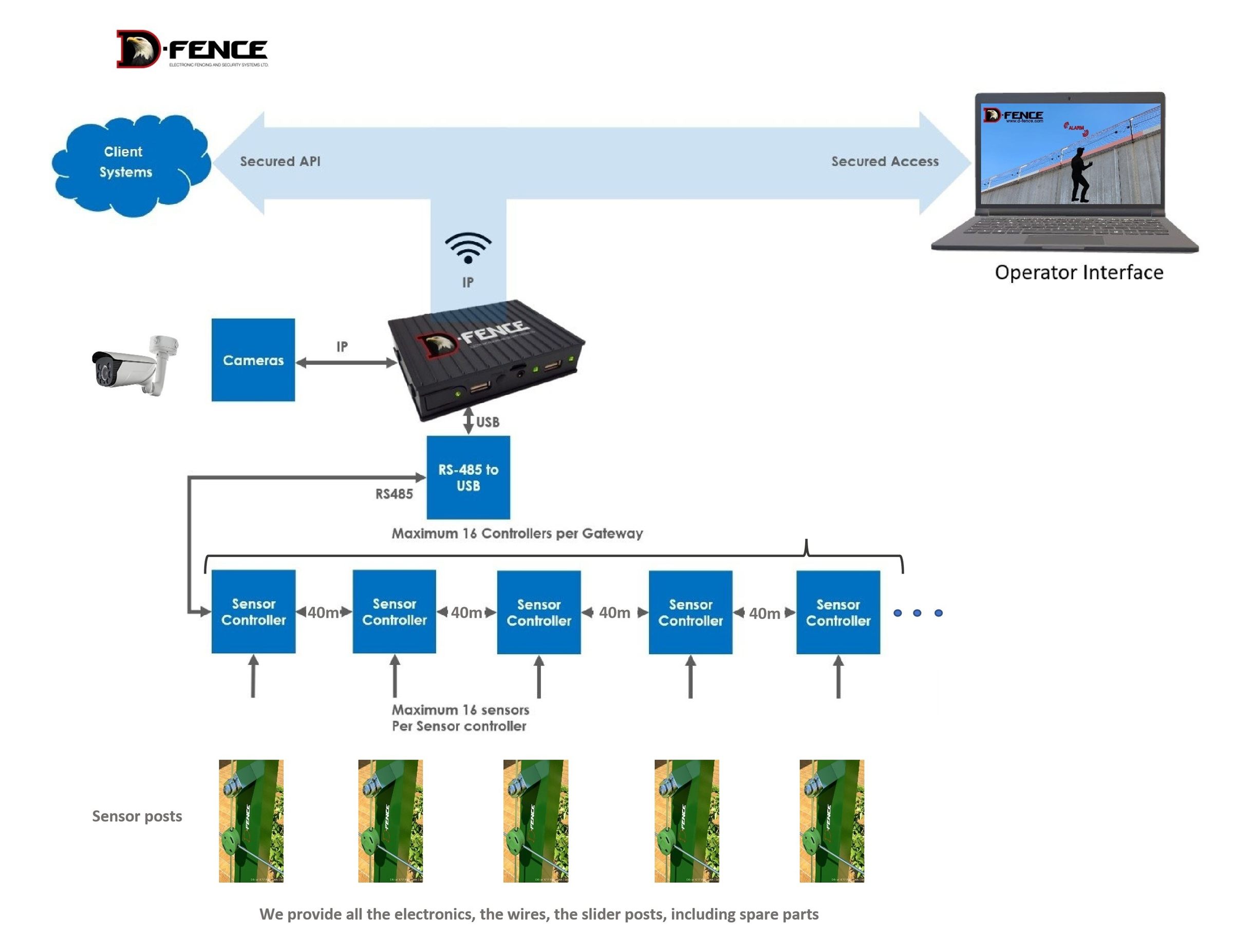

From the first touch to the right response.

Tensioned wires
Regular, braided, barbed or aircraft wire is tensioned to the sensor posts.
Sensor posts
Strain-gauge sensors feel any cut, climb or spread; 15 kg and above triggers an alarm.
Zone controllers
Sensor controllers along the line report each zone of up to 100 m.
Gateway and API
RS485 to the D-FENCE gateway, then IP to cameras, client systems and the operator screen.
Response
The operator sees the exact zone, with the nearest camera on screen.

Seen in full.

Every image opens full size. Product sheets are shown whole, exactly as D-FENCE publishes them.

Angled outriggers carrying tensioned wires along the perimeter wall of Yang Yang International Airport, patrol road and lighting poles beside it — **FIG. 01**Yang Yang International Airport, South Korea

Render: taut-wire fence on sensor posts in front of a refinery — **FIG. 02**Oil and gas perimeter

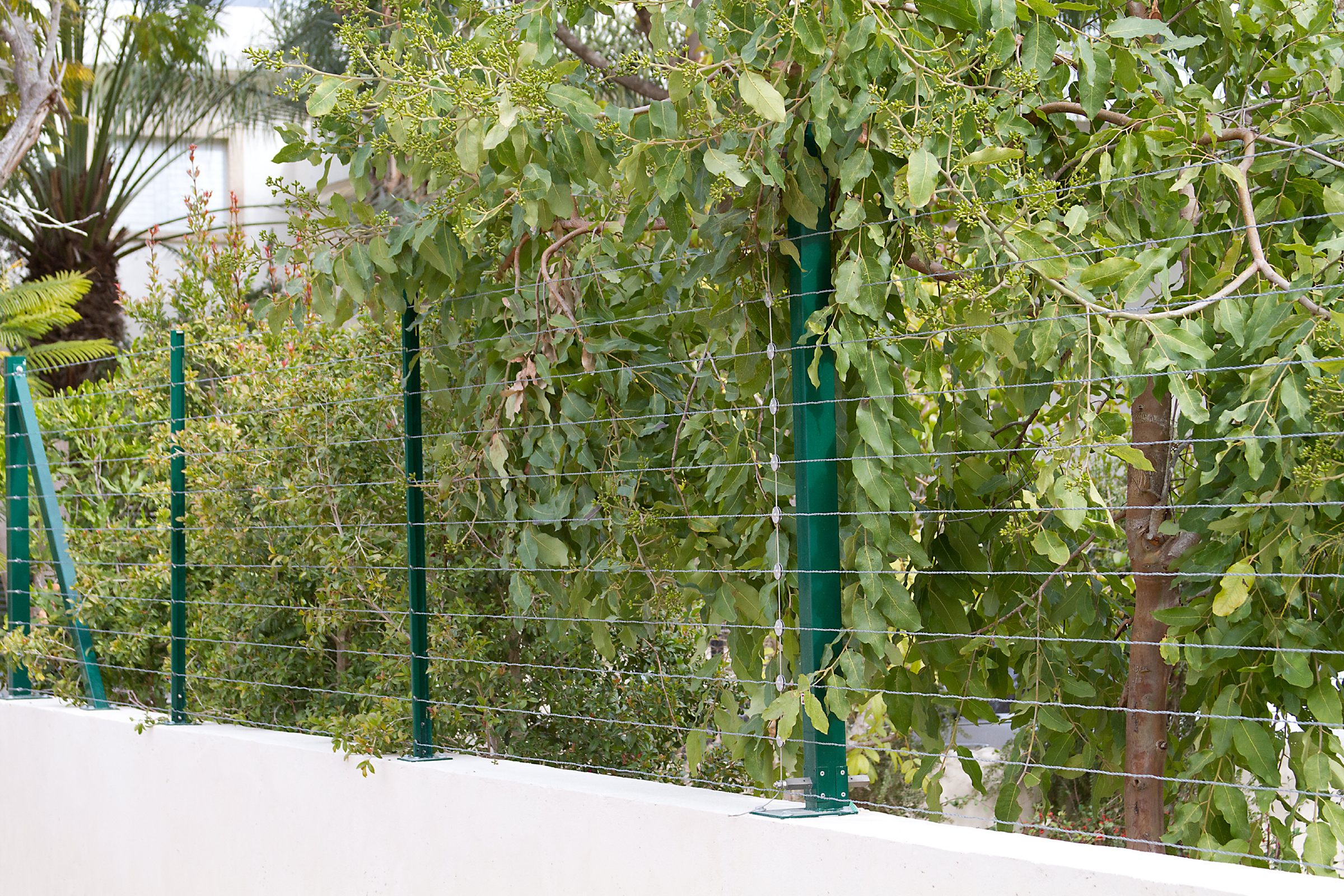

Taut wires on green sensor posts along a white garden wall, planting behind — **FIG. 03**Private garden wall

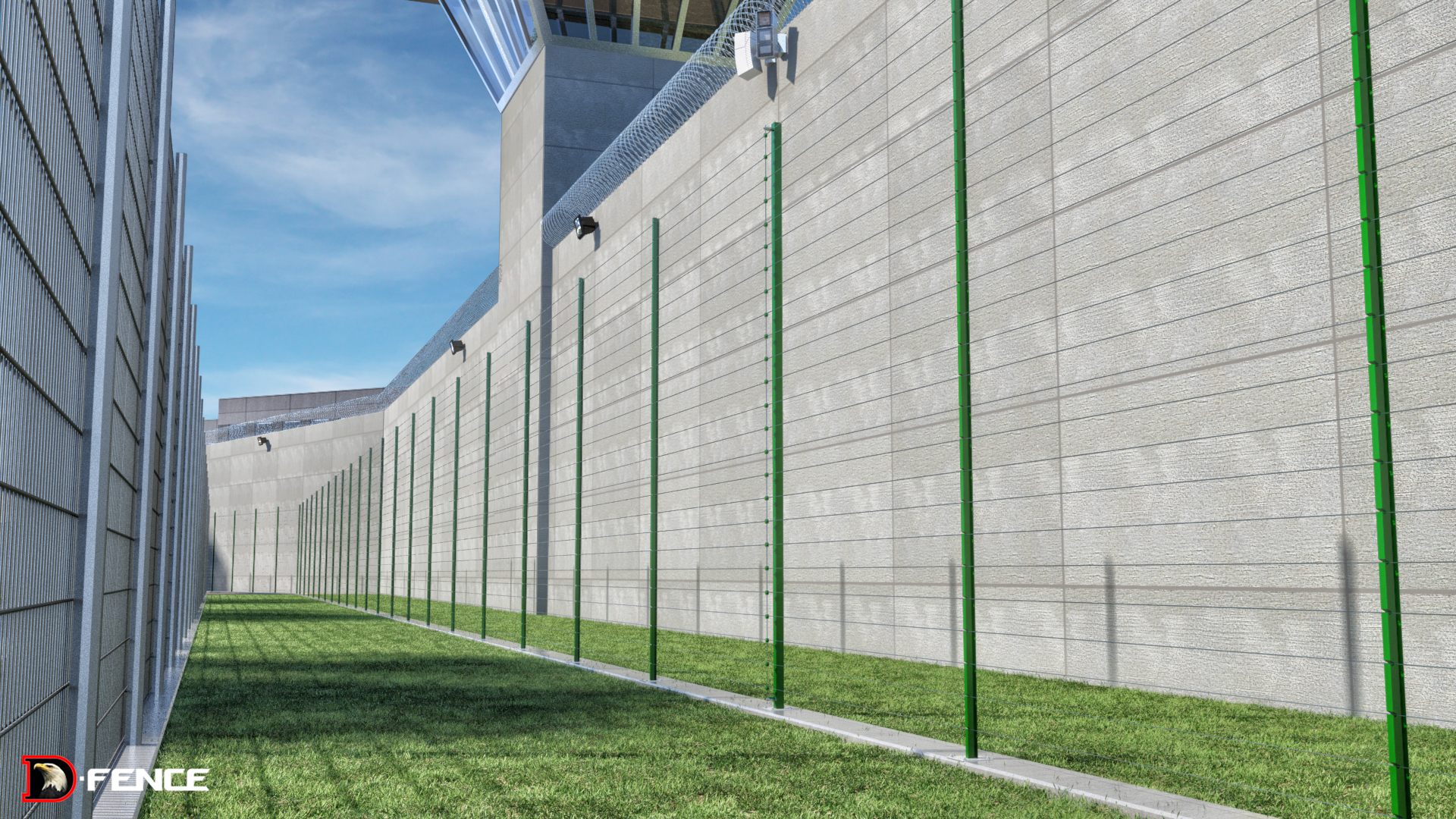

Render: free-standing taut-wire detection fence in the sterile zone between a prison wall and an inner fence — **FIG. 04**Sterile zone, correctional facility

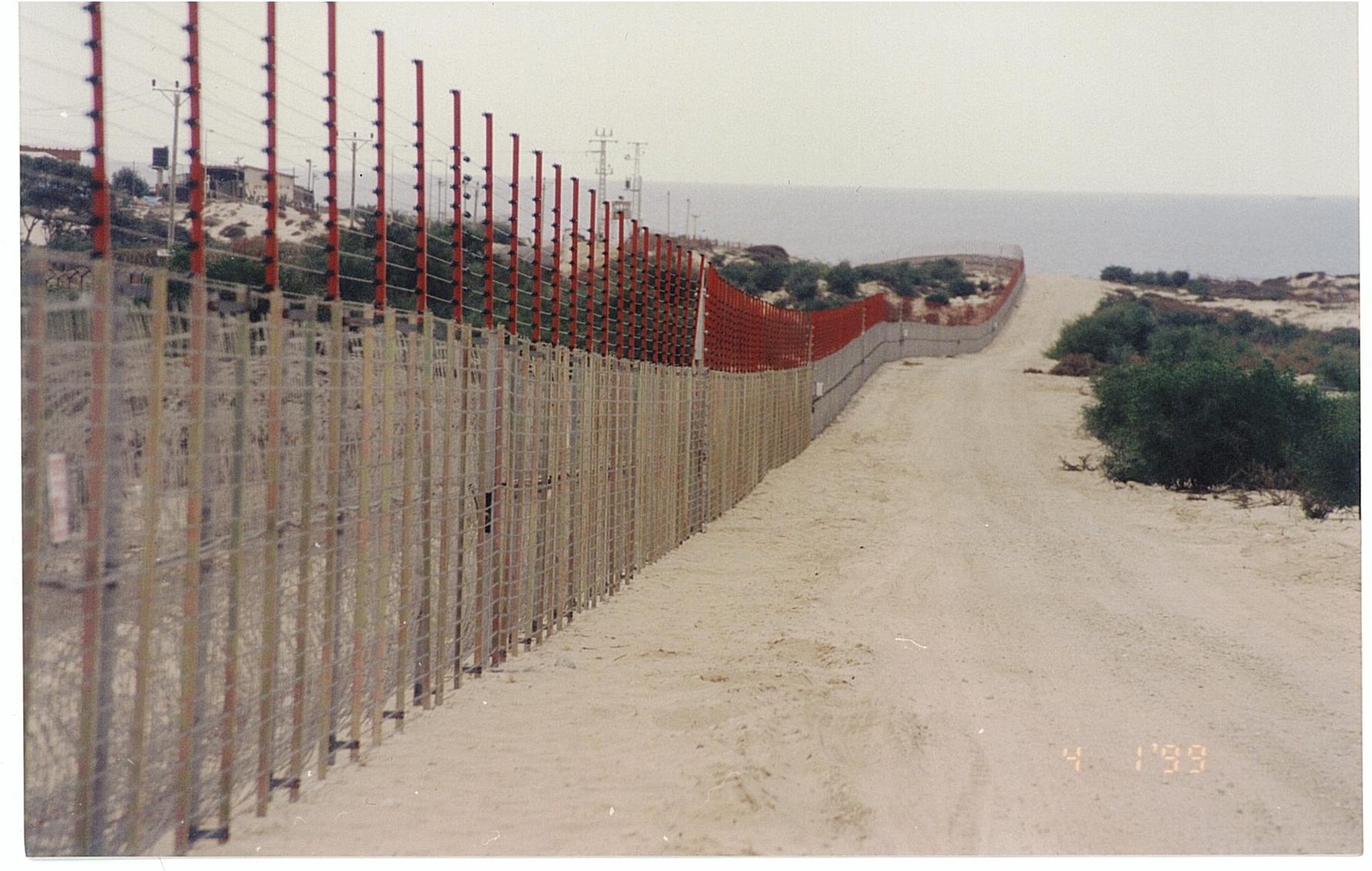

Archive photo, 1999: long taut-wire border fence with red-topped posts beside a sandy patrol road by the sea — **FIG. 05**Border line, archive 1999

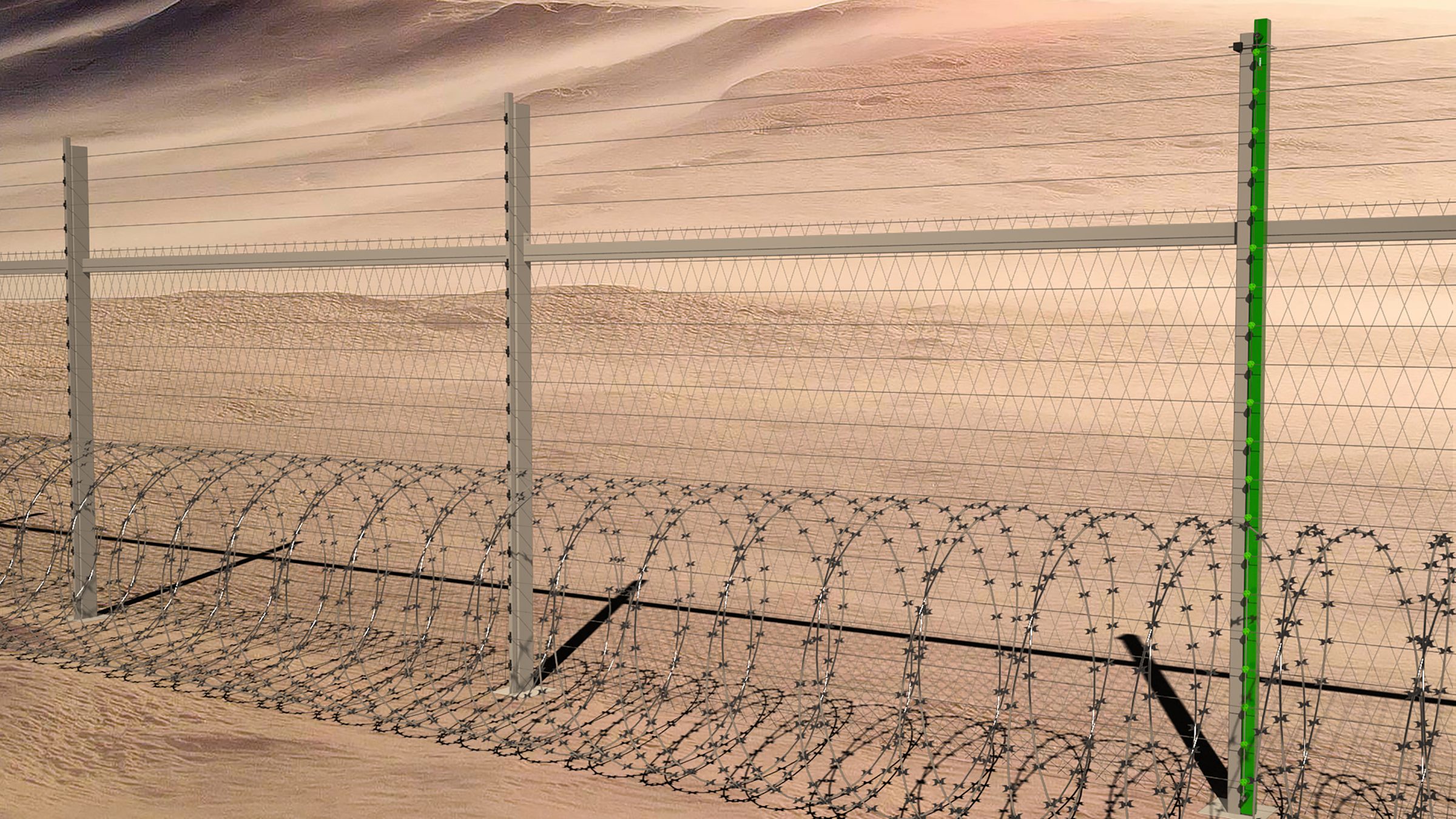

Render: taut-wire fence with a concertina coil behind it across desert sand — **FIG. 06**Taut wire with a concertina layer

Horizontal taut wires and sensor posts added to an existing concrete-slat railway fence — **FIG. 07**Retrofit on an existing railway fence

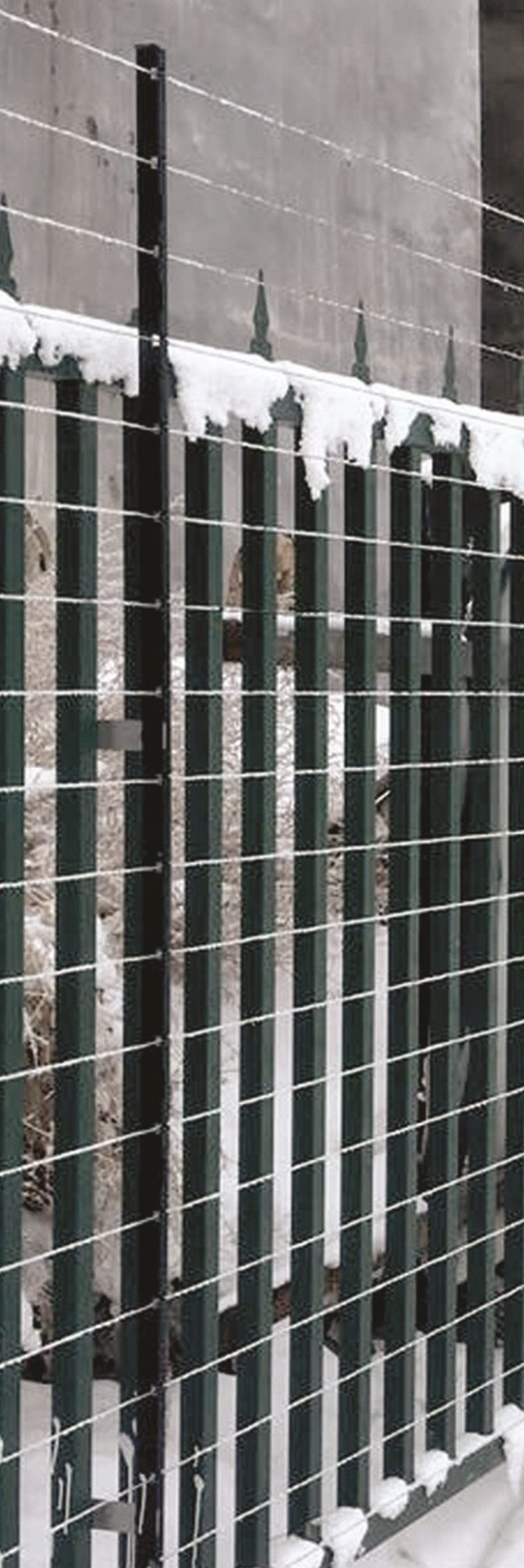

Close-up of a taut-wire sensor post and wires on a snowy green palisade — **FIG. 08**Detection that keeps working in deep snow

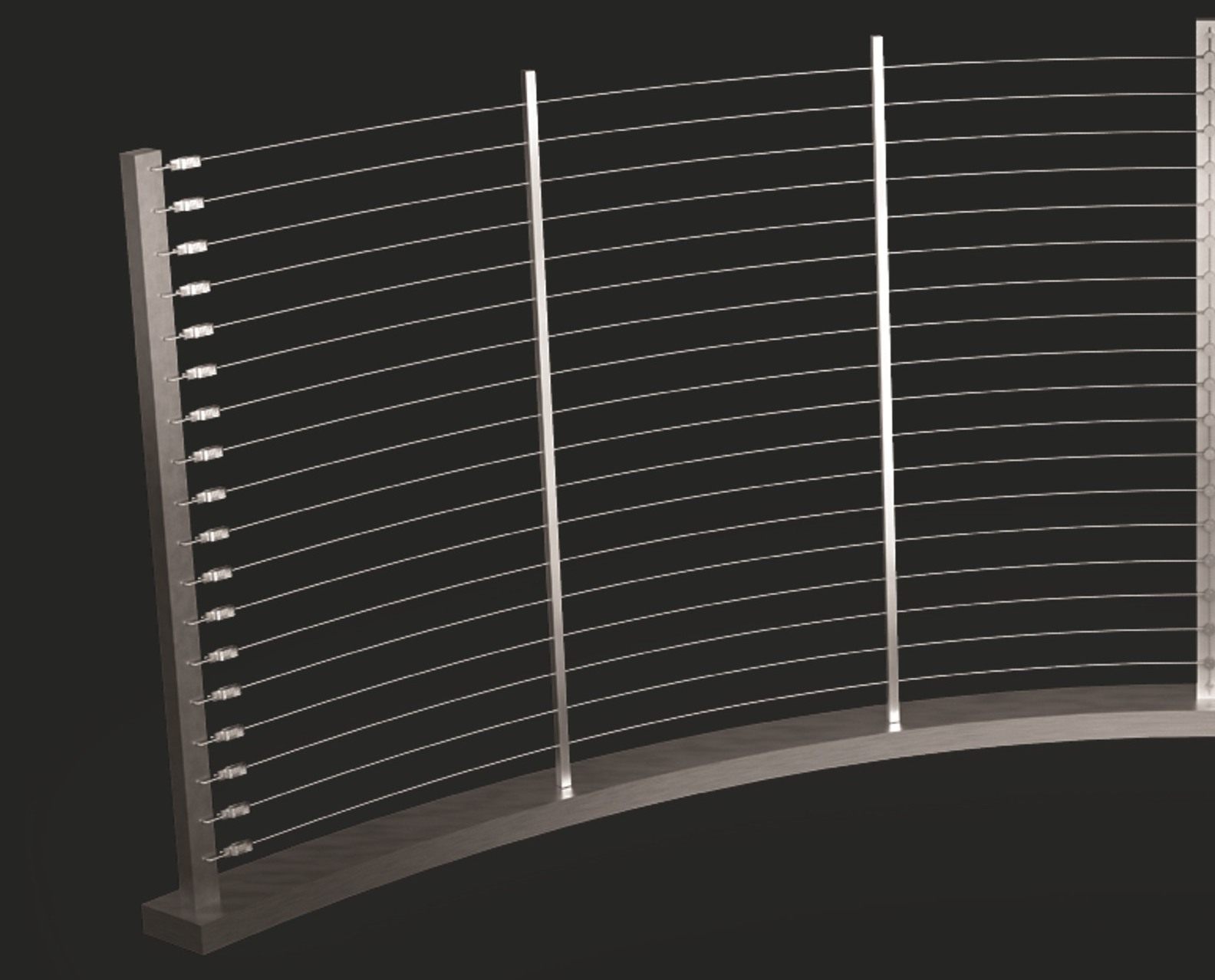

Render: curved stainless taut-wire fence with tensioners on the end post, dark background — **FIG. 09**Residential line, custom colours

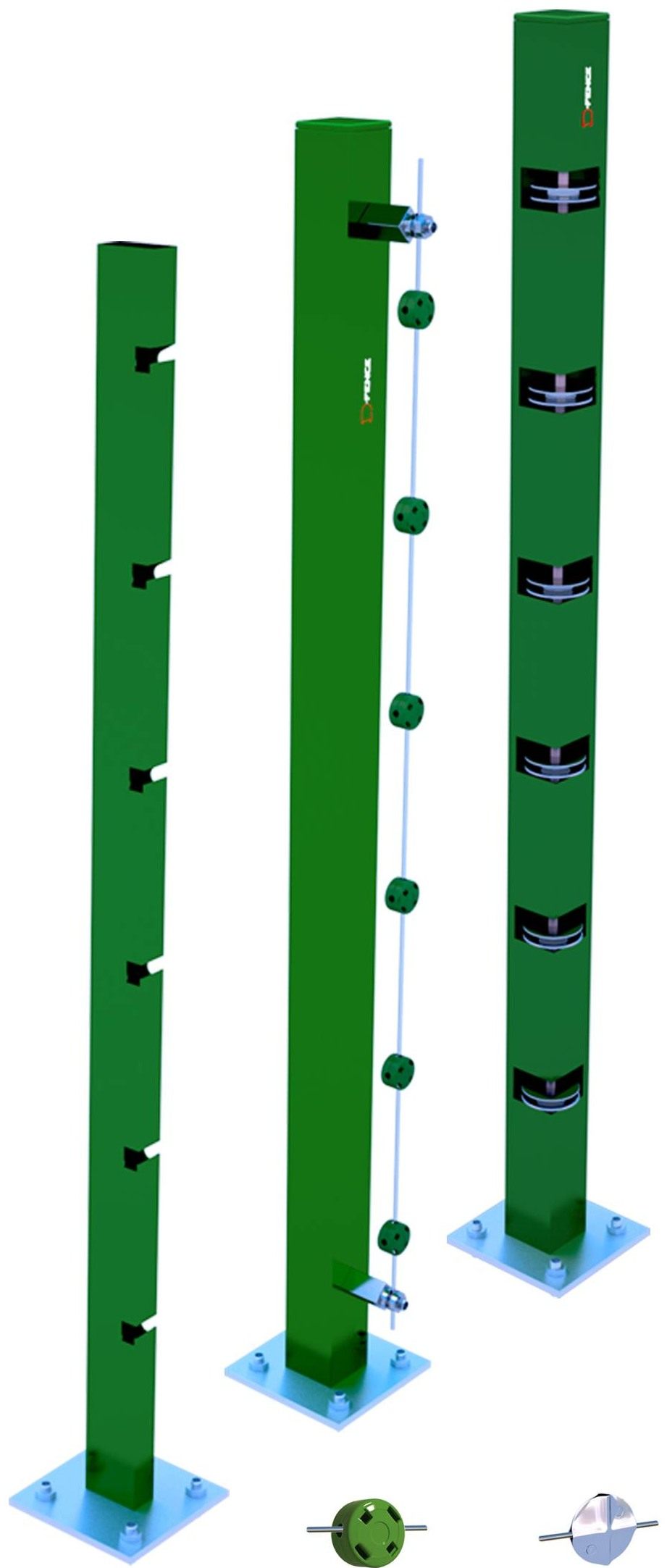

Three green D-Taut Wire sensor and slider posts on base plates, white background — **FIG. 10**Sensor and slider posts, 50 cm

Specifications & documents.

SpecificationsD-Taut Wire

Sensor post: Height 50 cm (slider post 500 mm), section 50 × 50 mm
Wire spacing: 120 mm between wires
Wire types: Regular, double-braided, barbed or aircraft wire
Fence length: No fixed limit (practical limitation)
Fence height: According to customer specification
Length of system zone: Not exceeding 100 m
Unit dimensions: 250 × 55 × 25 mm, 200 g
Processing unit: Up to 32 sensors
Deflection force: 15 kg and above activates the alarm
Dry contact: N.O. & N.C. 1 A @ 48 VDC
Power supply: 12 mA @ 48 VDC
Communication output: RS232
Operating temperature: +72 °C to −25 °C
Storage temperature: +80 °C to −32 °C
Humidity: 95 %
Corrosion: All parts treated to MIL T 152
Lightning & electronic transients: MIL STD 9094
EMI & RFI: MIL STD 461, 462
False alarm rate (catalogue): Less than 1 per km per 3 months
MTBF sensor: 4.7 × 10⁸ hours
MTTR: 30 minutes
Warranty: 10 years on the sensors

Specification text, ready for your tender.

Copy it into your specification. It describes the system by what it must do, so any alternative has to meet every point.

D-Taut WireTender specification textDatasheet

General
The system shall be D-Taut Wire by D-FENCE Electronic Fencing and Security Systems Ltd. (ISO 9001:2015 certified quality management), or an approved equivalent that meets every requirement in this section.
Function
Sensor posts tension the wires and pinpoint any cut, climb or spread, on a new fence, a wall or an existing one.
The system shall provide
- Barrier plus detection: A physical barrier and an electronic line that shows the exact point of an attempt.
- Three mountings: On top of a fence with outriggers, over its full height, or as the fence itself.
- Any wire: Regular, double-braided, barbed or aircraft wire; two parallel screens without extra posts.
- Quick retrofit: Palisade, welded mesh, chain link, concertina, power fence or walls.
- Self-adapting: Long intervals between field maintenance; withstands all environmental conditions.
- Custom colours: Height, length and colour to order for residential lines.
Technical requirements
- Sensor post: Height 50 cm (slider post 500 mm), section 50 × 50 mm
- Wire spacing: 120 mm between wires
- Wire types: Regular, double-braided, barbed or aircraft wire
- Fence length: No fixed limit (practical limitation)
- Fence height: According to customer specification
- Length of system zone: Not exceeding 100 m
- Unit dimensions: 250 × 55 × 25 mm, 200 g
- Processing unit: Up to 32 sensors
- Deflection force: 15 kg and above activates the alarm
- Dry contact: N.O. & N.C. 1 A @ 48 VDC
- Power supply: 12 mA @ 48 VDC
- Communication output: RS232
- Operating temperature: +72 °C to −25 °C
- Storage temperature: +80 °C to −32 °C
- Humidity: 95 %
- Corrosion: All parts treated to MIL T 152
- Lightning & electronic transients: MIL STD 9094
- EMI & RFI: MIL STD 461, 462
- False alarm rate (catalogue): Less than 1 per km per 3 months
- MTBF sensor: 4.7 × 10⁸ hours
- MTTR: 30 minutes
- Warranty: 10 years on the sensors
Detection sequence
1. Tensioned wires: Regular, braided, barbed or aircraft wire is tensioned to the sensor posts.
2. Sensor posts: Strain-gauge sensors feel any cut, climb or spread; 15 kg and above triggers an alarm.
3. Zone controllers: Sensor controllers along the line report each zone of up to 100 m.
4. Gateway and API: RS485 to the D-FENCE gateway, then IP to cameras, client systems and the operator screen.
5. Response: The operator sees the exact zone, with the nearest camera on screen.
Submittals
Before installation, the contractor shall submit the manufacturer's datasheet, the installation instructions and the zone layout for approval.

D-Taut Wire | Tender specification text

1. General
The system shall be D-Taut Wire by D-FENCE Electronic Fencing and Security Systems Ltd. (ISO 9001:2015 certified quality management), or an approved equivalent that meets every requirement in this section.

2. Function
Sensor posts tension the wires and pinpoint any cut, climb or spread, on a new fence, a wall or an existing one.

3. The system shall provide
- Barrier plus detection: A physical barrier and an electronic line that shows the exact point of an attempt.
- Three mountings: On top of a fence with outriggers, over its full height, or as the fence itself.
- Any wire: Regular, double-braided, barbed or aircraft wire; two parallel screens without extra posts.
- Quick retrofit: Palisade, welded mesh, chain link, concertina, power fence or walls.
- Self-adapting: Long intervals between field maintenance; withstands all environmental conditions.
- Custom colours: Height, length and colour to order for residential lines.

4. Technical requirements
- Sensor post: Height 50 cm (slider post 500 mm), section 50 × 50 mm
- Wire spacing: 120 mm between wires
- Wire types: Regular, double-braided, barbed or aircraft wire
- Fence length: No fixed limit (practical limitation)
- Fence height: According to customer specification
- Length of system zone: Not exceeding 100 m
- Unit dimensions: 250 × 55 × 25 mm, 200 g
- Processing unit: Up to 32 sensors
- Deflection force: 15 kg and above activates the alarm
- Dry contact: N.O. & N.C. 1 A @ 48 VDC
- Power supply: 12 mA @ 48 VDC
- Communication output: RS232
- Operating temperature: +72 °C to −25 °C
- Storage temperature: +80 °C to −32 °C
- Humidity: 95 %
- Corrosion: All parts treated to MIL T 152
- Lightning & electronic transients: MIL STD 9094
- EMI & RFI: MIL STD 461, 462
- False alarm rate (catalogue): Less than 1 per km per 3 months
- MTBF sensor: 4.7 × 10⁸ hours
- MTTR: 30 minutes
- Warranty: 10 years on the sensors

5. Detection sequence
5.1 Tensioned wires: Regular, braided, barbed or aircraft wire is tensioned to the sensor posts.
5.2 Sensor posts: Strain-gauge sensors feel any cut, climb or spread; 15 kg and above triggers an alarm.
5.3 Zone controllers: Sensor controllers along the line report each zone of up to 100 m.
5.4 Gateway and API: RS485 to the D-FENCE gateway, then IP to cameras, client systems and the operator screen.
5.5 Response: The operator sees the exact zone, with the nearest camera on screen.

6. Submittals
Before installation, the contractor shall submit the manufacturer's datasheet, the installation instructions and the zone layout for approval.
