The threat · Walls climbed without anyone noticing?

D-Tech

Name: D-Tech
Brand: D-FENCE

An ultra-slim pressure sensor hidden under wall copings, gates and floors: it reports the climb and leaves the design untouched.

Patented sensor (PCT · CN)

Strips up to 6 mCovers up to 350 kgZones up to 36 m

Discuss your project Catalog

For integrators & consultants

L6LayerThe building

DatasheetPDF · 327 KB Tender specification textCopy text

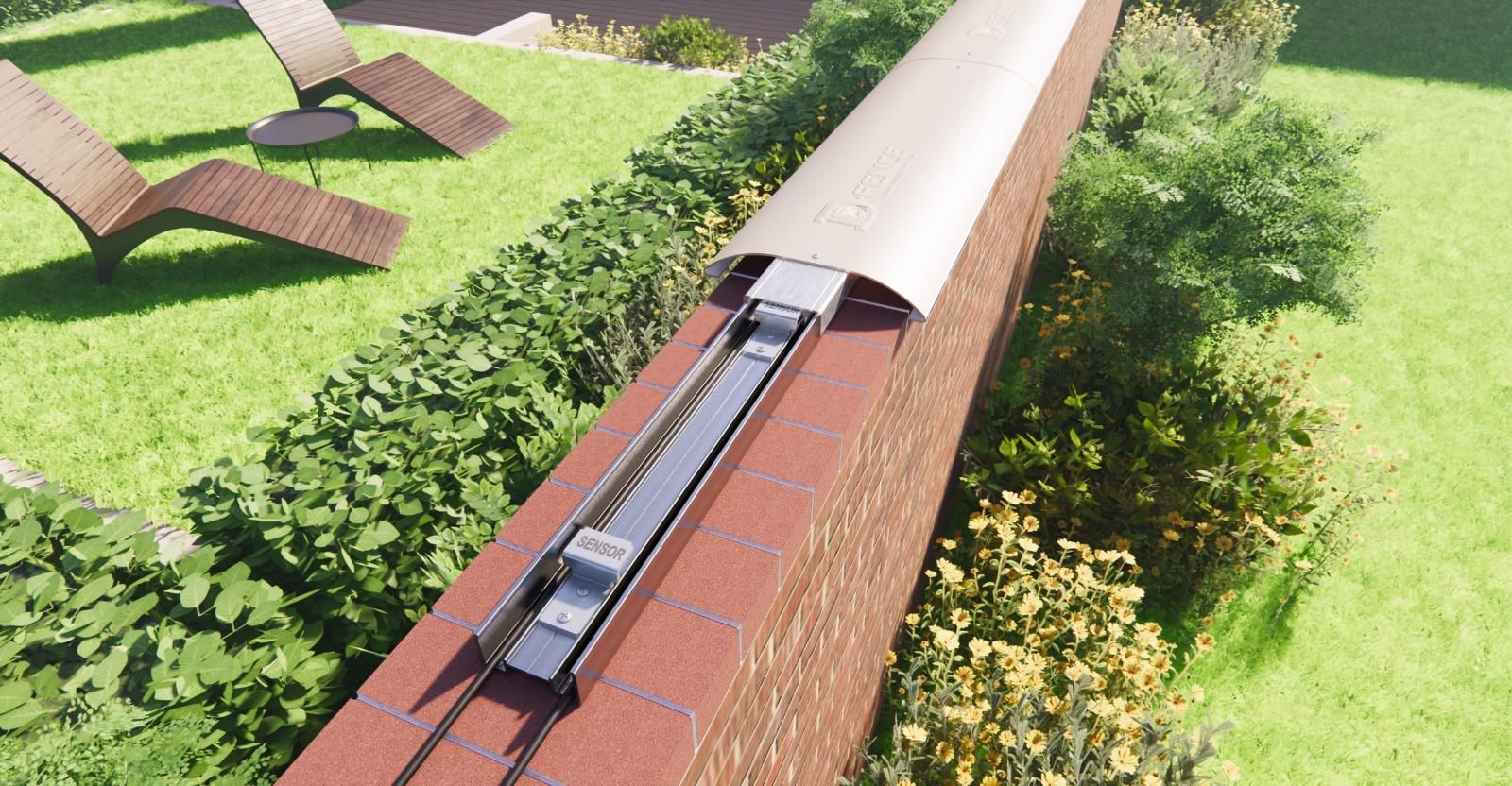

Garden wall with its coping lifted: the ultra-slim D-Tech pressure-sensor strip runs along the wall top, next to a lawn with sun loungers

The wall top that reports every climb.

D-Tech is the next generation of the D-FENCE pressure sensor: an ultra-slim strip that is installed covertly on walls, fences or the ground. On a wall it sits under a metal or stone coping that is made to your height, width, length and colour. The moment an intruder puts his weight on the wall top, the alarm is raised.

Invisible protection

The sensor hides under the finish, so the wall, gate or floor keeps its look.

Alarms on real intruders

It measures weight on the barrier; the catalogue false-alarm rate is less than 1 per km per 3 months.

One sensor, many surfaces

Wall tops, gates, decks, steps and interiors run on the same strip and controller.

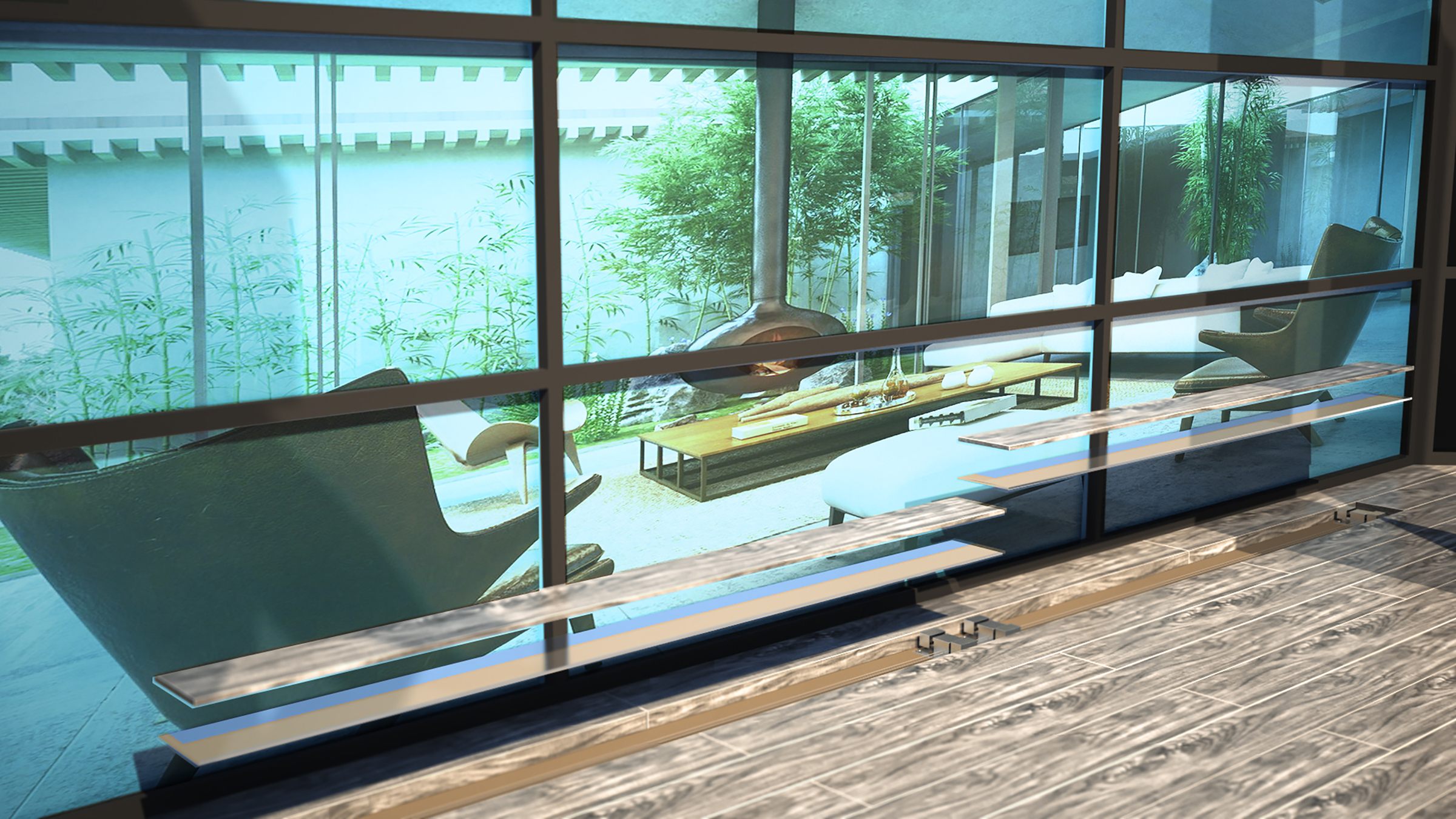

The same sensor goes where a fence cannot: under gate frames, and under decks, steps and floors, including the floor in front of a safe. Each strip is up to 6 m long and carries a cover of up to 350 kg; the alarm threshold is set about 15 kg above the static weight of the cover, so rain, wind and small animals stay below it.

D-Tech outputs a dry contact (N.O. / N.C.) and RS485 to the alarm panel, CCTV, siren, floodlight, mobile app or control room you already use, and into D-Command Control.

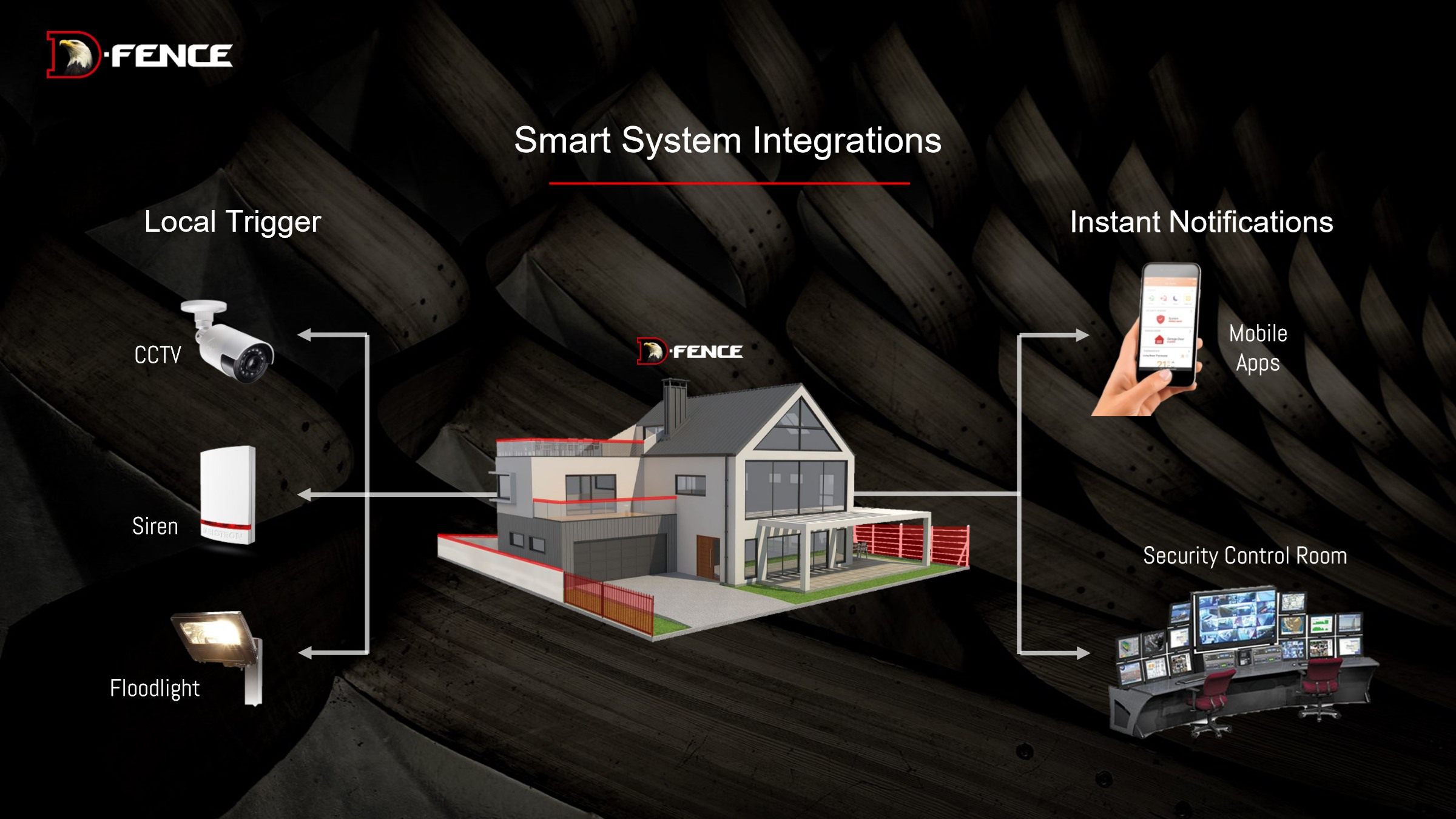

From the first touch to the right response.

Slim sensor
The D-Tech strip lies under the coping, gate frame or floor cover.
Weight on the cover
A climber adds load; about 15 kg above the cover weight triggers the alarm.
Controller
The processor sends a dry contact (N.O. / N.C.) or RS485 message.
Local response
CCTV, siren and floodlight are triggered on site.
Notification
The mobile app, the security control room and D-Command Control receive the event.

Seen in full.

Every image opens full size. Product sheets are shown whole, exactly as D-FENCE publishes them.

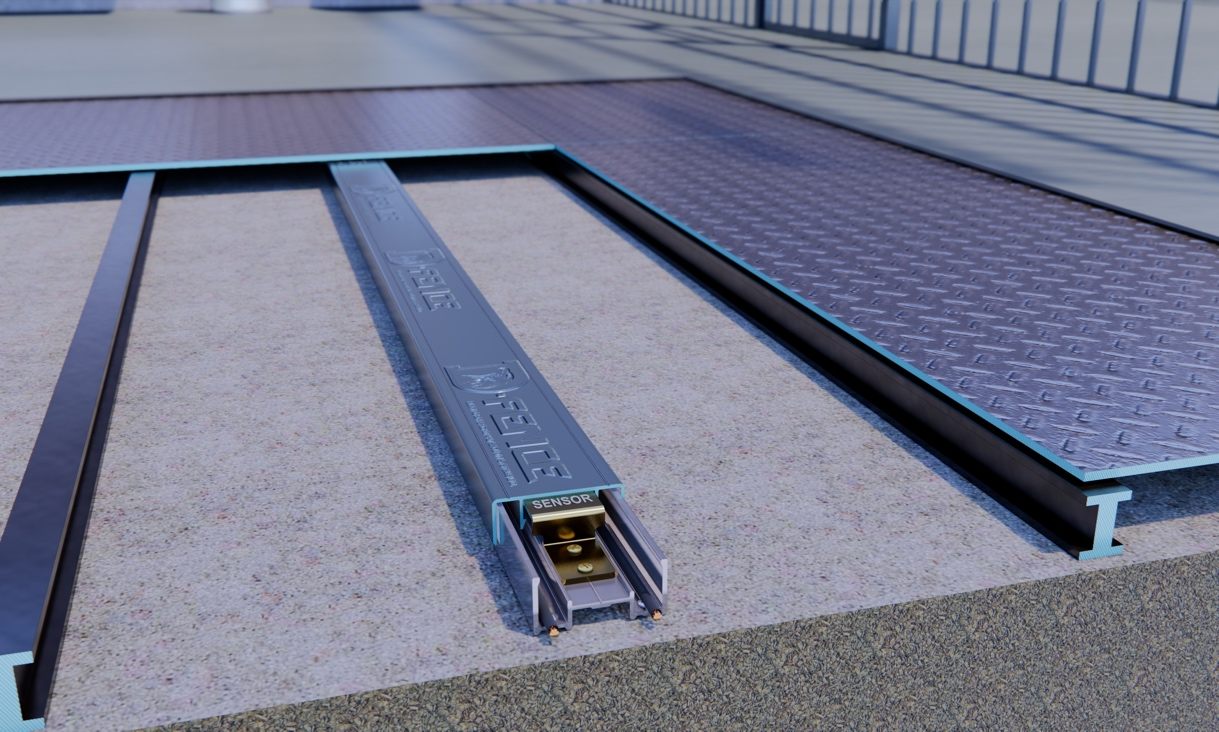

Close render of the ultra-slim D-Tech sensor channel, marked D-FENCE and SENSOR, set into the ground under chequer-plate floor panels — **FIG. 01**The ultra-slim D-Tech channel under a steel floor.

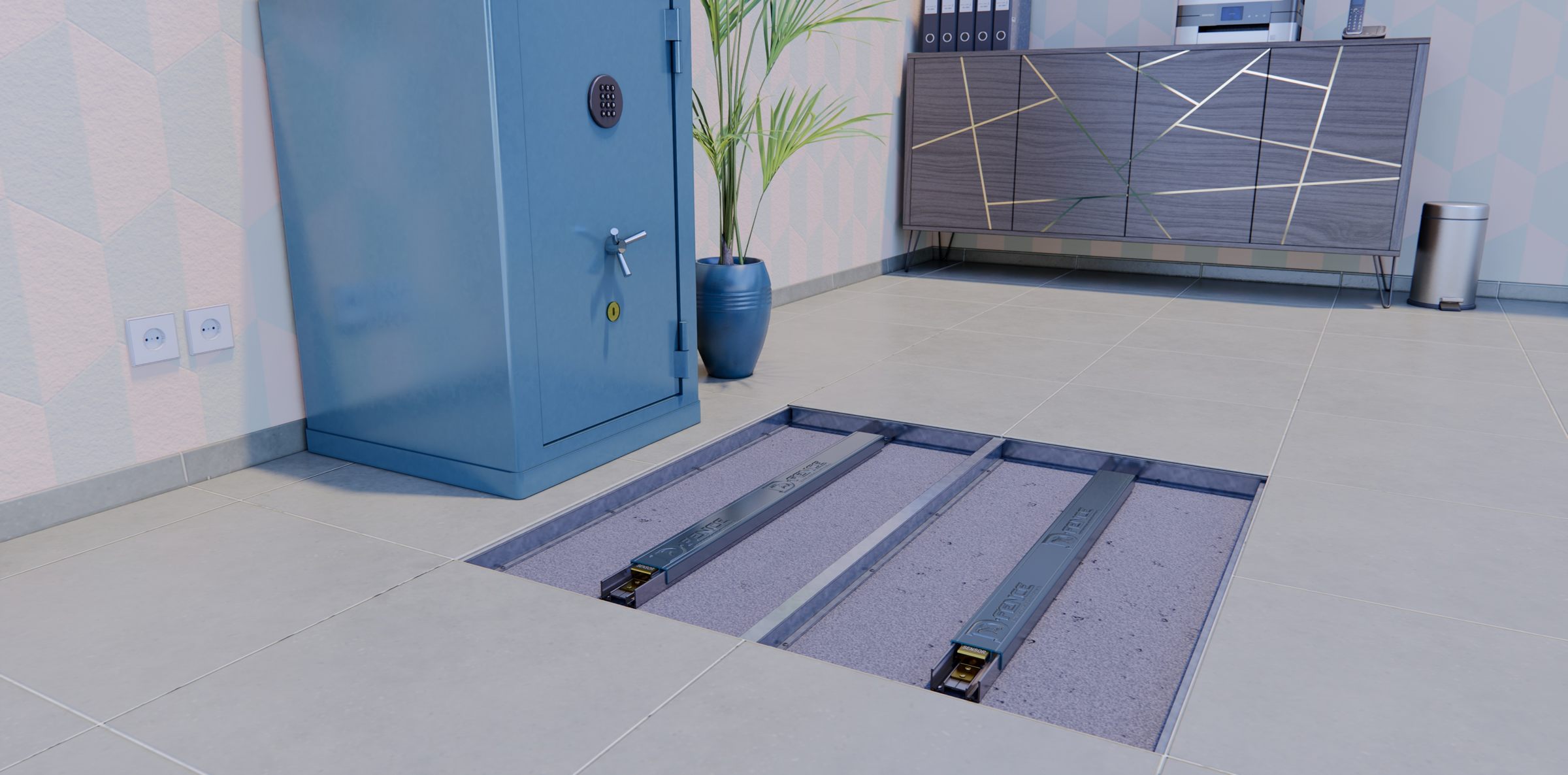

Office with a safe: floor tiles lifted in front of it to show two D-FENCE sensor strips on rails beneath — **FIG. 02**Under the tiles in front of the safe: anyone who steps up is reported.

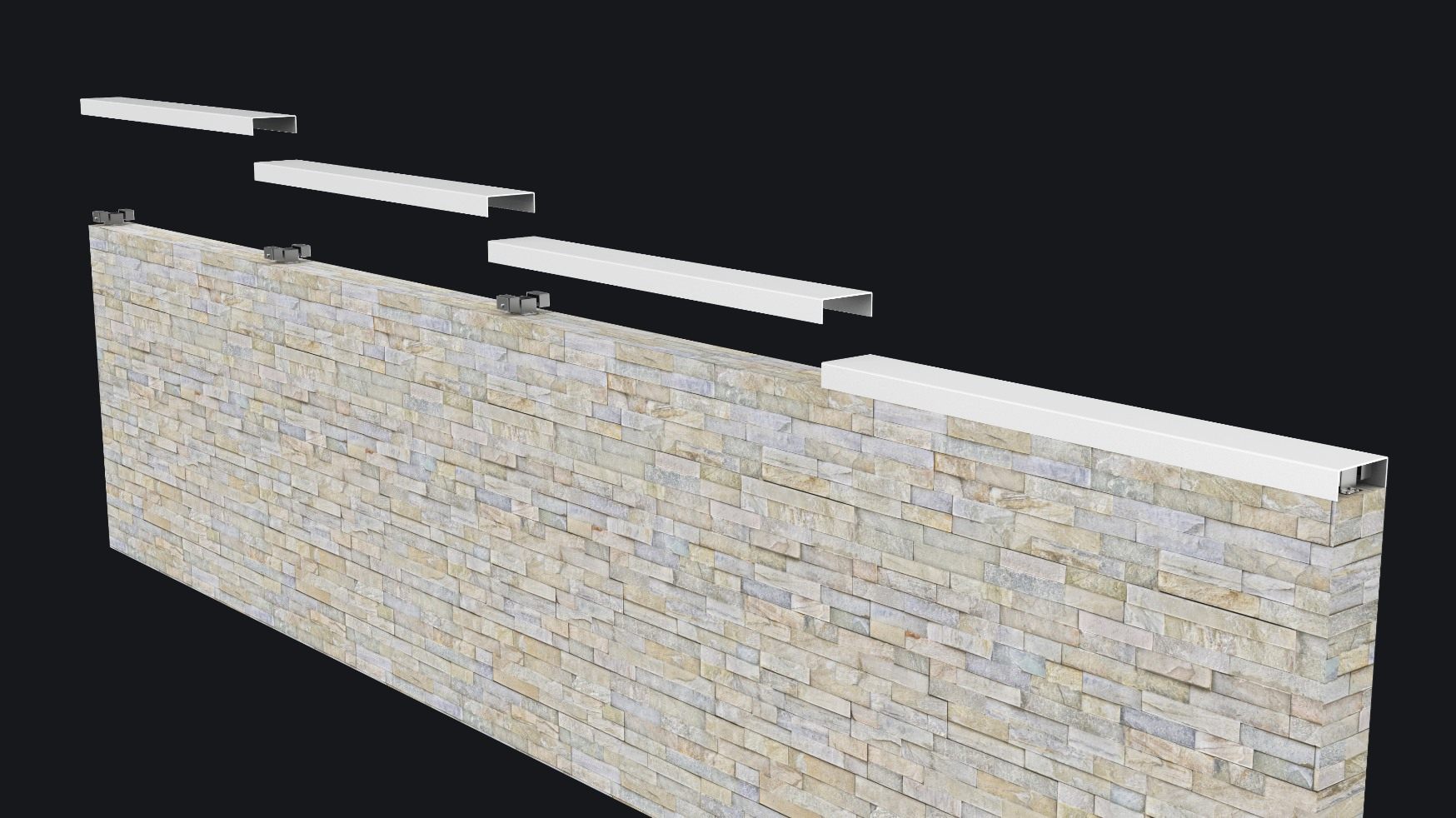

Exploded render of a stone-clad wall with white coping sections lifted to show the pressure sensors on the wall top — **FIG. 03**Pressure sensors under a metal or stone coping.

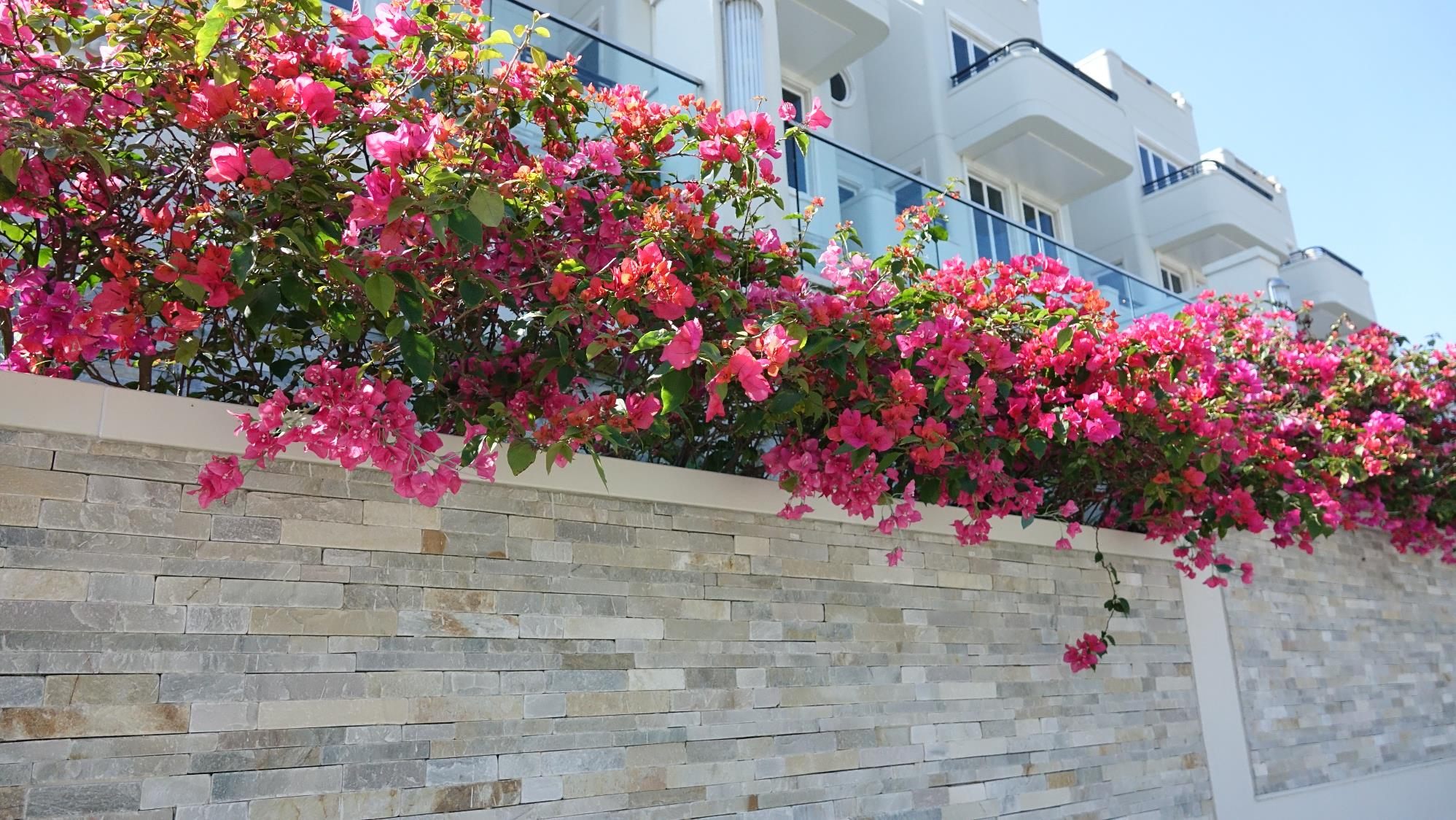

Stone-clad garden wall with bougainvillea and a flat coping in front of a residential building; the D-Tech sensors are hidden under the coping — **FIG. 04**Installed and out of sight: nothing on the wall gives it away.

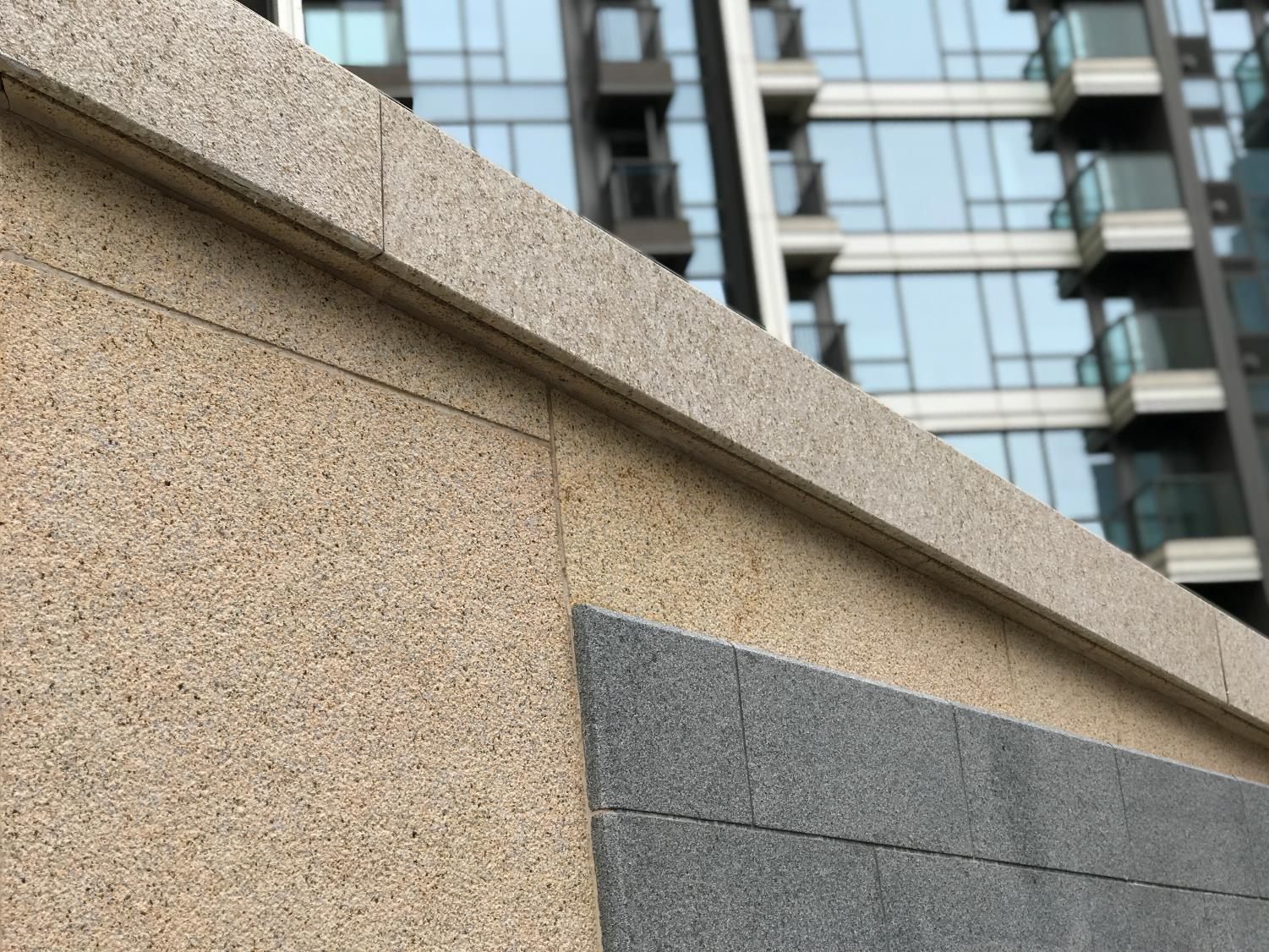

Granite-clad perimeter wall with a stone coping below residential towers, protected by D-Tech — **FIG. 05**A granite coping that is also a sensor.

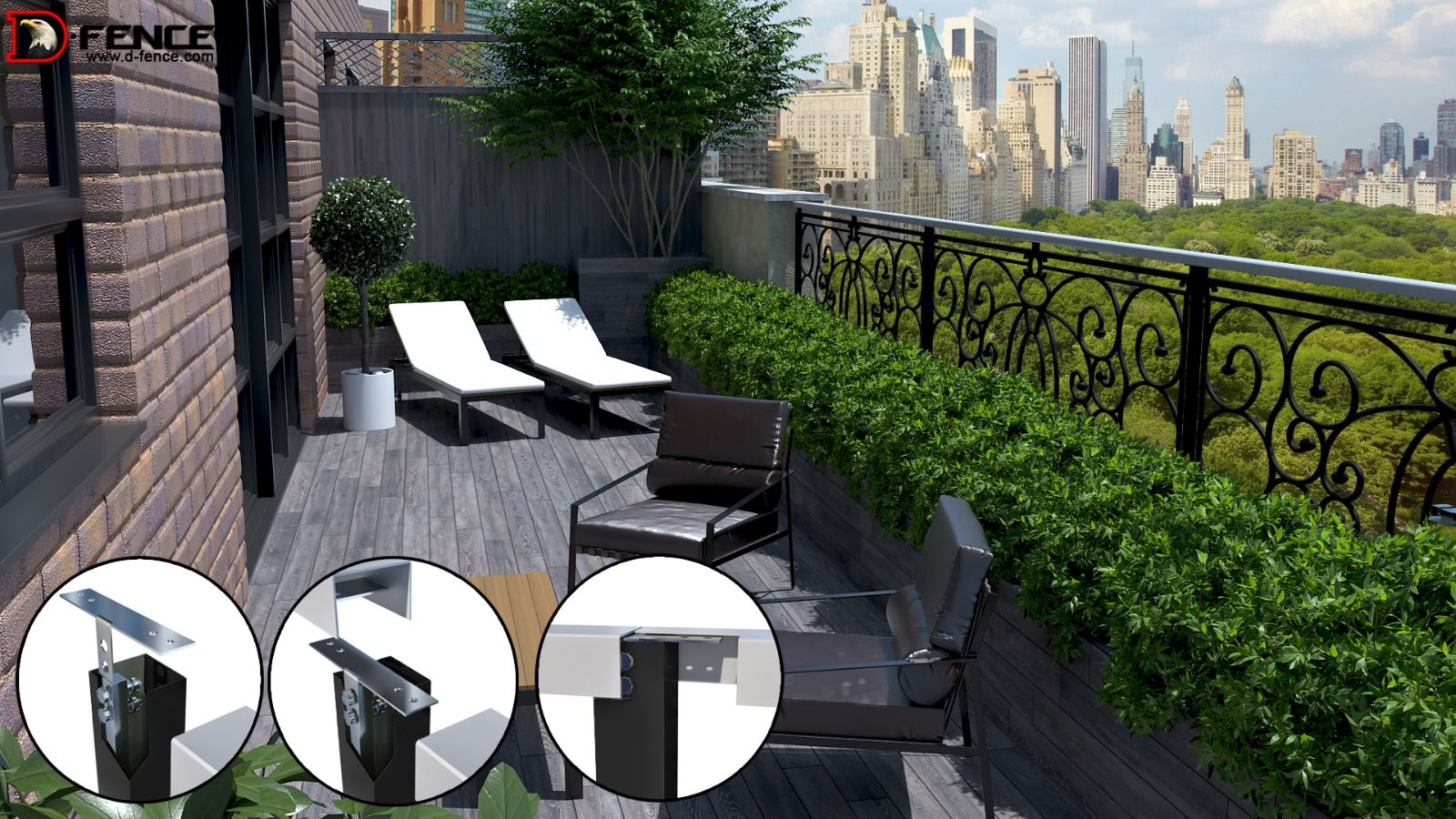

Roof terrace with an ornamental railing over a city park; three close-ups show the sensor brackets under the railing top — **FIG. 06**The same sensor under a roof-terrace railing.

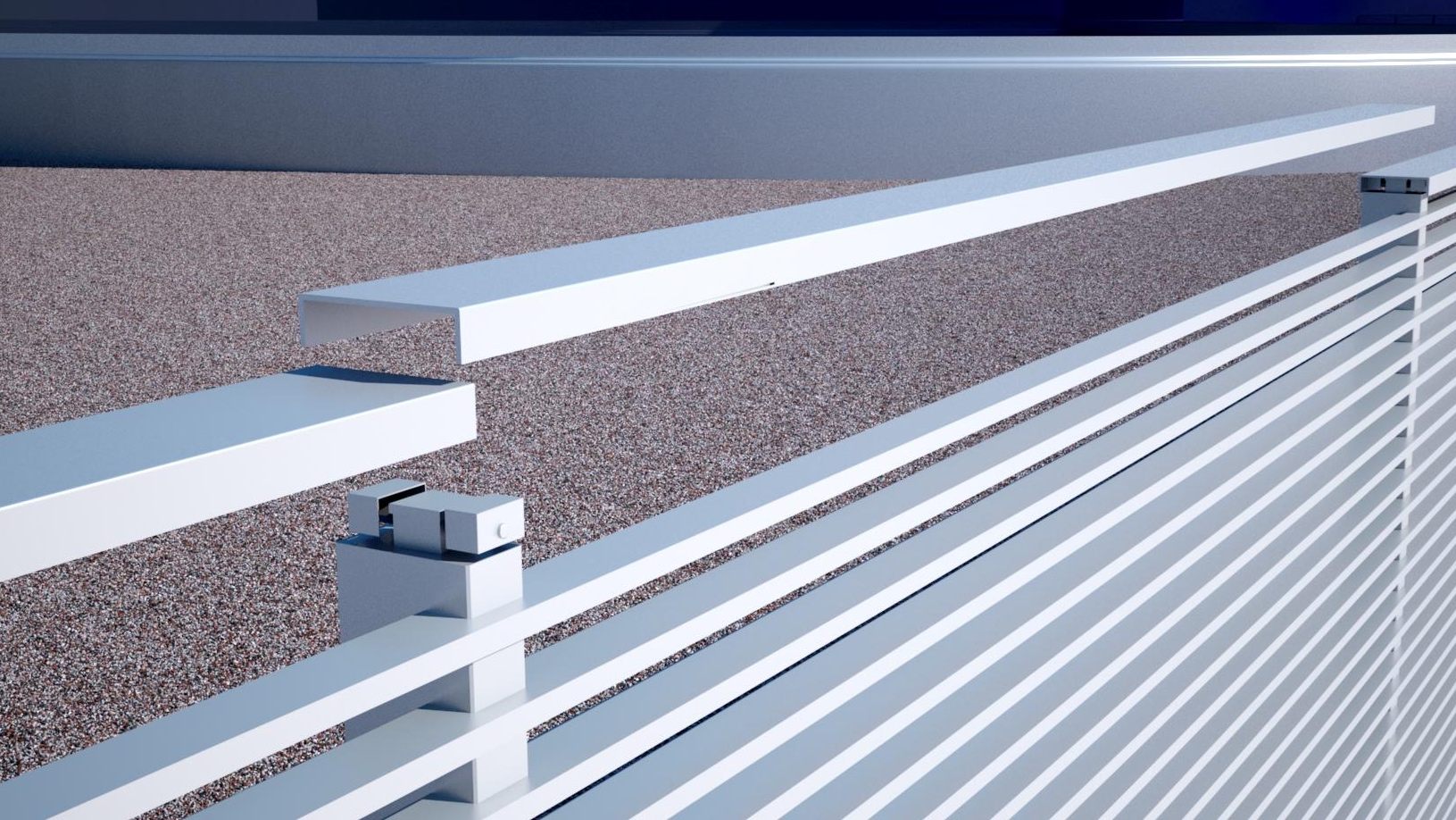

Render of a white slatted fence with its top cover lifted to show the D-Tech sensor mounted on the post — **FIG. 07**On a slatted fence, the cover is the sensor's housing.

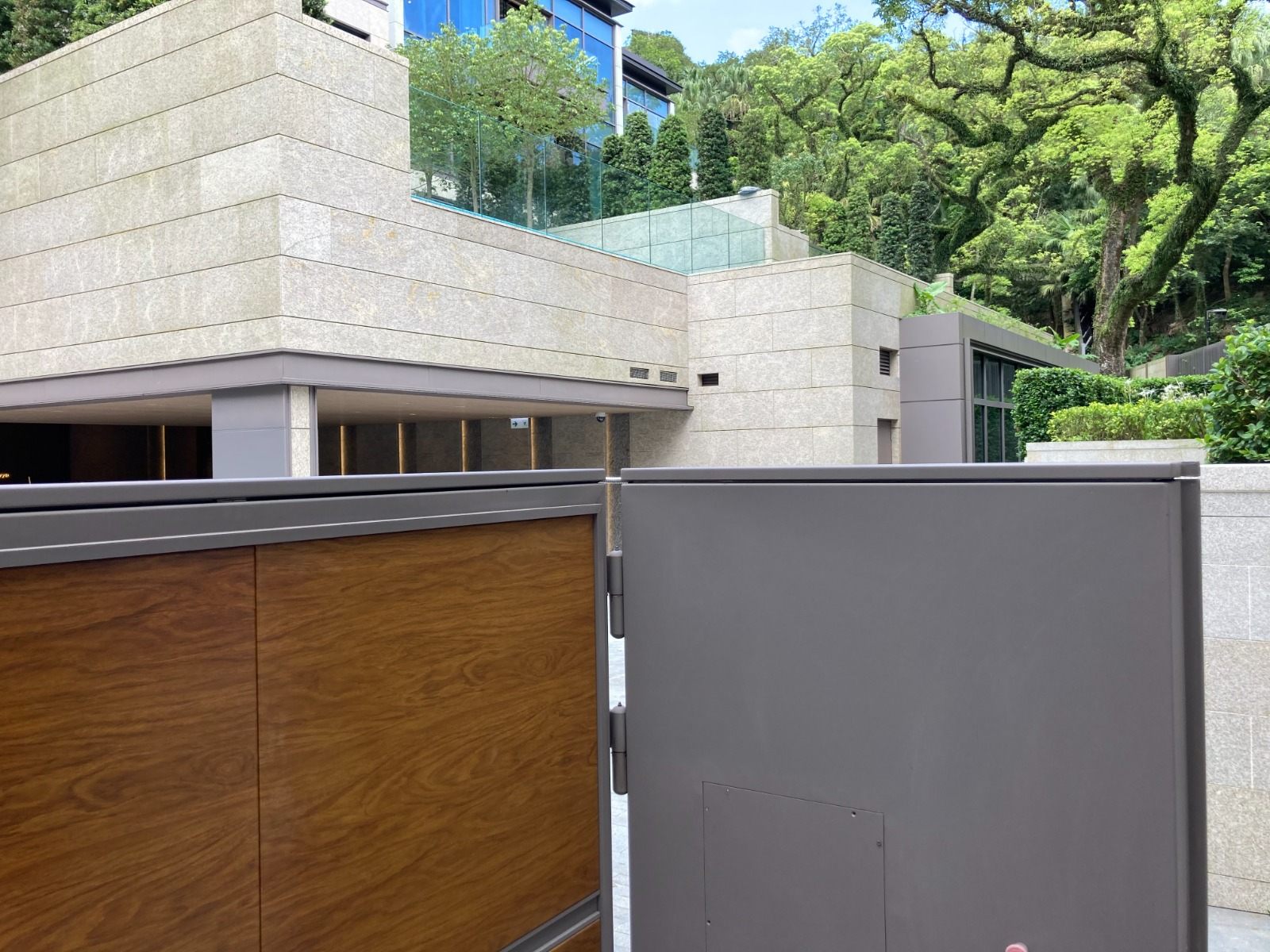

Driveway gate of a hillside residence with timber and metal panels, protected by D-Tech on the gate — **FIG. 08**D-Tech for gates: the weak point of every perimeter.

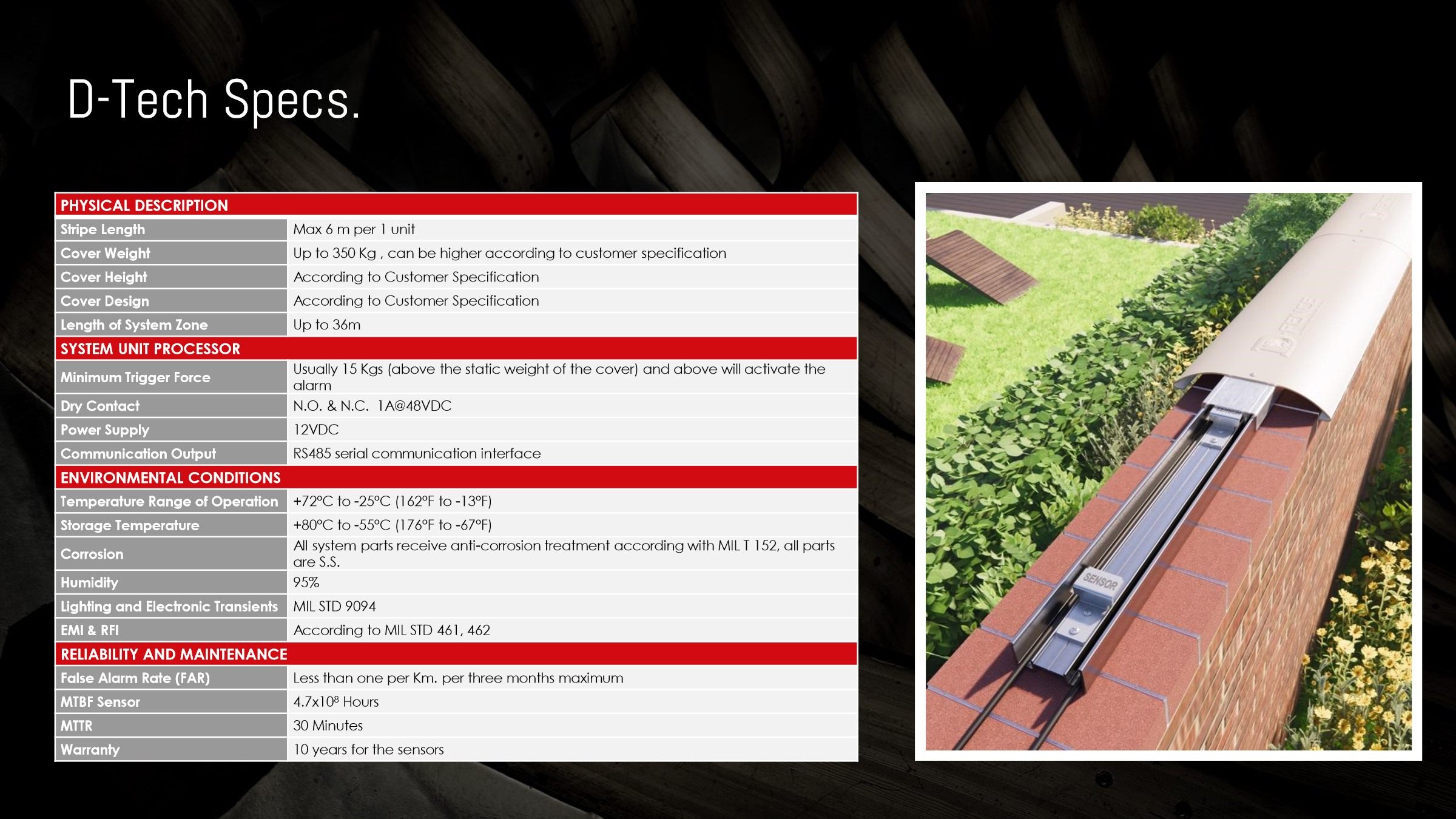

D-Tech specification slide: physical, processor, environmental and reliability data beside a render of the sensor under a wall coping — **FIG. 09**The D-Tech specification sheet.

Specifications & documents.

SpecificationsD-Tech

Sensor: Ultra-slim D-FENCE pressure sensor (strain gauge)
Installation: Under wall / fence coping, on gates, under decks, steps and floors
Strip length: Max. 6 m per unit
Cover weight: Up to 350 kg (higher to customer specification)
Cover height / design: To customer specification; metal or stone coping
Length of system zone: Up to 36 m
Minimum trigger force: Usually 15 kg above the static weight of the cover
Dry contact: N.O. & N.C., 1A@48VDC
Power supply: 12 VDC
Communication output: RS485 serial interface
Operating temperature: +72 °C to −25 °C (162 °F to −13 °F)
Storage temperature: +80 °C to −55 °C (176 °F to −67 °F)
Corrosion: Anti-corrosion treatment to MIL-T-152; all parts stainless steel
Humidity: 95%
Lightning & electronic transients: MIL-STD-9094
EMI & RFI: MIL-STD-461, 462
False alarm rate (catalogue): Less than 1 per km per 3 months
MTBF (sensor): 4.7 × 10⁸ h
MTTR: 30 min
Warranty: 10 years on the sensors

Specification text, ready for your tender.

Copy it into your specification. It describes the system by what it must do, so any alternative has to meet every point.

D-TechTender specification textDatasheet

General
The system shall be D-Tech by D-FENCE Electronic Fencing and Security Systems Ltd. (ISO 9001:2015 certified quality management), or an approved equivalent that meets every requirement in this section.
Function
An ultra-slim pressure sensor hidden under wall copings, gates and floors: it reports the climb and leaves the design untouched.
The system shall provide
- Ultra-slim, concealed: An integrated low-profile strip, hidden under the coping, gate frame or floor finish.
- Your coping, your design: Height, width, length and colour to order; exterior in metal or stone.
- Walls, gates and ground: One sensor family for wall tops, gates, decks, steps, roofs and the floor in front of a safe.
- Weight-based detection: Alarm at about 15 kg above the static weight of the cover; climbing and breaching are reported.
- Long zones: Strips of up to 6 m; system zones of up to 36 m.
- Built for outdoors: Stainless-steel parts, MIL-T-152 anti-corrosion treatment, +72 °C to −25 °C.
- Open outputs: Dry contact N.O. / N.C. and RS485 into any alarm, CCTV or control-room system.
Technical requirements
- Sensor: Ultra-slim D-FENCE pressure sensor (strain gauge)
- Installation: Under wall / fence coping, on gates, under decks, steps and floors
- Strip length: Max. 6 m per unit
- Cover weight: Up to 350 kg (higher to customer specification)
- Cover height / design: To customer specification; metal or stone coping
- Length of system zone: Up to 36 m
- Minimum trigger force: Usually 15 kg above the static weight of the cover
- Dry contact: N.O. & N.C., 1A@48VDC
- Power supply: 12 VDC
- Communication output: RS485 serial interface
- Operating temperature: +72 °C to −25 °C (162 °F to −13 °F)
- Storage temperature: +80 °C to −55 °C (176 °F to −67 °F)
- Corrosion: Anti-corrosion treatment to MIL-T-152; all parts stainless steel
- Humidity: 95%
- Lightning & electronic transients: MIL-STD-9094
- EMI & RFI: MIL-STD-461, 462
- False alarm rate (catalogue): Less than 1 per km per 3 months
- MTBF (sensor): 4.7 × 10⁸ h
- MTTR: 30 min
- Warranty: 10 years on the sensors
Detection sequence
1. Slim sensor: The D-Tech strip lies under the coping, gate frame or floor cover.
2. Weight on the cover: A climber adds load; about 15 kg above the cover weight triggers the alarm.
3. Controller: The processor sends a dry contact (N.O. / N.C.) or RS485 message.
4. Local response: CCTV, siren and floodlight are triggered on site.
5. Notification: The mobile app, the security control room and D-Command Control receive the event.
Submittals
Before installation, the contractor shall submit the manufacturer's datasheet, the installation instructions and the zone layout for approval.

D-Tech | Tender specification text

1. General
The system shall be D-Tech by D-FENCE Electronic Fencing and Security Systems Ltd. (ISO 9001:2015 certified quality management), or an approved equivalent that meets every requirement in this section.

2. Function
An ultra-slim pressure sensor hidden under wall copings, gates and floors: it reports the climb and leaves the design untouched.

3. The system shall provide
- Ultra-slim, concealed: An integrated low-profile strip, hidden under the coping, gate frame or floor finish.
- Your coping, your design: Height, width, length and colour to order; exterior in metal or stone.
- Walls, gates and ground: One sensor family for wall tops, gates, decks, steps, roofs and the floor in front of a safe.
- Weight-based detection: Alarm at about 15 kg above the static weight of the cover; climbing and breaching are reported.
- Long zones: Strips of up to 6 m; system zones of up to 36 m.
- Built for outdoors: Stainless-steel parts, MIL-T-152 anti-corrosion treatment, +72 °C to −25 °C.
- Open outputs: Dry contact N.O. / N.C. and RS485 into any alarm, CCTV or control-room system.

4. Technical requirements
- Sensor: Ultra-slim D-FENCE pressure sensor (strain gauge)
- Installation: Under wall / fence coping, on gates, under decks, steps and floors
- Strip length: Max. 6 m per unit
- Cover weight: Up to 350 kg (higher to customer specification)
- Cover height / design: To customer specification; metal or stone coping
- Length of system zone: Up to 36 m
- Minimum trigger force: Usually 15 kg above the static weight of the cover
- Dry contact: N.O. & N.C., 1A@48VDC
- Power supply: 12 VDC
- Communication output: RS485 serial interface
- Operating temperature: +72 °C to −25 °C (162 °F to −13 °F)
- Storage temperature: +80 °C to −55 °C (176 °F to −67 °F)
- Corrosion: Anti-corrosion treatment to MIL-T-152; all parts stainless steel
- Humidity: 95%
- Lightning & electronic transients: MIL-STD-9094
- EMI & RFI: MIL-STD-461, 462
- False alarm rate (catalogue): Less than 1 per km per 3 months
- MTBF (sensor): 4.7 × 10⁸ h
- MTTR: 30 min
- Warranty: 10 years on the sensors

5. Detection sequence
5.1 Slim sensor: The D-Tech strip lies under the coping, gate frame or floor cover.
5.2 Weight on the cover: A climber adds load; about 15 kg above the cover weight triggers the alarm.
5.3 Controller: The processor sends a dry contact (N.O. / N.C.) or RS485 message.
5.4 Local response: CCTV, siren and floodlight are triggered on site.
5.5 Notification: The mobile app, the security control room and D-Command Control receive the event.

6. Submittals
Before installation, the contractor shall submit the manufacturer's datasheet, the installation instructions and the zone layout for approval.
