The threat · Climbers and cutters at a high-risk site?

D-Razor Mesh

Welded razor-blade mesh built to resist climbing and cutting, with D-FENCE strain-gauge sensors reporting every attempt 24/7.

Zones up to 90 mHeights 1.2–2.4 m+Anti-climb, anti-cut
Discuss your project Catalog

For integrators & consultants

L3LayerThe perimeter line
DatasheetPDF · 315 KBTender specification textCopy text

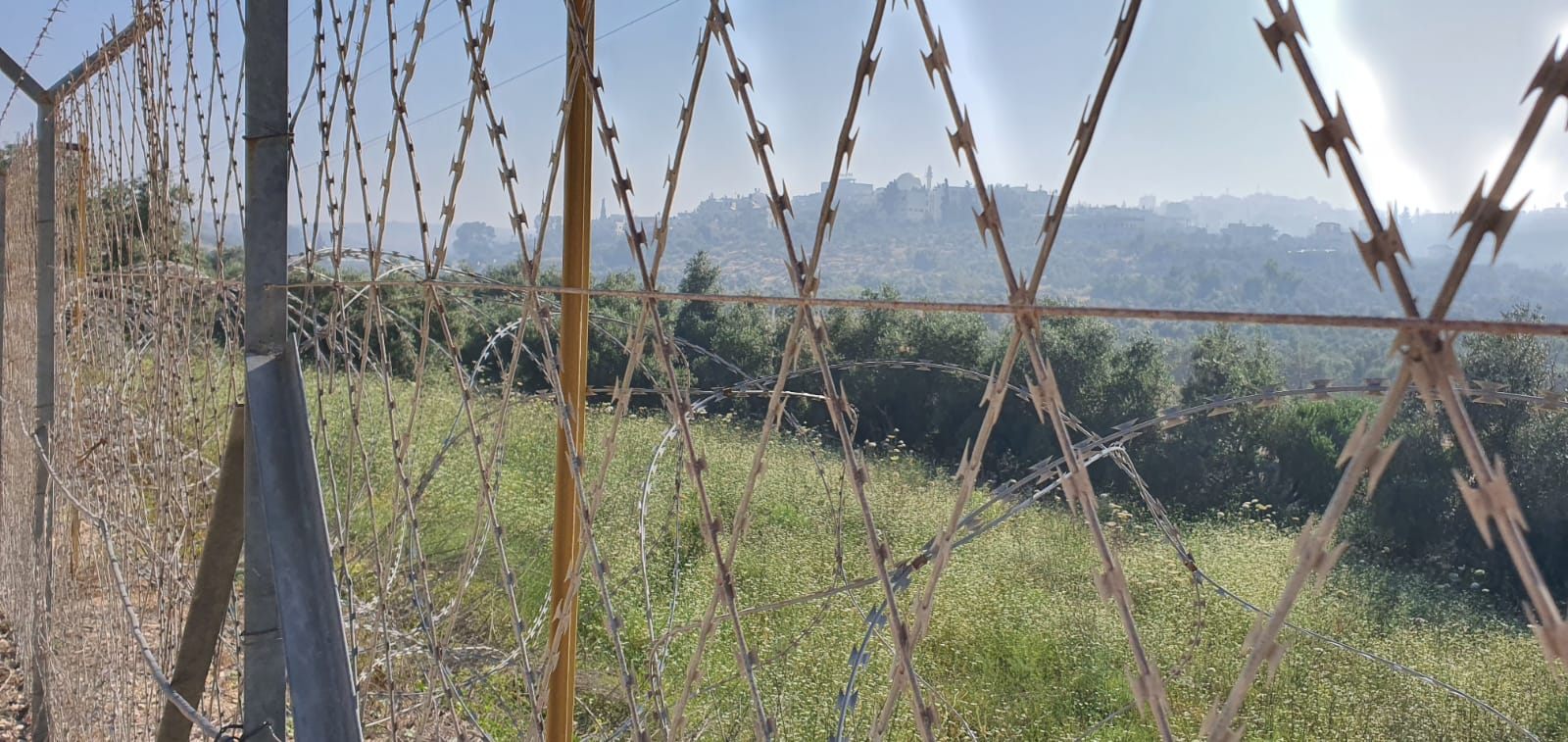

Looking through a razor-mesh fence at a hillside site, the diamond pattern of welded blades in the foreground

Stop climbers and cutters at the barrier.

D-Razor Mesh is made of small, sharp blades welded together into a diamond-shaped mesh on a high-strength galvanised steel core wire. It is built for high-security sites where climbing and cutting must be stopped at the barrier.

01

Hard to climb, hard to cut

Razor blades welded into a diamond mesh on a high-strength galvanised core wire.

02

Every attempt reported

Strain-gauge sensors and controllers watch the fence 24/7 and flag the attacked zone.

03

Sized to the risk

Heights from 1.2 m to 2.4 m and above; mesh size and blade profile to specification.

The mesh works with D-FENCE's field-proven strain-gauge sensors and electronic controllers, so every attempt on the fence is reported to the control room, 24/7.

Mesh size, blade profile, coating and height are chosen for the site: prisons, military bases, airports and industrial facilities.

From the first touch to the right response.

  1. Razor mesh barrier

    Welded razor-blade mesh panels on steel posts, on the ground, on walls or on an existing fence.

  2. Strain-gauge sensors

    Sensors on the posts feel the force of a climb or cut.

  3. Controller

    Proprietary algorithms decide in real time; each zone covers up to 90 m.

  4. Alarm out

    Dry contact or RS232 / RS485 to your control room, cameras and alarm system.

Seen in full.

Every image opens full size. Product sheets are shown whole, exactly as D-FENCE publishes them.

FIG. 01Field installation

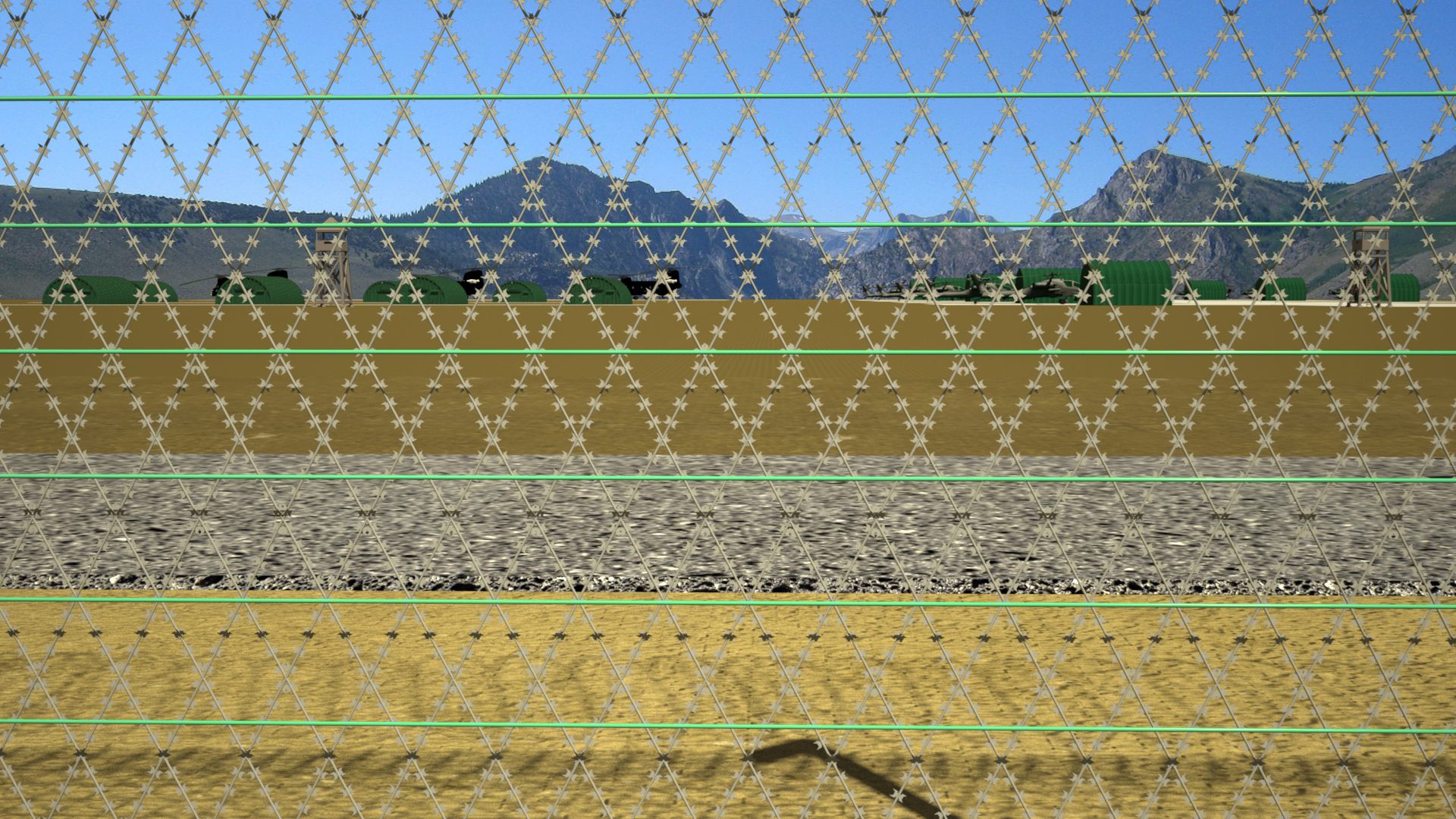

FIG. 02Diamond-pattern razor mesh

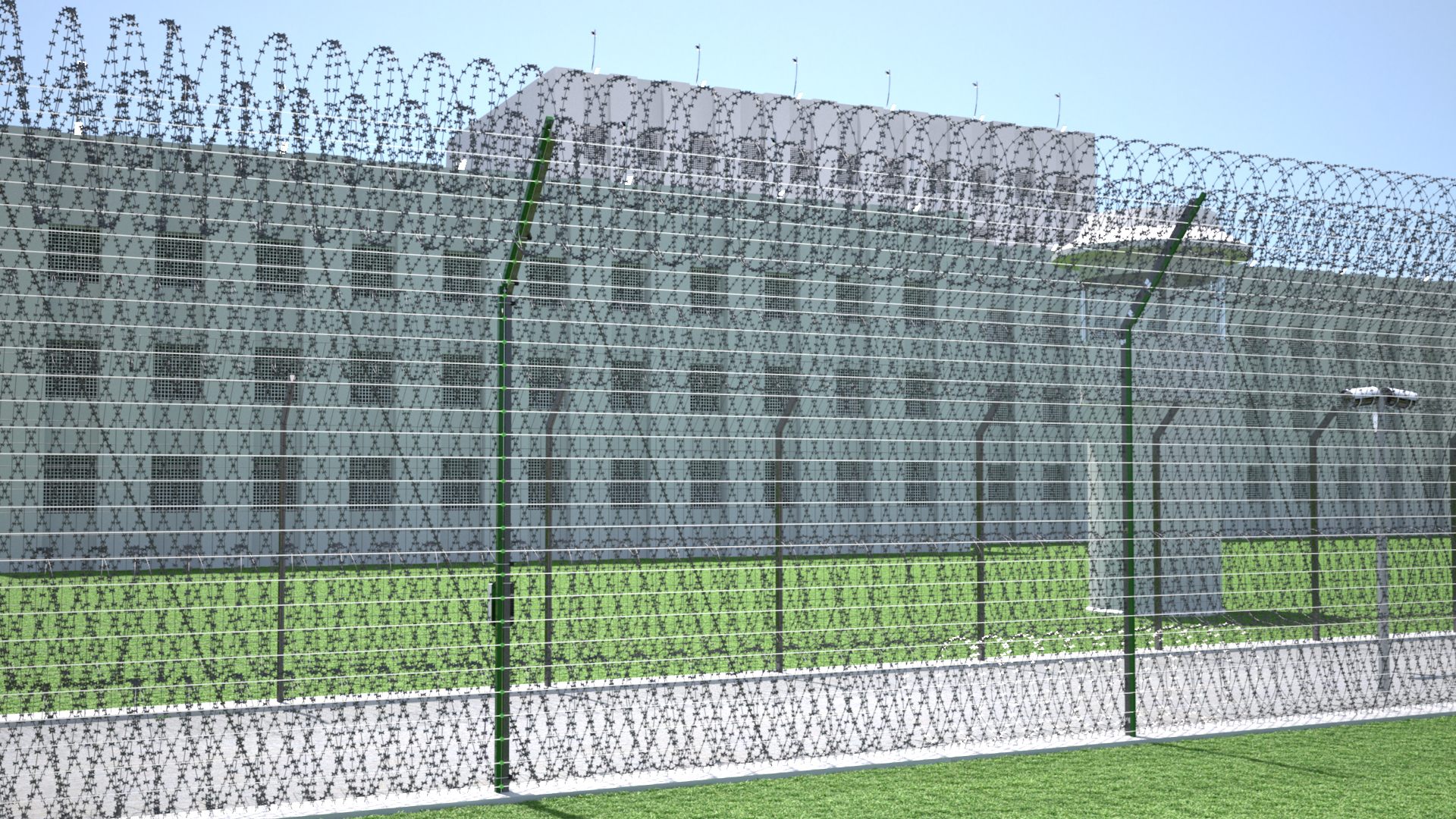

FIG. 03Prisons and detention sites

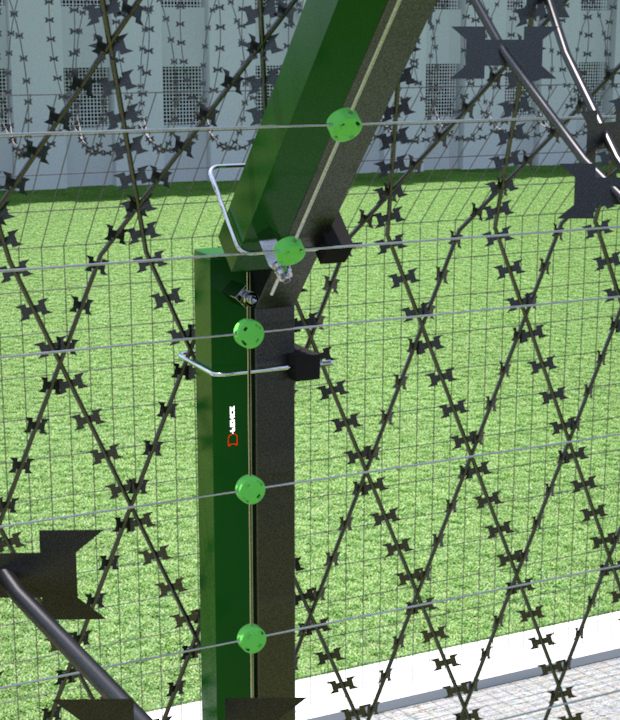

FIG. 04Sensor post and razor mesh

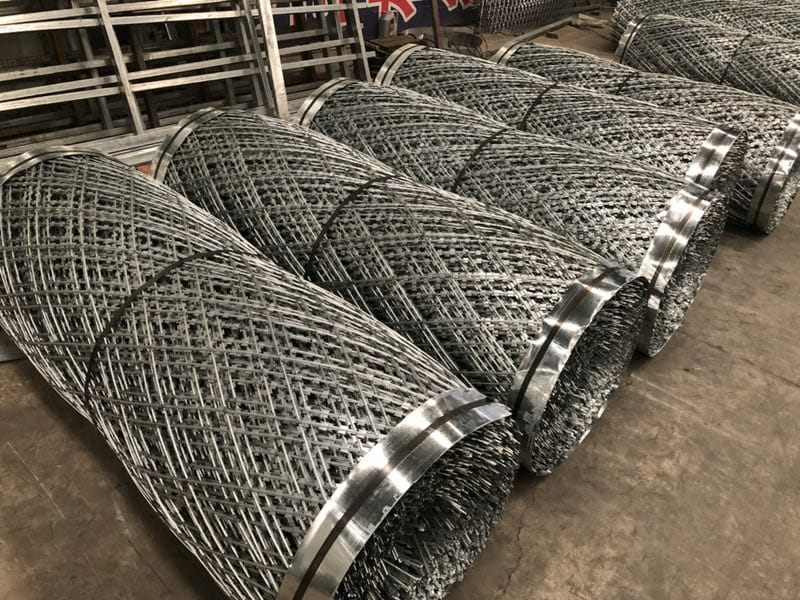

FIG. 05Supplied in rolls of 6–10 m

Specifications & documents.

SpecificationsD-Razor Mesh
Material
High-tensile galvanised or stainless steel; razor wire reinforced with a core wire
Core wire diameter
2.5–3.0 mm
Blade thickness
0.5 mm
Mesh size
150 × 300 mm, 200 × 200 mm or 100 × 150 mm (customisable)
Blade profile
BTO-10, BTO-22 or CBT-65; blade spacing 26–34 mm
Coating
Electro-galvanised, hot-dip galvanised or PVC-coated
Height
1.2 m, 1.8 m, 2.1 m, 2.4 m or higher
Roll length
6–10 m
Posts
Steel, Ø 48–60 mm, set in concrete
Fence length
No fixed limit (practical limitation)
Length of system zone
Not exceeding 90 m
Unit dimensions
250 × 55 × 25 mm, 200 g
Processing unit
Up to 24 sensors
Dry contact
N.O. & N.C.
Power supply
48 VDC / 12 VDC
Communication output
RS232 / RS485
Operating temperature
+72 °C to −25 °C
Storage temperature
+80 °C to −32 °C
Humidity
95 %
Corrosion
All parts treated to MIL T 152
Lightning & electronic transients
MIL STD 9094
EMI & RFI
MIL STD 461, 462
False alarm rate (catalogue)
Less than 1 per km per 3 months
MTBF sensor
4.7 × 10⁸ hours
MTTR
30 minutes
Warranty
10 years on the sensors

Specification text, ready for your tender.

Copy it into your specification. It describes the system by what it must do, so any alternative has to meet every point.

D-Razor MeshTender specification textDatasheet

  1. General

    The system shall be D-Razor Mesh by D-FENCE Electronic Fencing and Security Systems Ltd. (ISO 9001:2015 certified quality management), or an approved equivalent that meets every requirement in this section.

  2. Function

    Welded razor-blade mesh built to resist climbing and cutting, with D-FENCE strain-gauge sensors reporting every attempt 24/7.

  3. The system shall provide

    • Welded diamond mesh: Small sharp blades welded together into a diamond pattern.
    • Strong core: High-strength galvanised steel core wire, hard to cut.
    • Anti-climb options: Angled brackets or a double razor coil on top; barbed wire can be added.
    • Flexible installation: On the ground, on walls or on existing fences.
    • Sensor-ready: Works with D-FENCE strain-gauge sensors and controllers, 24/7.

  4. Technical requirements

    • Material: High-tensile galvanised or stainless steel; razor wire reinforced with a core wire
    • Core wire diameter: 2.5–3.0 mm
    • Blade thickness: 0.5 mm
    • Mesh size: 150 × 300 mm, 200 × 200 mm or 100 × 150 mm (customisable)
    • Blade profile: BTO-10, BTO-22 or CBT-65; blade spacing 26–34 mm
    • Coating: Electro-galvanised, hot-dip galvanised or PVC-coated
    • Height: 1.2 m, 1.8 m, 2.1 m, 2.4 m or higher
    • Roll length: 6–10 m
    • Posts: Steel, Ø 48–60 mm, set in concrete
    • Fence length: No fixed limit (practical limitation)
    • Length of system zone: Not exceeding 90 m
    • Unit dimensions: 250 × 55 × 25 mm, 200 g
    • Processing unit: Up to 24 sensors
    • Dry contact: N.O. & N.C.
    • Power supply: 48 VDC / 12 VDC
    • Communication output: RS232 / RS485
    • Operating temperature: +72 °C to −25 °C
    • Storage temperature: +80 °C to −32 °C
    • Humidity: 95 %
    • Corrosion: All parts treated to MIL T 152
    • Lightning & electronic transients: MIL STD 9094
    • EMI & RFI: MIL STD 461, 462
    • False alarm rate (catalogue): Less than 1 per km per 3 months
    • MTBF sensor: 4.7 × 10⁸ hours
    • MTTR: 30 minutes
    • Warranty: 10 years on the sensors

  5. Detection sequence

    1. Razor mesh barrier: Welded razor-blade mesh panels on steel posts, on the ground, on walls or on an existing fence.
    2. Strain-gauge sensors: Sensors on the posts feel the force of a climb or cut.
    3. Controller: Proprietary algorithms decide in real time; each zone covers up to 90 m.
    4. Alarm out: Dry contact or RS232 / RS485 to your control room, cameras and alarm system.

  6. Submittals

    Before installation, the contractor shall submit the manufacturer's datasheet, the installation instructions and the zone layout for approval.
