The threat · Vandals forcing your cable tunnels and fences?

D-Palisade

Name: D-Palisade
Brand: D-FENCE

A patented stainless-steel sensor that turns cable tunnels, pipelines and palisade fences into barriers that report forced damage.

Patented

Stainless steelDual-chip sensorNo routine maintenance

Discuss your project Catalog

For integrators & consultants

L5LayerCritical assets

DatasheetPDF · 242 KB Tender specification textCopy text

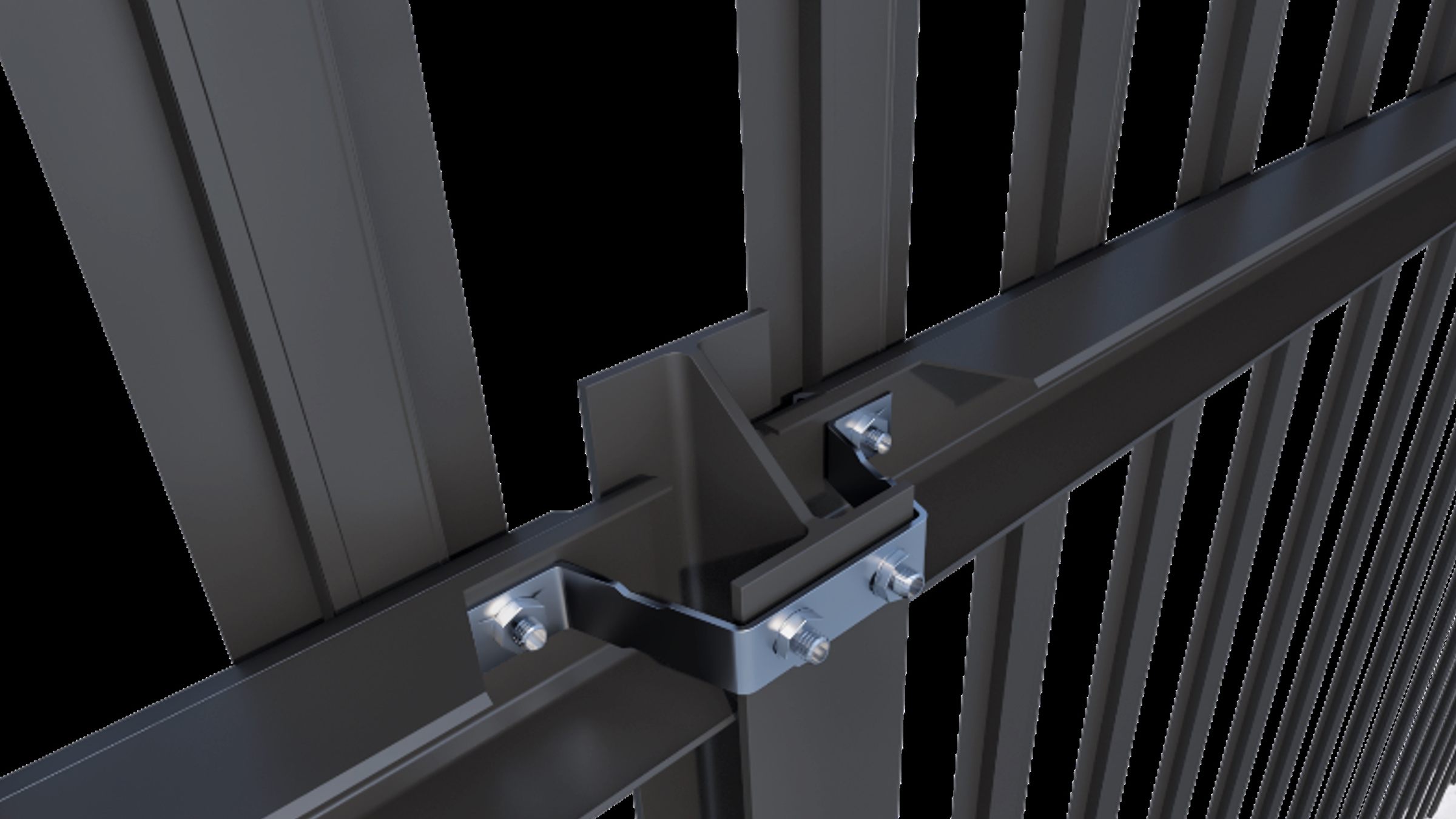

Render: the stainless-steel D-Palisade clamp bolted over the post and rail of a black palisade fence

Catch forced damage before the cable is gone.

Cable tunnels, pipelines and palisade fences stretch for kilometres and are rarely watched. Vandals and thieves can lever, cut or force them long before anyone arrives.

Made for linear infrastructure

Mounts on cable tunnels, pipelines and existing palisade fences.

Stainless steel, vandal-resistant

Built to withstand extreme weather and vandalism in the field.

Install and forget

Simple installation and no routine maintenance.

D-Palisade is designed specifically for cable-related and other linear infrastructure. The sensor, based on the D-FENCE dual-chip pressure sensor and built in stainless steel, mounts on top of the existing structure and detects the force applied to it.

It installs simply, needs no routine maintenance and reports through the D-FENCE controller to D-Command Control or your existing security system, alongside D-Tech and D-Pressure Strip in the same cable-protection system.

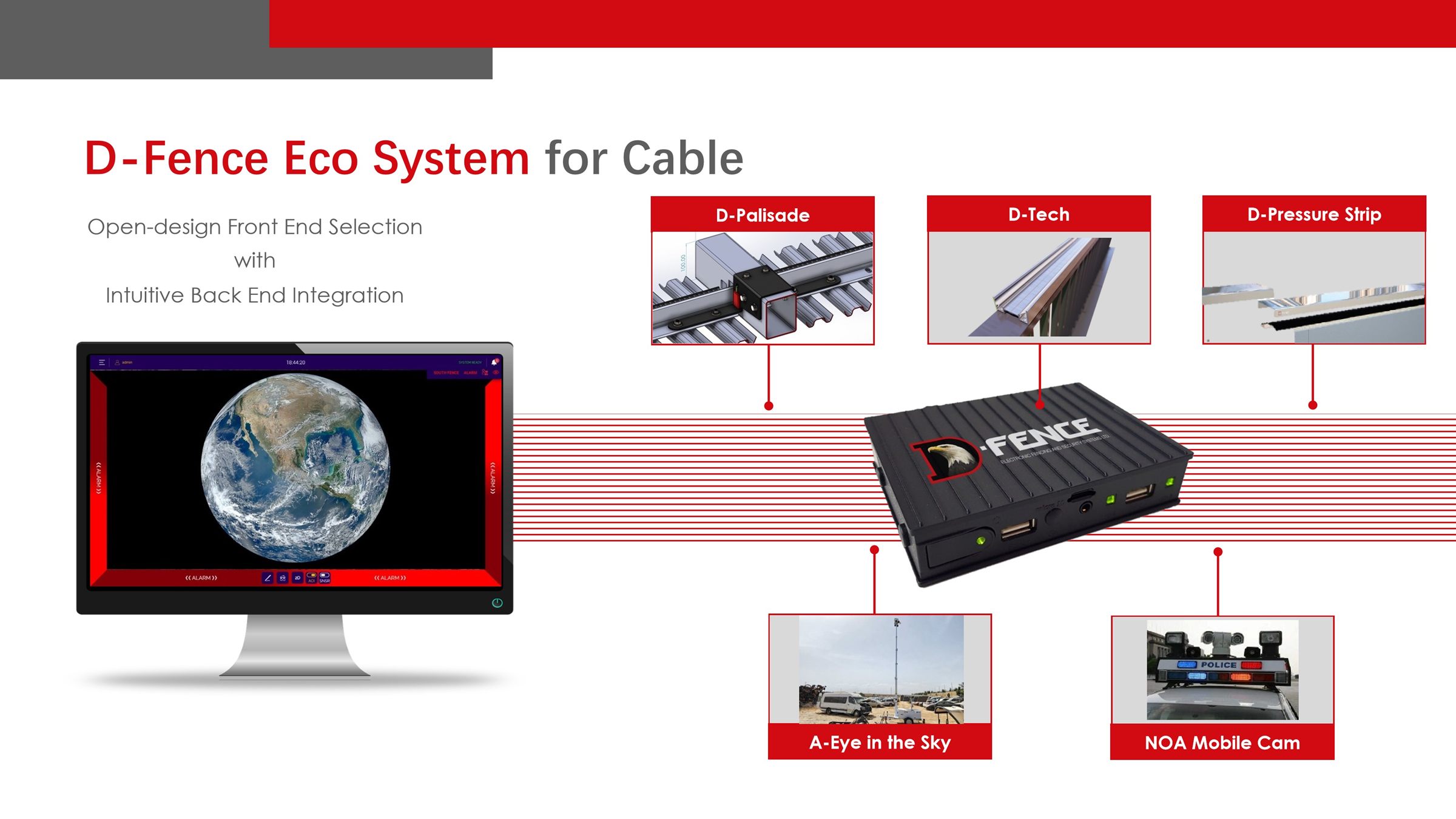

From the first touch to the right response.

Sensor on the structure
D-Palisade bolts onto the tunnel, pipeline or palisade rail already in place.
Force measured
The dual-chip pressure sensor registers force applied by a vandal or intruder.
D-FENCE controller
The controller reports the event with its zone.
Command and response
The alarm reaches D-Command Control or your security system; AI-EYE IN THE SKY and NOA can verify on site.

Seen in full.

Every image opens full size. Product sheets are shown whole, exactly as D-FENCE publishes them.

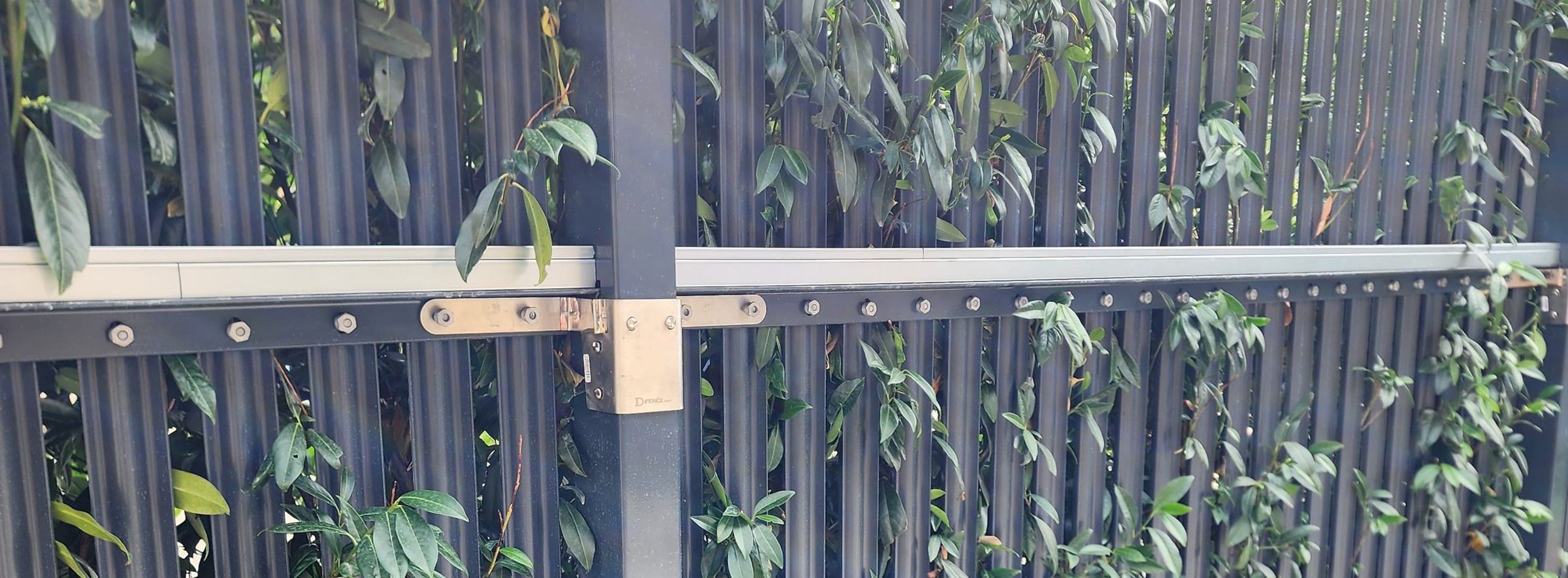

Stainless-steel D-Palisade sensor bolted where the rail meets the post of a dark pale fence, among climbing plants — **FIG. 01**Installed on an existing pale fence

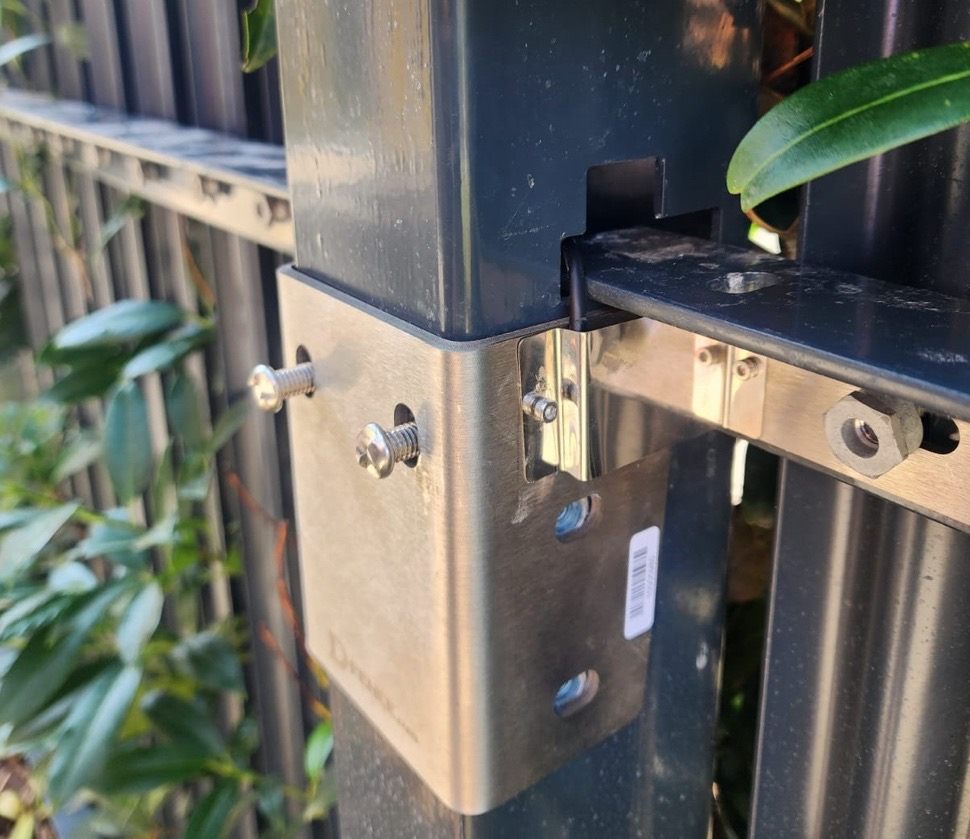

Close-up of the stainless-steel D-Palisade bracket clamping the post and the rail — **FIG. 02**Stainless-steel sensor bracket

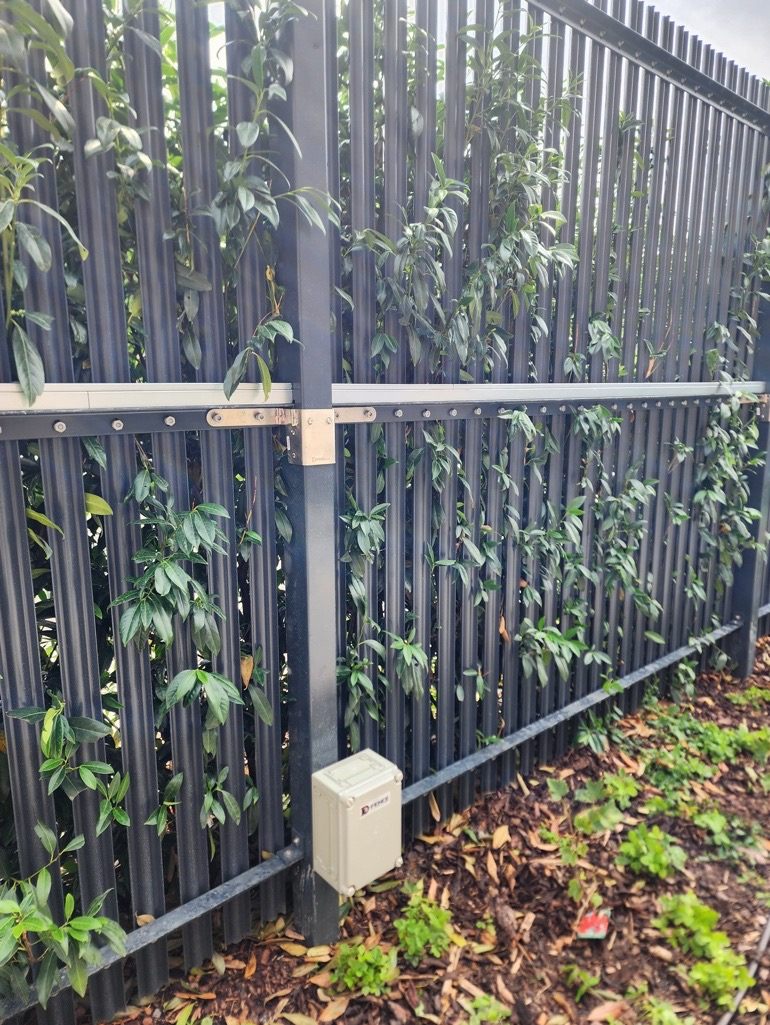

Pale fence with the D-Palisade sensor on the rail and a weatherproof control box at the foot of the post — **FIG. 03**Sensor and control box in the field

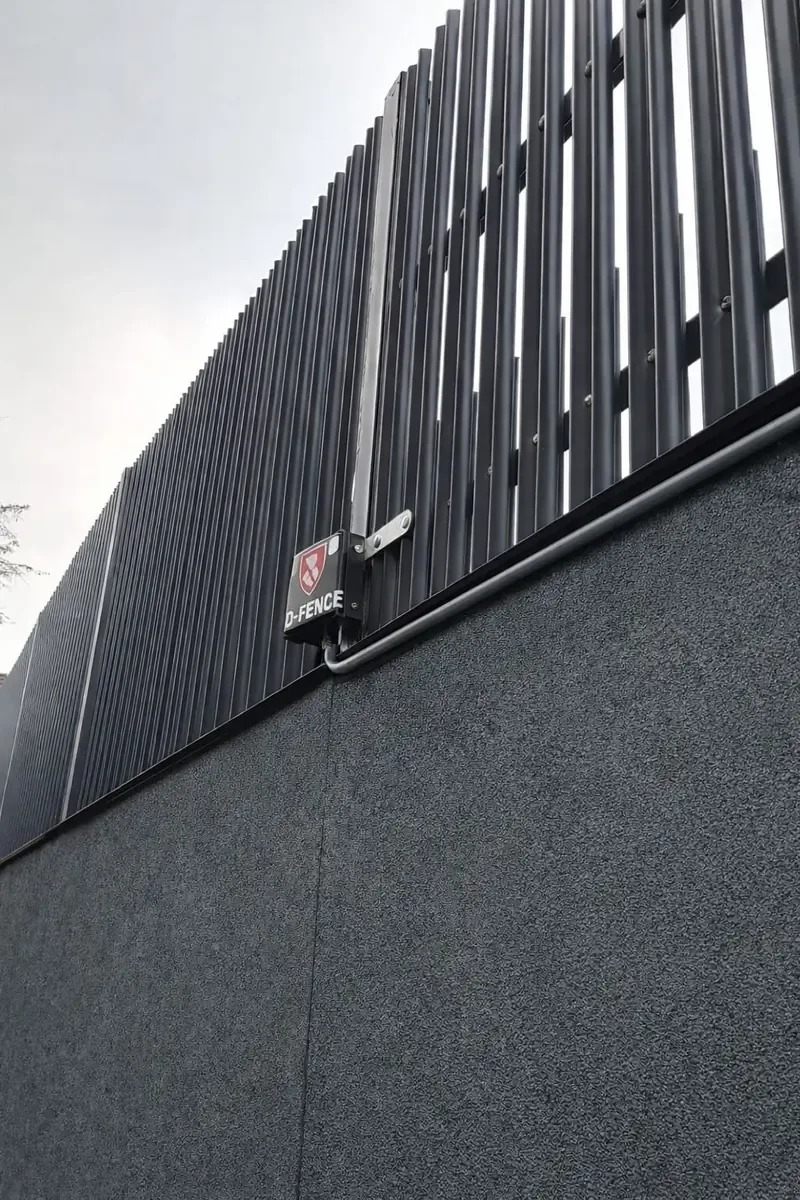

D-FENCE sensor unit and bracket on an architectural pale fence mounted above a wall — **FIG. 04**Architectural fence over a wall

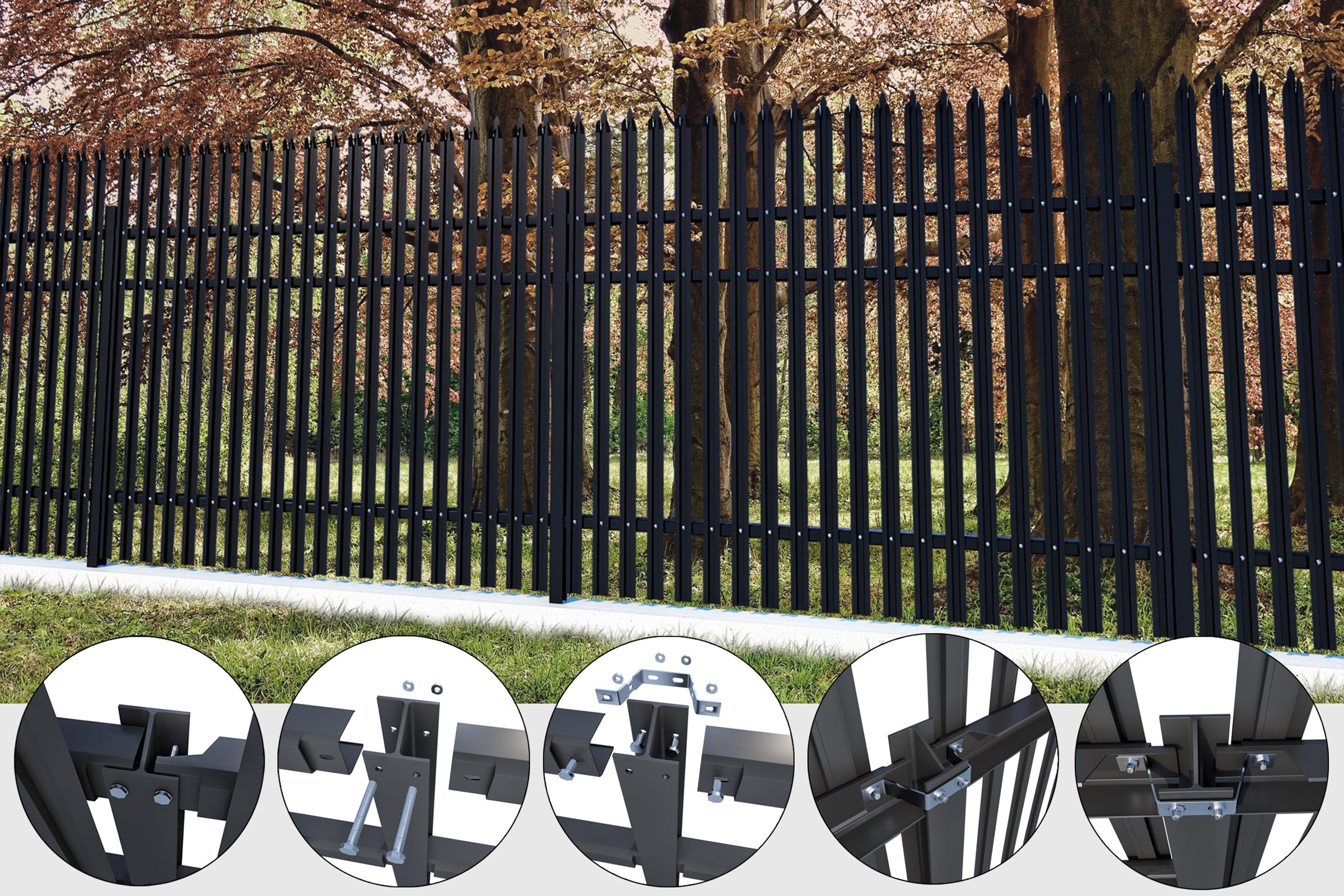

Render: black spear-top palisade fence with five close-ups of the D-Palisade bracket and its mounting steps — **FIG. 05**Bracket and mounting details

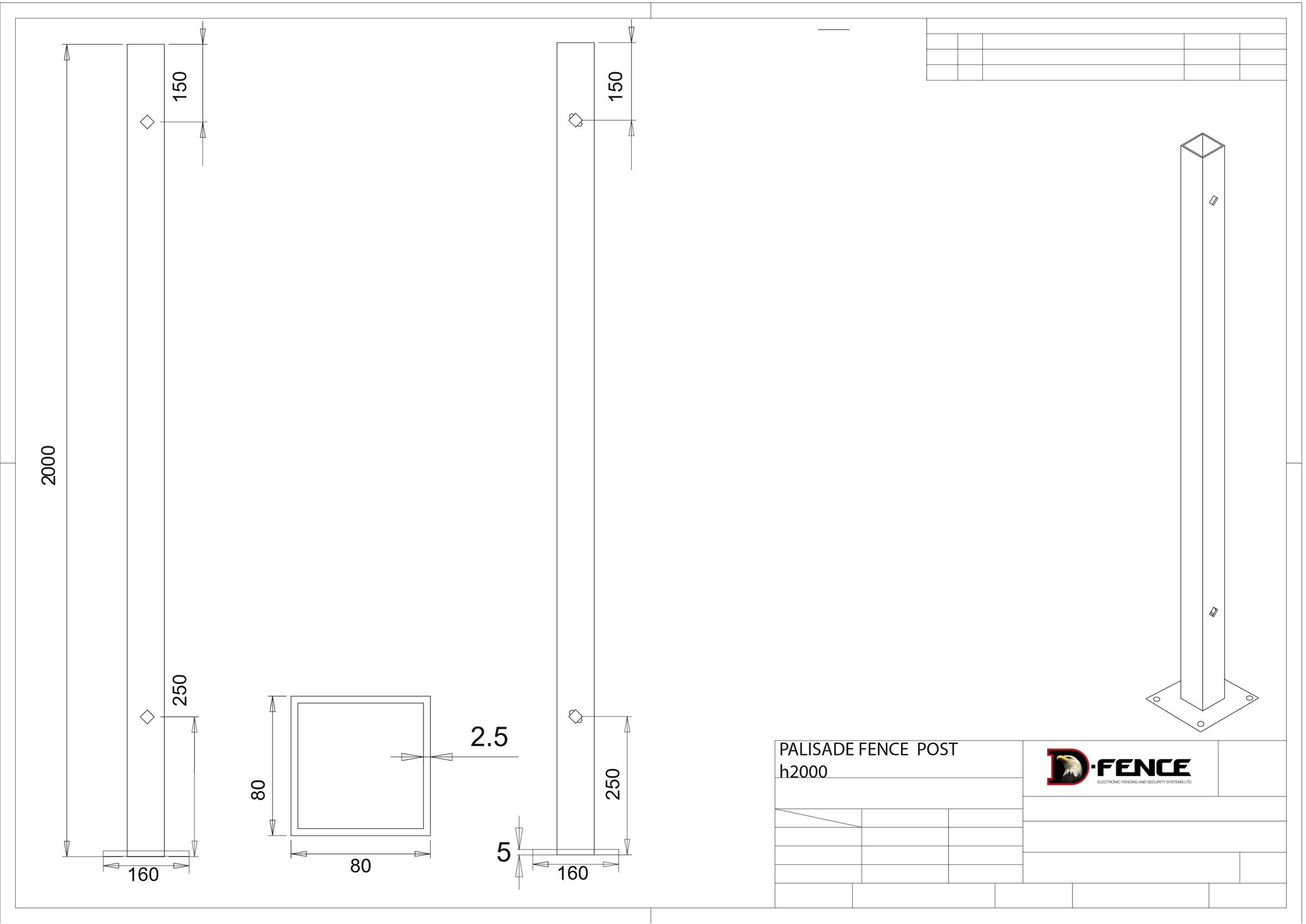

Technical drawing of the palisade fence sensor post: 80 × 80 mm section, 2,000 mm high, 160 mm base plate — **FIG. 06**Sensor post drawing, h 2,000 mm

Specifications & documents.

SpecificationsD-Palisade

Application: Cable tunnels, pipelines, palisade fences and other linear infrastructure
Sensor: D-FENCE dual-chip pressure sensor
Construction: Stainless steel, high vandal resistance
Mounting: On top of the existing structure; retrofit, plug and play
Detects: Force applied to the structure (forced damage)
Sensor post (drawing): 80 × 80 mm section, 2.5 mm wall, 2,000 mm high, 160 mm base plate
Maintenance: No routine maintenance
Integration: D-FENCE controller to D-Command Control or existing security systems
Patent: Patented (CN utility model, granted 2023)

Specification text, ready for your tender.

Copy it into your specification. It describes the system by what it must do, so any alternative has to meet every point.

D-PalisadeTender specification textDatasheet

General
The system shall be D-Palisade by D-FENCE Electronic Fencing and Security Systems Ltd. (ISO 9001:2015 certified quality management), or an approved equivalent that meets every requirement in this section.
Function
A patented stainless-steel sensor that turns cable tunnels, pipelines and palisade fences into barriers that report forced damage.
The system shall provide
- Dual-chip pressure sensor: Based on the D-FENCE dual-chip pressure sensor.
- Stainless-steel body: Ultra-strong stainless-steel construction with high vandal resistance.
- Fits what is already there: Mounted on top of cable tunnels, pipelines and existing palisade fences.
- Detects forced damage: Registers the force a vandal applies to the structure.
- No routine maintenance: Simple to install and virtually maintenance-free.
- One cable-protection system: Shares the D-FENCE controller with D-Tech and D-Pressure Strip.
Technical requirements
- Application: Cable tunnels, pipelines, palisade fences and other linear infrastructure
- Sensor: D-FENCE dual-chip pressure sensor
- Construction: Stainless steel, high vandal resistance
- Mounting: On top of the existing structure; retrofit, plug and play
- Detects: Force applied to the structure (forced damage)
- Sensor post (drawing): 80 × 80 mm section, 2.5 mm wall, 2,000 mm high, 160 mm base plate
- Maintenance: No routine maintenance
- Integration: D-FENCE controller to D-Command Control or existing security systems
- Patent: Patented (CN utility model, granted 2023)
Detection sequence
1. Sensor on the structure: D-Palisade bolts onto the tunnel, pipeline or palisade rail already in place.
2. Force measured: The dual-chip pressure sensor registers force applied by a vandal or intruder.
3. D-FENCE controller: The controller reports the event with its zone.
4. Command and response: The alarm reaches D-Command Control or your security system; AI-EYE IN THE SKY and NOA can verify on site.
Submittals
Before installation, the contractor shall submit the manufacturer's datasheet, the installation instructions and the zone layout for approval.

D-Palisade | Tender specification text

1. General
The system shall be D-Palisade by D-FENCE Electronic Fencing and Security Systems Ltd. (ISO 9001:2015 certified quality management), or an approved equivalent that meets every requirement in this section.

2. Function
A patented stainless-steel sensor that turns cable tunnels, pipelines and palisade fences into barriers that report forced damage.

3. The system shall provide
- Dual-chip pressure sensor: Based on the D-FENCE dual-chip pressure sensor.
- Stainless-steel body: Ultra-strong stainless-steel construction with high vandal resistance.
- Fits what is already there: Mounted on top of cable tunnels, pipelines and existing palisade fences.
- Detects forced damage: Registers the force a vandal applies to the structure.
- No routine maintenance: Simple to install and virtually maintenance-free.
- One cable-protection system: Shares the D-FENCE controller with D-Tech and D-Pressure Strip.

4. Technical requirements
- Application: Cable tunnels, pipelines, palisade fences and other linear infrastructure
- Sensor: D-FENCE dual-chip pressure sensor
- Construction: Stainless steel, high vandal resistance
- Mounting: On top of the existing structure; retrofit, plug and play
- Detects: Force applied to the structure (forced damage)
- Sensor post (drawing): 80 × 80 mm section, 2.5 mm wall, 2,000 mm high, 160 mm base plate
- Maintenance: No routine maintenance
- Integration: D-FENCE controller to D-Command Control or existing security systems
- Patent: Patented (CN utility model, granted 2023)

5. Detection sequence
5.1 Sensor on the structure: D-Palisade bolts onto the tunnel, pipeline or palisade rail already in place.
5.2 Force measured: The dual-chip pressure sensor registers force applied by a vandal or intruder.
5.3 D-FENCE controller: The controller reports the event with its zone.
5.4 Command and response: The alarm reaches D-Command Control or your security system; AI-EYE IN THE SKY and NOA can verify on site.

6. Submittals
Before installation, the contractor shall submit the manufacturer's datasheet, the installation instructions and the zone layout for approval.
