The threat · Artwork lifted off the wall unnoticed?

D-Picture

Name: D-Picture
Brand: D-FENCE

A hidden strain-gauge sensor behind each painting reports the moment it is dragged, lifted or replaced.

Maintenance-free

Invisible mountingUp to 50 kg by defaultRS485

Discuss your project Catalog

For integrators & consultants

L6LayerThe building

DatasheetPDF · 263 KB Tender specification textCopy text

Gallery with paintings behind a rope barrier: a hooded intruder reaches for the central painting, the floor zone in front of it turns red and ALARM sounds

Lift a painting and the alarm sounds.

D-Picture is an anti-theft detection system for art pieces such as pictures and paintings. A D-FENCE strain-gauge sensor behind the artwork reads its static force; when that force changes because the painting is dragged, moved or replaced, the sensor reports the event and activates the D-FENCE alarm and every integrated security system.

The alarm starts at the wall

Theft is reported when the painting moves, not when it leaves the building.

Nothing for visitors to see

No bars, no glass boxes: the protection is behind the frame.

No maintenance visits

A 'shoot and forget' sensor with a 10-year sensor warranty.

The sensor mounts on concrete, metal, wood or glass and can be completely invisible, so the display keeps its design. The default design carries pictures of up to 50 kg; heavier works are handled by changing the installation method.

D-Picture is made for galleries, treasuries, museums, offices and homes. In the D-FENCE museum scheme it works with D-Pressure Strip in the floor in front of the artwork: the floor warns as someone approaches, the picture sensor confirms the touch, and the control room gets the alarm, the camera and an SMS.

From the first touch to the right response.

Picture sensor
A strain-gauge sensor behind the frame reads the painting's static force.
Sensor controller

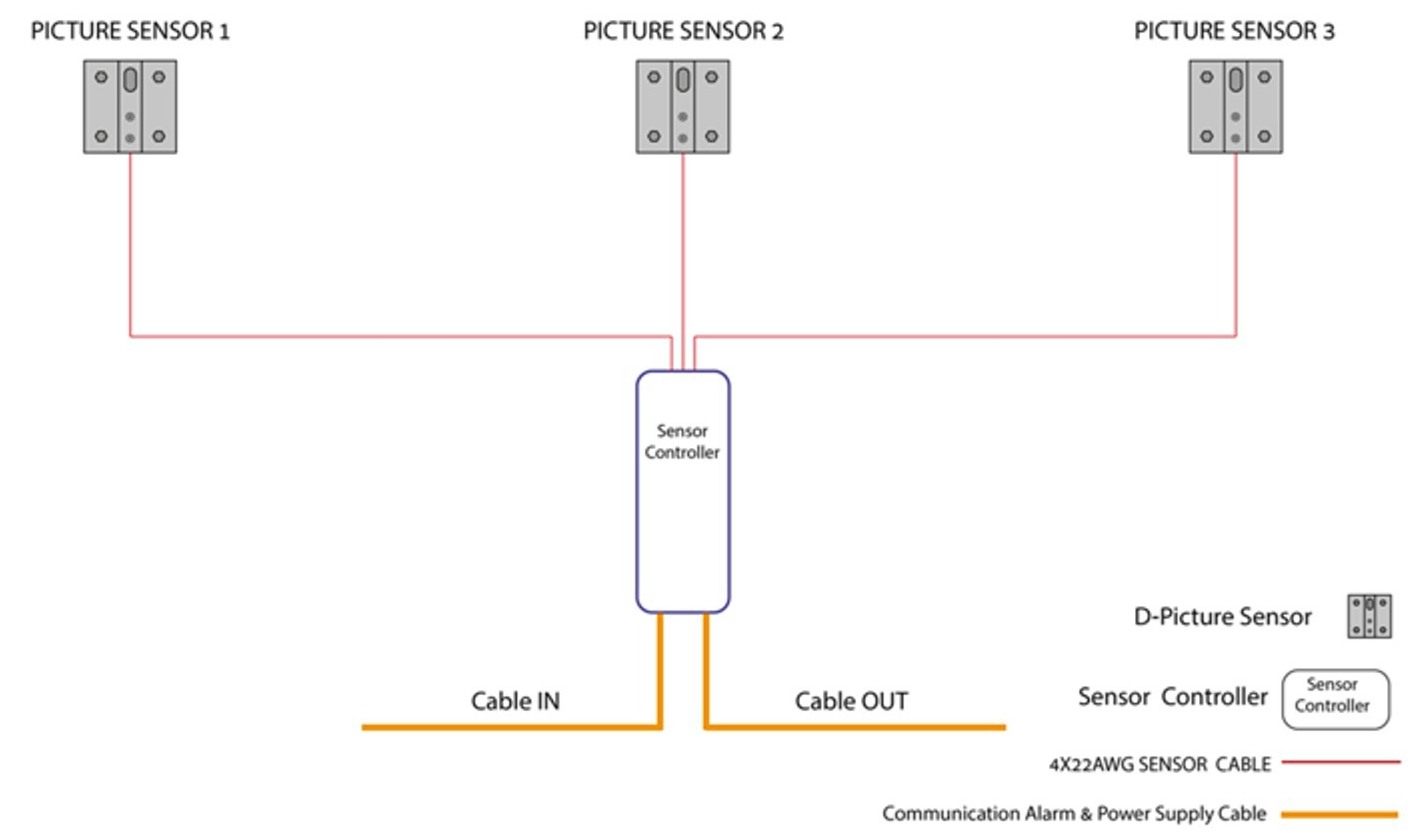

Picture sensors are wired (4 × 22 AWG) to a sensor controller that forms the alarm zone.
Zone alarm
Moving, lifting or replacing the painting triggers the zone output.
Floor warning
D-Pressure Strip in front of the artwork adds a warning on approach.
C&C room
Alarm, camera and SMS alert reach the control room and D-Command Control.

Seen in full.

Every image opens full size. Product sheets are shown whole, exactly as D-FENCE publishes them.

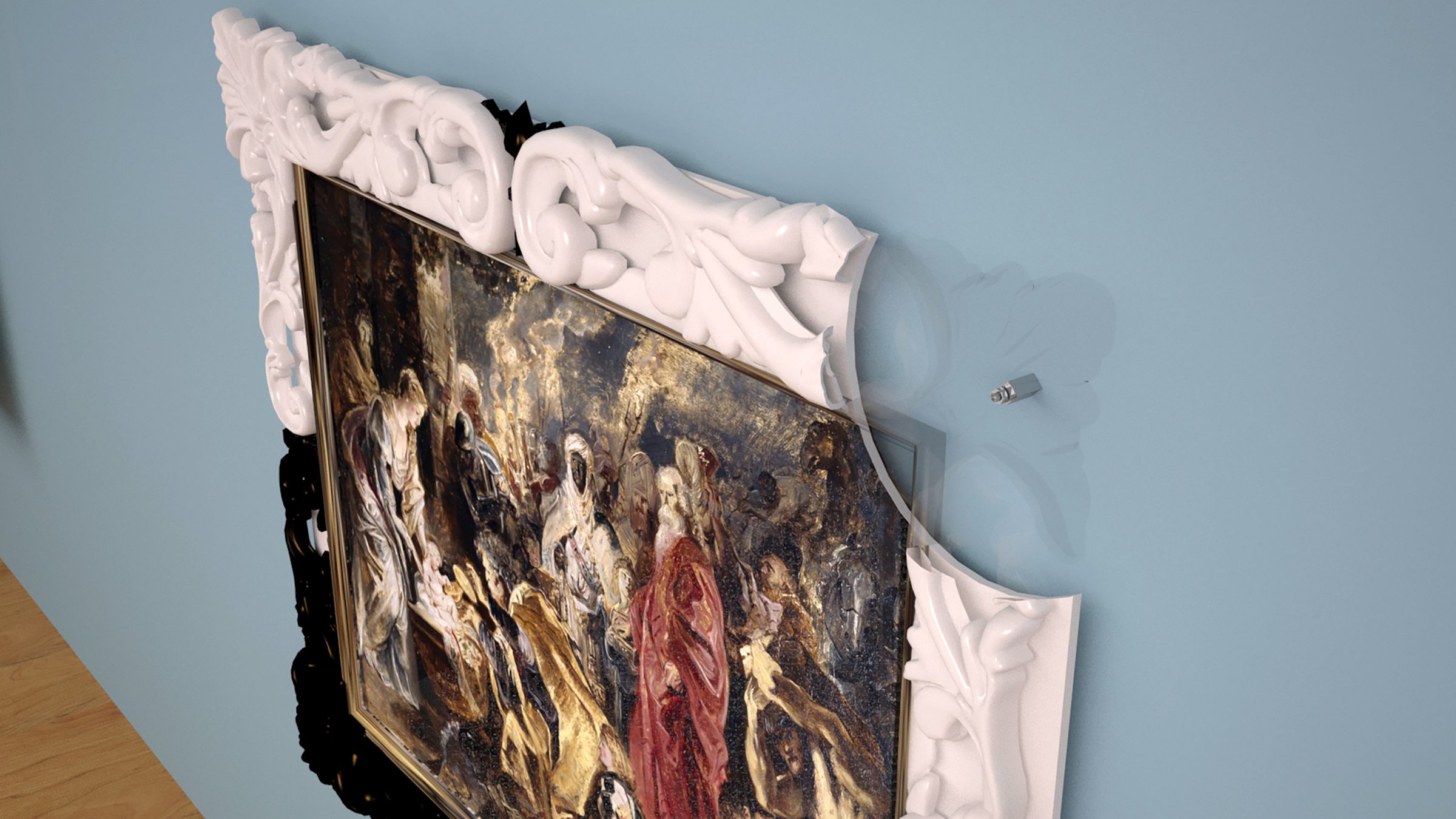

Close render of an ornate framed painting tilted off a pale-blue wall; the D-Picture sensor bolt is visible on the wall behind the frame — **FIG. 01**Behind the frame: the sensor that feels every movement.

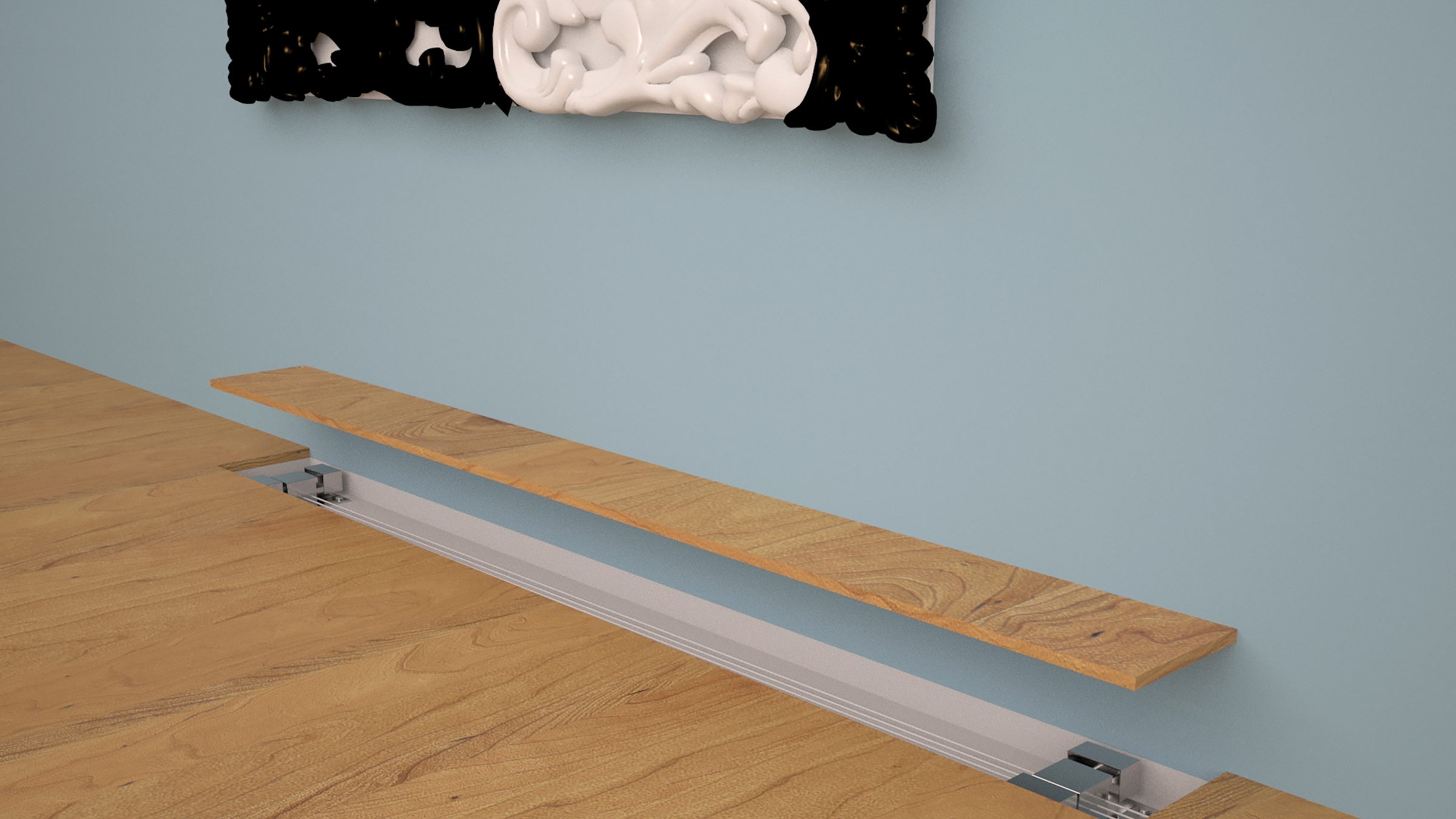

Gallery floor in front of a painting with one wooden board lifted, showing a pressure strip with sensors underneath — **FIG. 02**The floor in front of the artwork warns first.

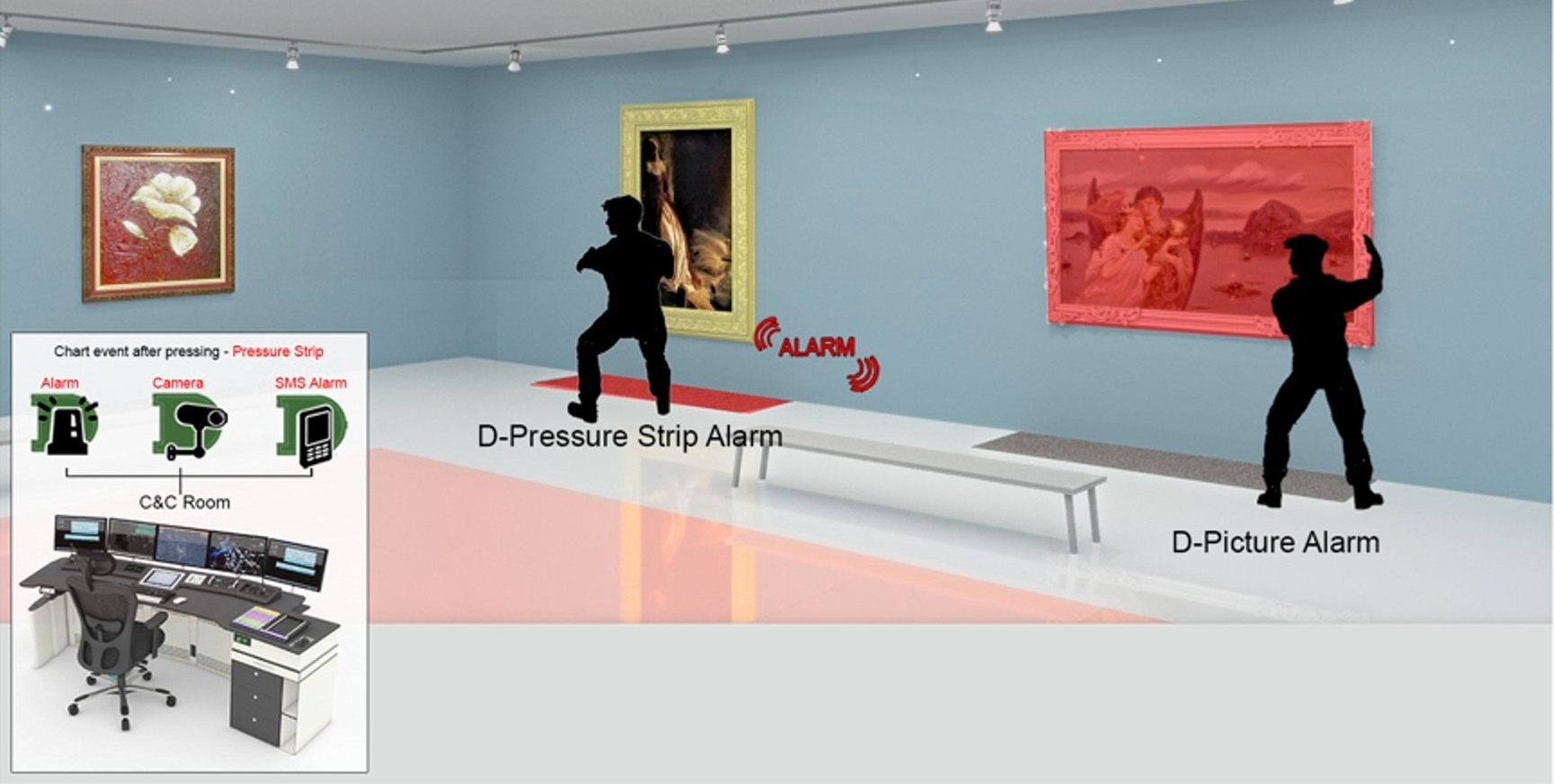

Museum scene: one intruder on the floor zone triggers 'D-Pressure Strip Alarm', another at a painting triggers 'D-Picture Alarm'; inset of the C&C room with alarm, camera and SMS icons — **FIG. 03**Two layers in one room: floor and picture.

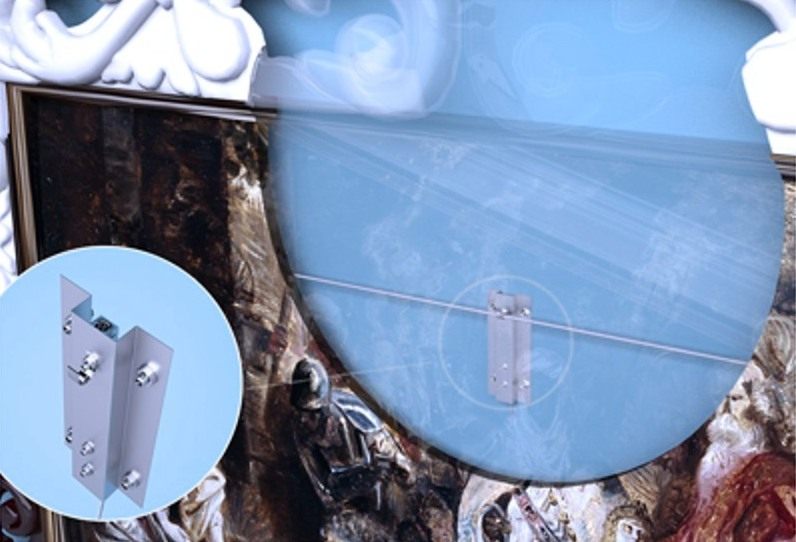

X-ray style view behind a painting showing the concealed D-Picture sensor, with a close-up of the sensor bracket — **FIG. 04**Completely hidden, fitted to the display.

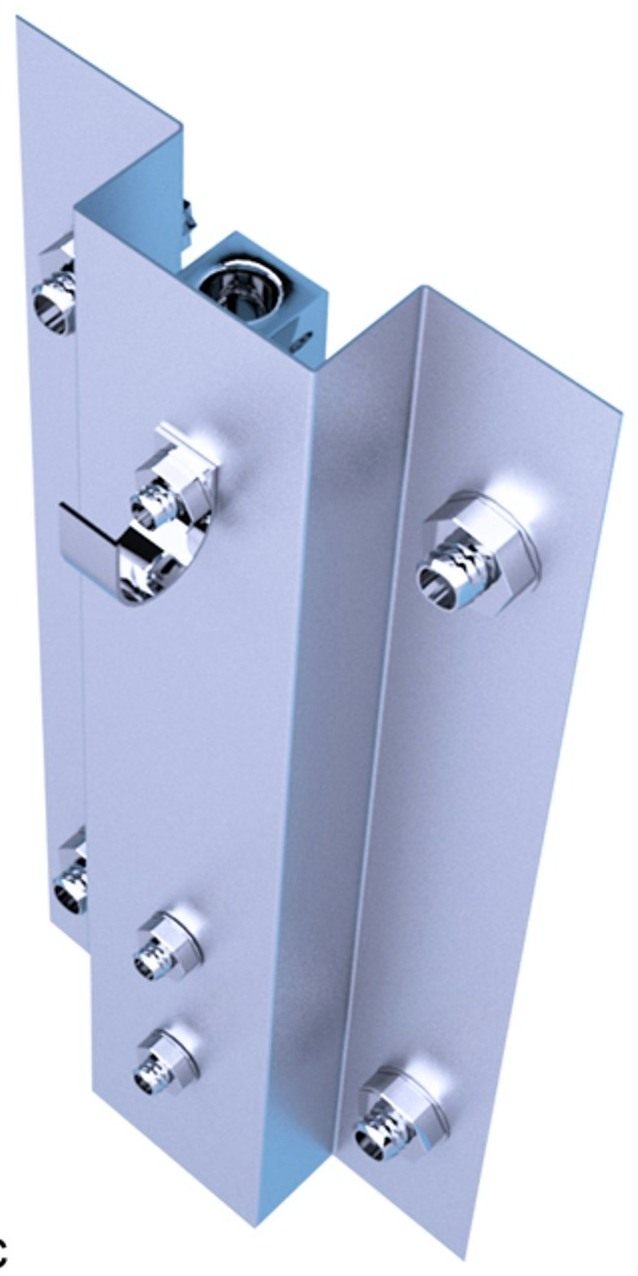

The silver D-Picture strain-gauge sensor with its bracket and bolts, on white — **FIG. 05**The D-Picture sensor.

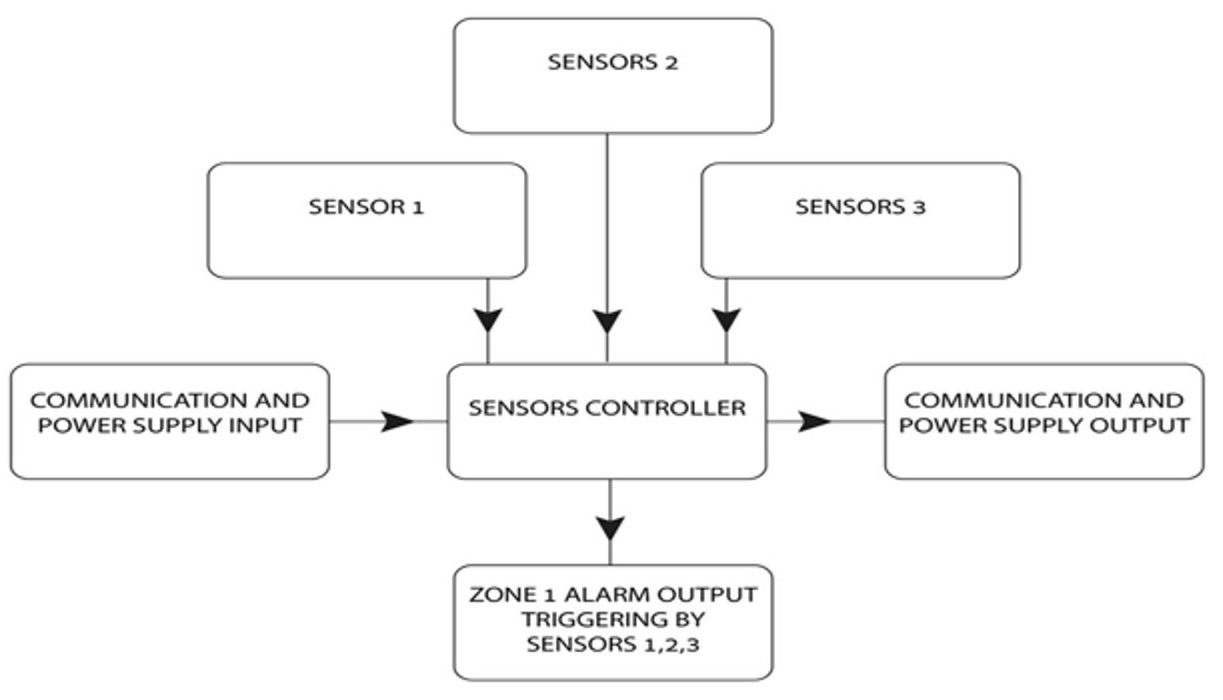

Block diagram: sensors 1, 2 and 3 feed a sensors controller, which outputs a zone 1 alarm; communication and power in and out — **FIG. 06**Three pictures, one sensor controller, one alarm zone.

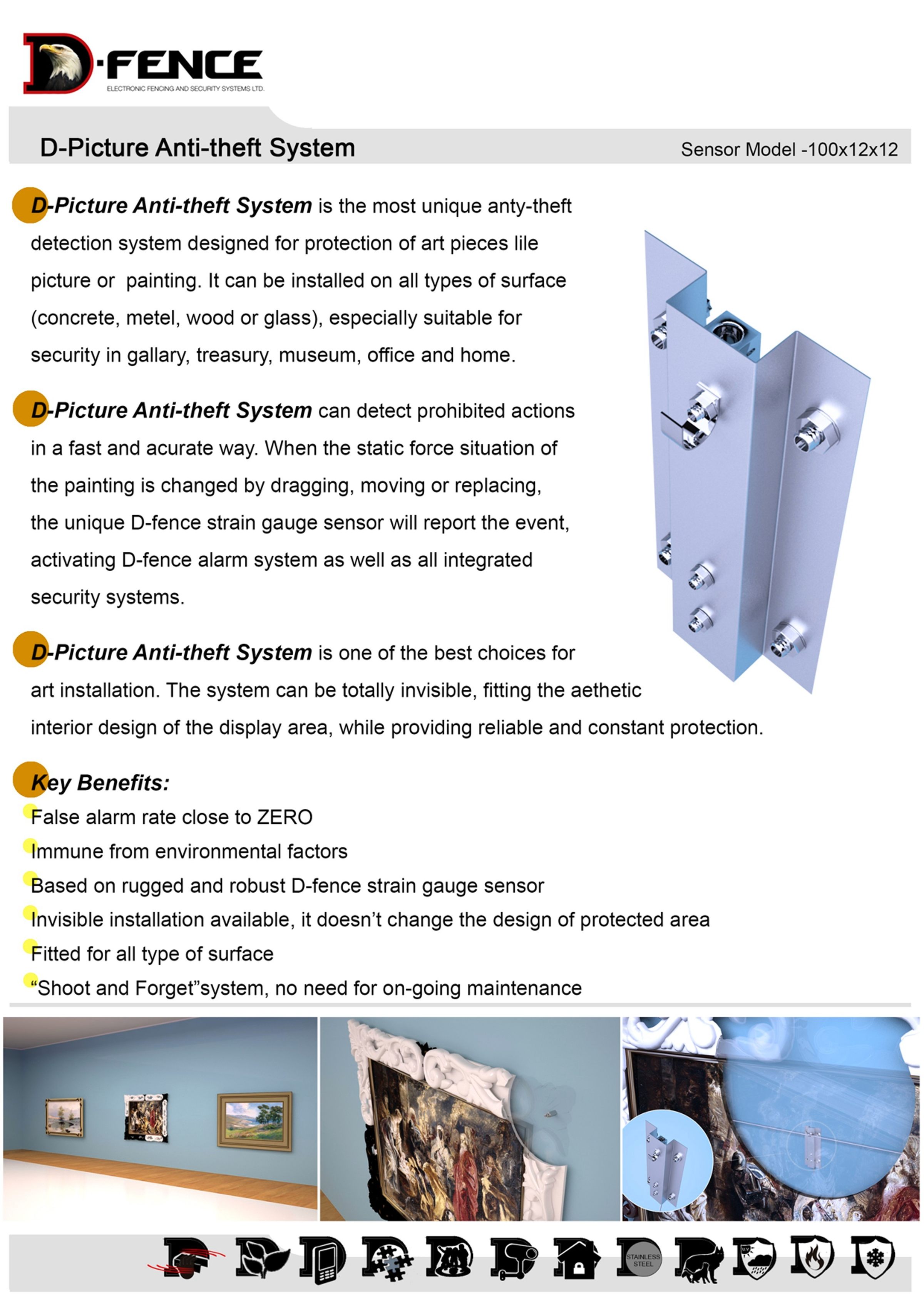

D-Picture catalogue overview page: description, key benefits and three gallery renders — **FIG. 07**The D-Picture catalogue page.

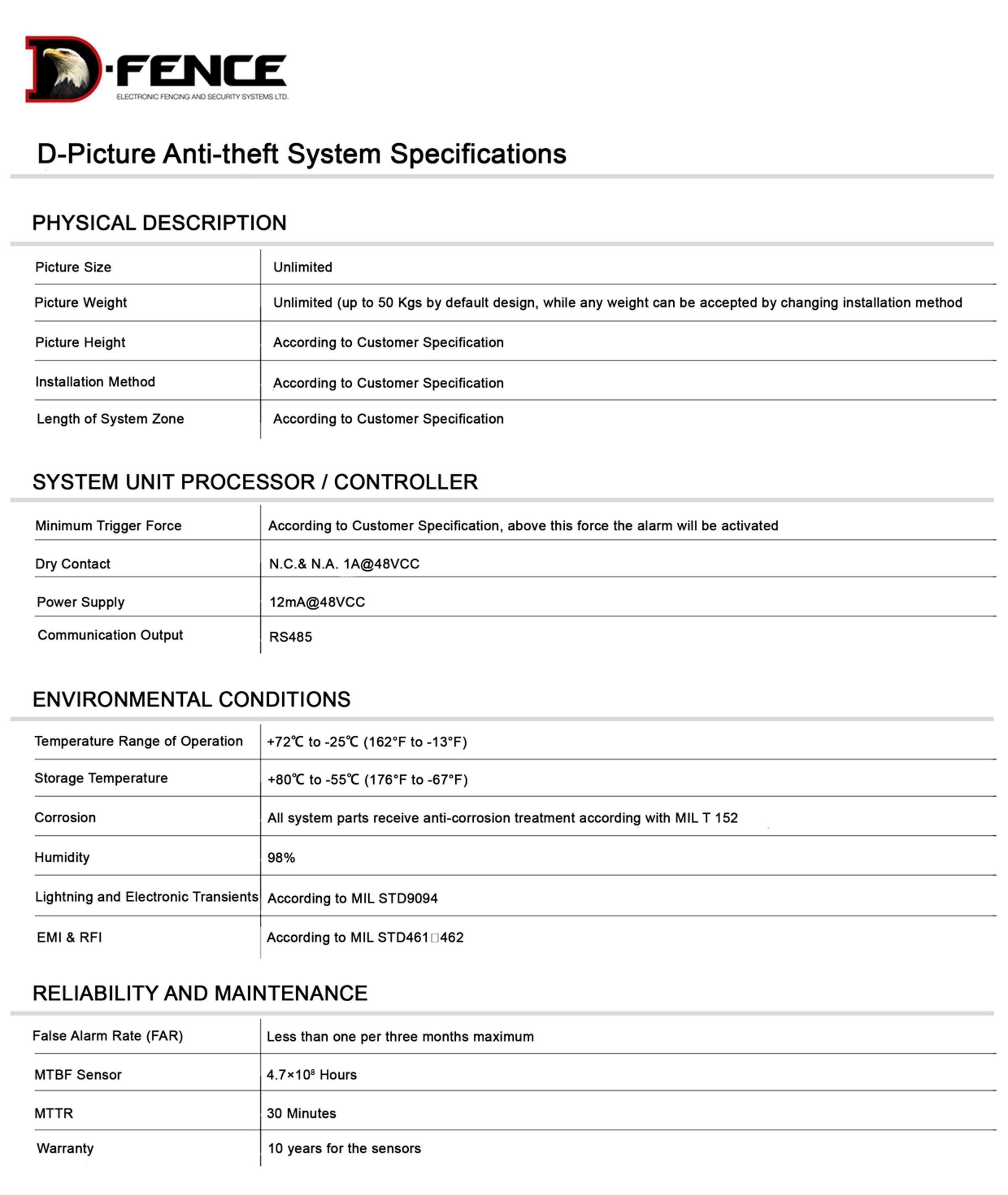

D-Picture specification table: physical description, system unit processor, environmental conditions, reliability and maintenance — **FIG. 08**D-Picture specifications (catalogue).

Specifications & documents.

SpecificationsD-Picture

Sensor model: 100 × 12 × 12
Mounting surfaces: Concrete, metal, wood or glass
Picture size: Unlimited
Picture weight: Up to 50 kg by default design; any weight by changing the installation method
Picture height / installation method / zone length: To customer specification
Minimum trigger force: To customer specification
Dry contact: N.O. & N.C., 1A@48VDC
Power supply: 12mA@48VDC
Communication output: RS485
Operating temperature: +72 °C to −25 °C (162 °F to −13 °F)
Storage temperature: +80 °C to −55 °C (176 °F to −67 °F)
Corrosion: Anti-corrosion treatment to MIL-T-152
Humidity: 98%
Lightning & electronic transients: MIL-STD-9094
EMI & RFI: MIL-STD-461 / 462
False alarm rate (catalogue): Less than 1 per 3 months
MTBF (sensor): 4.7 × 10⁸ h
MTTR: 30 min
Warranty: 10 years on the sensors

Specification text, ready for your tender.

Copy it into your specification. It describes the system by what it must do, so any alternative has to meet every point.

D-PictureTender specification textDatasheet

General
The system shall be D-Picture by D-FENCE Electronic Fencing and Security Systems Ltd. (ISO 9001:2015 certified quality management), or an approved equivalent that meets every requirement in this section.
Function
A hidden strain-gauge sensor behind each painting reports the moment it is dragged, lifted or replaced.
The system shall provide
- Reads the painting's weight: Any drag, lift or replacement changes the static force and raises the alarm.
- Any wall: Installs on concrete, metal, wood or glass.
- Invisible: Hidden behind the frame; the display design stays untouched.
- Any size: Unlimited picture size; up to 50 kg by default, any weight with another mounting.
- Shoot and forget: No ongoing maintenance, based on the rugged D-FENCE strain-gauge sensor.
- Integrated: Triggers the D-FENCE alarm, CCTV and SMS; dry contact and RS485 output.
Technical requirements
- Sensor model: 100 × 12 × 12
- Mounting surfaces: Concrete, metal, wood or glass
- Picture size: Unlimited
- Picture weight: Up to 50 kg by default design; any weight by changing the installation method
- Picture height / installation method / zone length: To customer specification
- Minimum trigger force: To customer specification
- Dry contact: N.O. & N.C., 1A@48VDC
- Power supply: 12mA@48VDC
- Communication output: RS485
- Operating temperature: +72 °C to −25 °C (162 °F to −13 °F)
- Storage temperature: +80 °C to −55 °C (176 °F to −67 °F)
- Corrosion: Anti-corrosion treatment to MIL-T-152
- Humidity: 98%
- Lightning & electronic transients: MIL-STD-9094
- EMI & RFI: MIL-STD-461 / 462
- False alarm rate (catalogue): Less than 1 per 3 months
- MTBF (sensor): 4.7 × 10⁸ h
- MTTR: 30 min
- Warranty: 10 years on the sensors
Detection sequence
1. Picture sensor: A strain-gauge sensor behind the frame reads the painting's static force.
2. Sensor controller: Picture sensors are wired (4 × 22 AWG) to a sensor controller that forms the alarm zone.
3. Zone alarm: Moving, lifting or replacing the painting triggers the zone output.
4. Floor warning: D-Pressure Strip in front of the artwork adds a warning on approach.
5. C&C room: Alarm, camera and SMS alert reach the control room and D-Command Control.
Submittals
Before installation, the contractor shall submit the manufacturer's datasheet, the installation instructions and the zone layout for approval.

D-Picture | Tender specification text

1. General
The system shall be D-Picture by D-FENCE Electronic Fencing and Security Systems Ltd. (ISO 9001:2015 certified quality management), or an approved equivalent that meets every requirement in this section.

2. Function
A hidden strain-gauge sensor behind each painting reports the moment it is dragged, lifted or replaced.

3. The system shall provide
- Reads the painting's weight: Any drag, lift or replacement changes the static force and raises the alarm.
- Any wall: Installs on concrete, metal, wood or glass.
- Invisible: Hidden behind the frame; the display design stays untouched.
- Any size: Unlimited picture size; up to 50 kg by default, any weight with another mounting.
- Shoot and forget: No ongoing maintenance, based on the rugged D-FENCE strain-gauge sensor.
- Integrated: Triggers the D-FENCE alarm, CCTV and SMS; dry contact and RS485 output.

4. Technical requirements
- Sensor model: 100 × 12 × 12
- Mounting surfaces: Concrete, metal, wood or glass
- Picture size: Unlimited
- Picture weight: Up to 50 kg by default design; any weight by changing the installation method
- Picture height / installation method / zone length: To customer specification
- Minimum trigger force: To customer specification
- Dry contact: N.O. & N.C., 1A@48VDC
- Power supply: 12mA@48VDC
- Communication output: RS485
- Operating temperature: +72 °C to −25 °C (162 °F to −13 °F)
- Storage temperature: +80 °C to −55 °C (176 °F to −67 °F)
- Corrosion: Anti-corrosion treatment to MIL-T-152
- Humidity: 98%
- Lightning & electronic transients: MIL-STD-9094
- EMI & RFI: MIL-STD-461 / 462
- False alarm rate (catalogue): Less than 1 per 3 months
- MTBF (sensor): 4.7 × 10⁸ h
- MTTR: 30 min
- Warranty: 10 years on the sensors

5. Detection sequence
5.1 Picture sensor: A strain-gauge sensor behind the frame reads the painting's static force.
5.2 Sensor controller: Picture sensors are wired (4 × 22 AWG) to a sensor controller that forms the alarm zone.
5.3 Zone alarm: Moving, lifting or replacing the painting triggers the zone output.
5.4 Floor warning: D-Pressure Strip in front of the artwork adds a warning on approach.
5.5 C&C room: Alarm, camera and SMS alert reach the control room and D-Command Control.

6. Submittals
Before installation, the contractor shall submit the manufacturer's datasheet, the installation instructions and the zone layout for approval.
