The threat · Unauthorised vehicles on your access roads?

D-Truck Strip

A pressure strip across the road that reports every unauthorised vehicle, fixed in place or deployed in minutes where you need it.

Based on D-Pressure Strip
Mobile or fixedCovers up to 350 kgIP65 / IP68
Discuss your project Catalog

For integrators & consultants

L4LayerGround & approaches
DatasheetPDF · 324 KBTender specification textCopy text

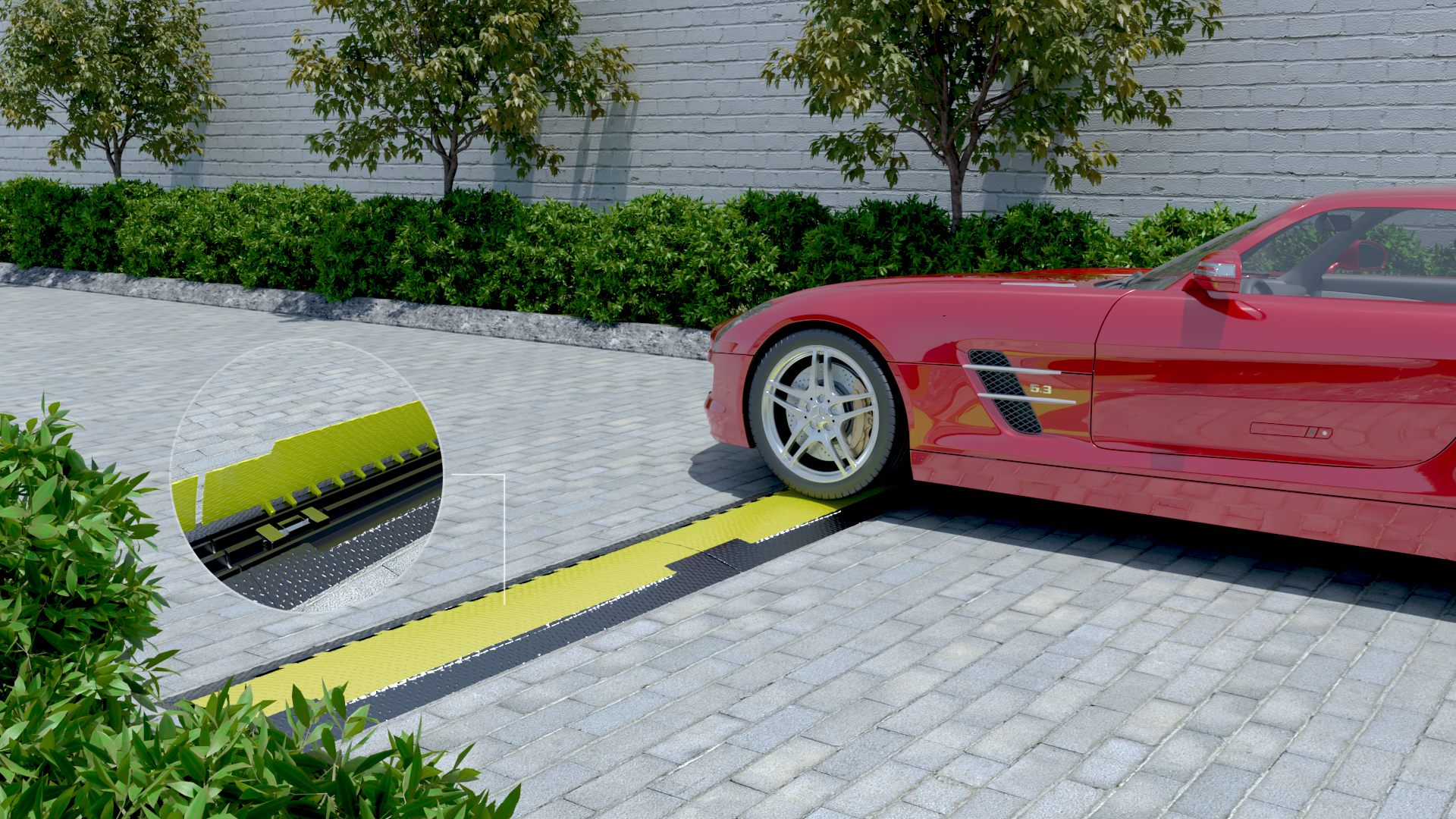

Paved driveway beside a hedge: a red car's front wheel on a yellow D-Truck Strip; the inset shows the cover lifted over the sensor channel

Know the moment a vehicle enters.

Based on the field-tested D-Pressure Strip, D-FENCE developed the D-Truck Strip to protect roads and access routes. It detects unauthorised vehicles on access roads, access routes and in the entry ways of any site, including remote ones such as agricultural fields, oil and water wells and telecommunication stations.

01

Every entry road covered

Close each crossing into the site, not just the main gate.

02

Up in minutes, anywhere

Lay a mobile strip where the risk is today, and move it tomorrow.

03

Built on proven sensing

The same pressure technology as the field-tested D-Pressure Strip.

The strip can be mobile or fixed. A mobile system is deployed in minutes, visible or hidden, and sends its alarms by cable and/or wirelessly; a fixed system can also be visible or hidden. The control box can be buried out of sight beside the road.

In the D-FENCE pipeline concept, the D-Truck Strip guards the vehicle routes while D-Ground covers people approaching on foot. Alarms leave on dry contacts or RS232 / RS485 to cameras, the control room and D-Command Control.

From the first touch to the right response.

  1. Strip on the road

    The D-Truck Strip is laid across the access route, visible or hidden.

  2. Vehicle crosses

    Wheel load on the cover passes the alarm threshold.

  3. Control box

    A hidden control box sends the alarm by cable and/or wirelessly.

  4. Response

    Cameras, the control room and D-Command Control receive the event.

Seen in full.

Every image opens full size. Product sheets are shown whole, exactly as D-FENCE publishes them.

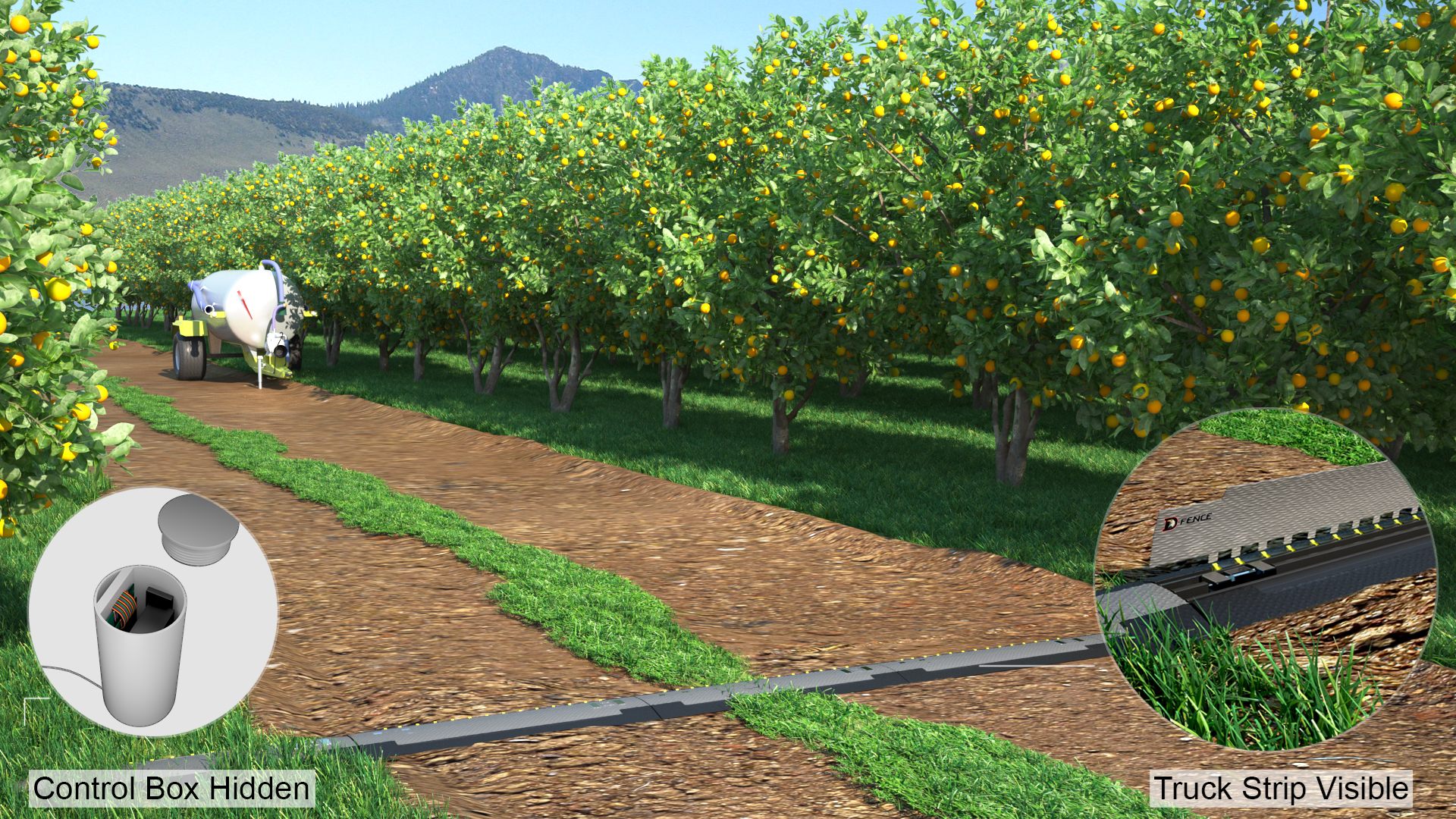

FIG. 01Remote fields: control box hidden, strip visible.

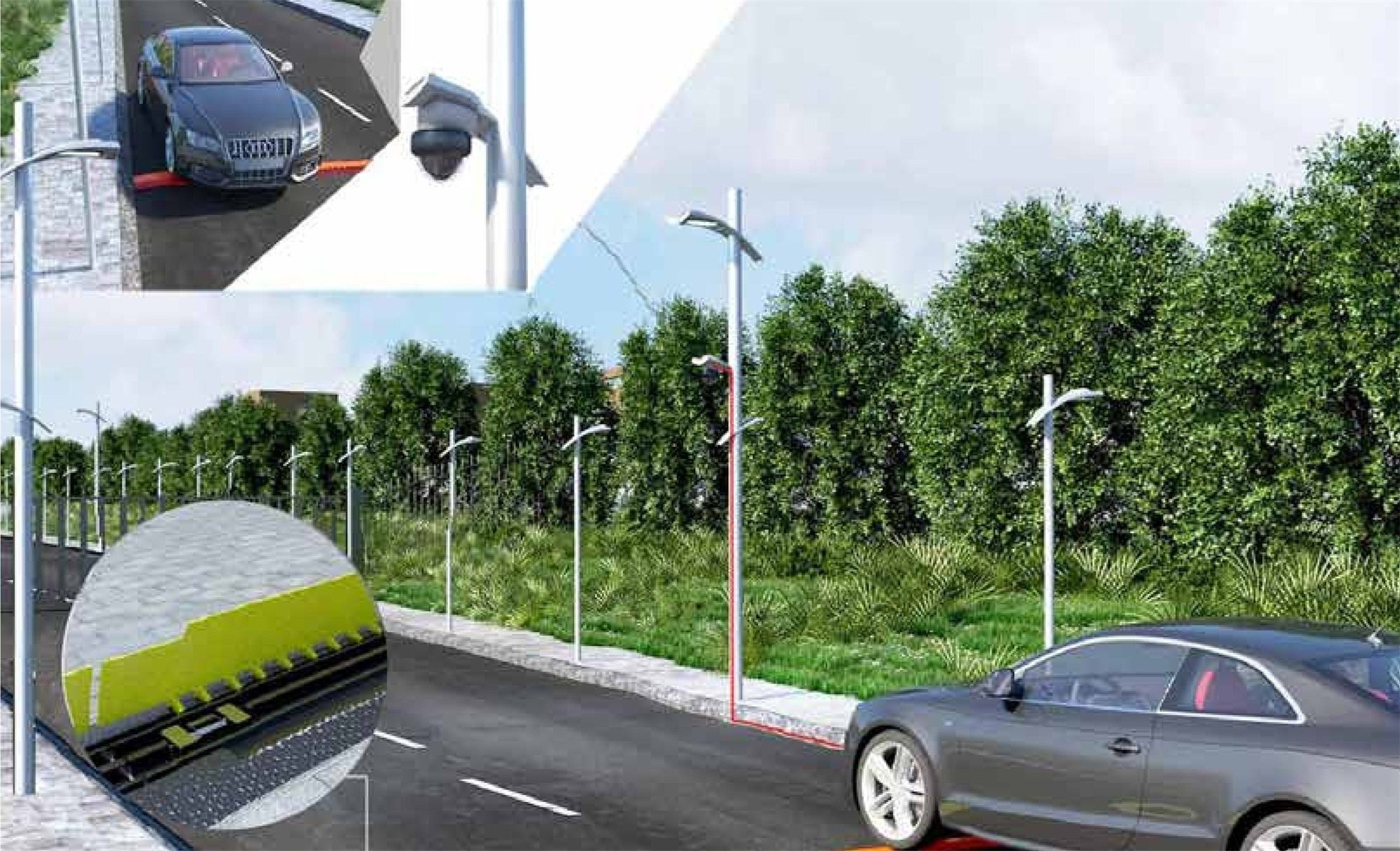

FIG. 02Access routes: the strip triggers, the camera sees the vehicle.
FIG. 03A logistics yard with one line across the entrance.

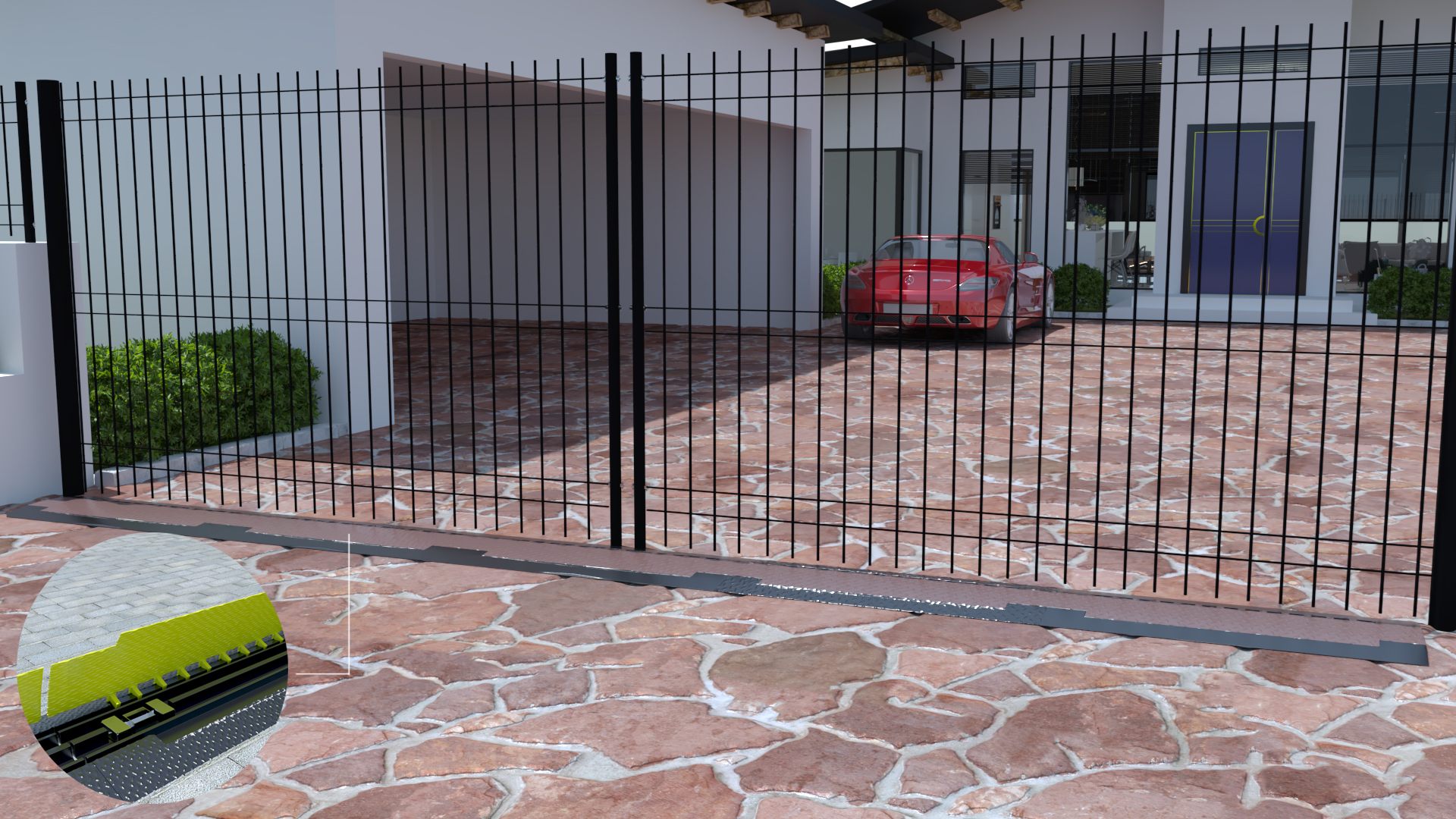

FIG. 04At the gate: a vehicle cannot enter unannounced.

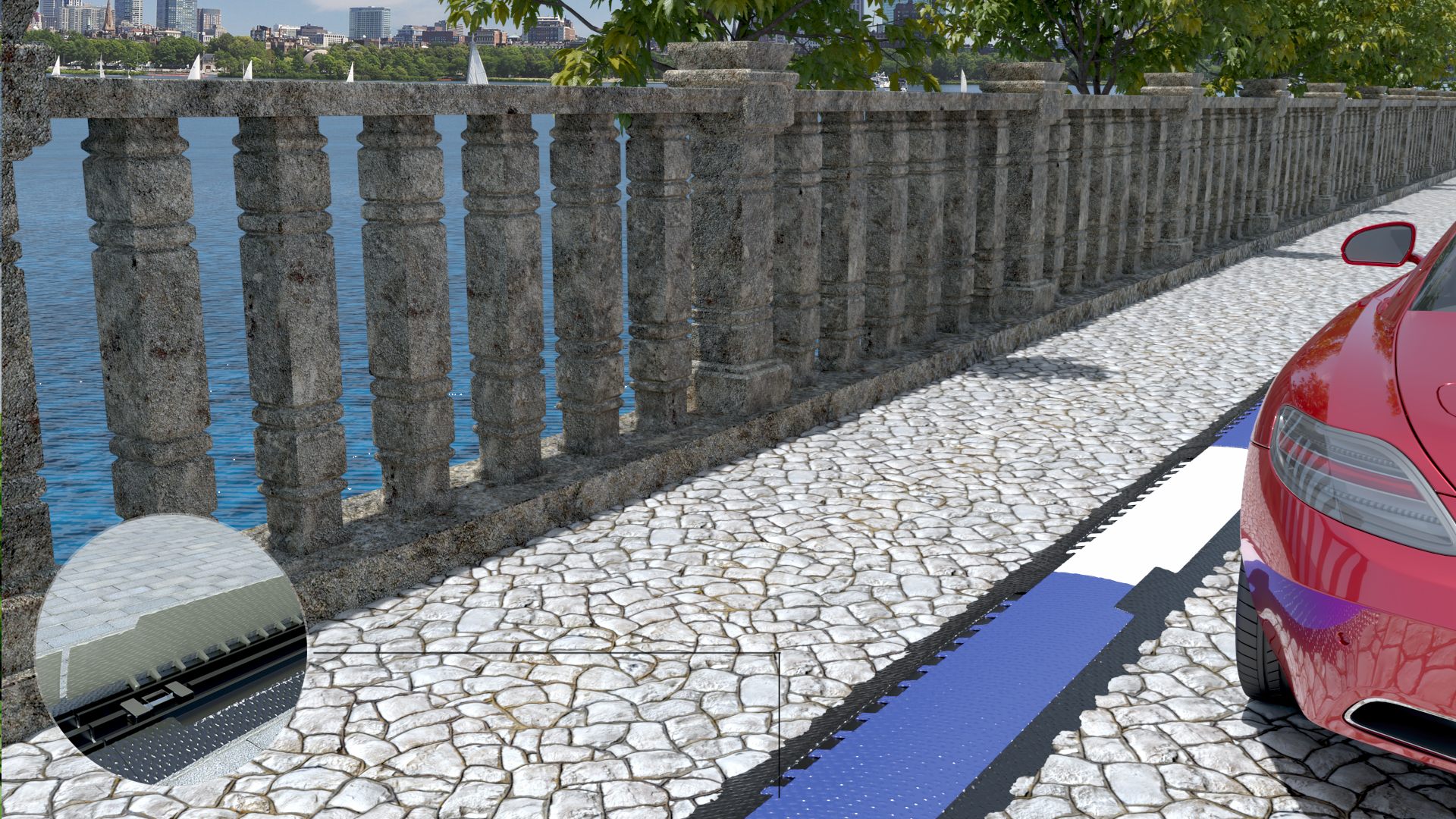

FIG. 05Cover colour and design to the site.

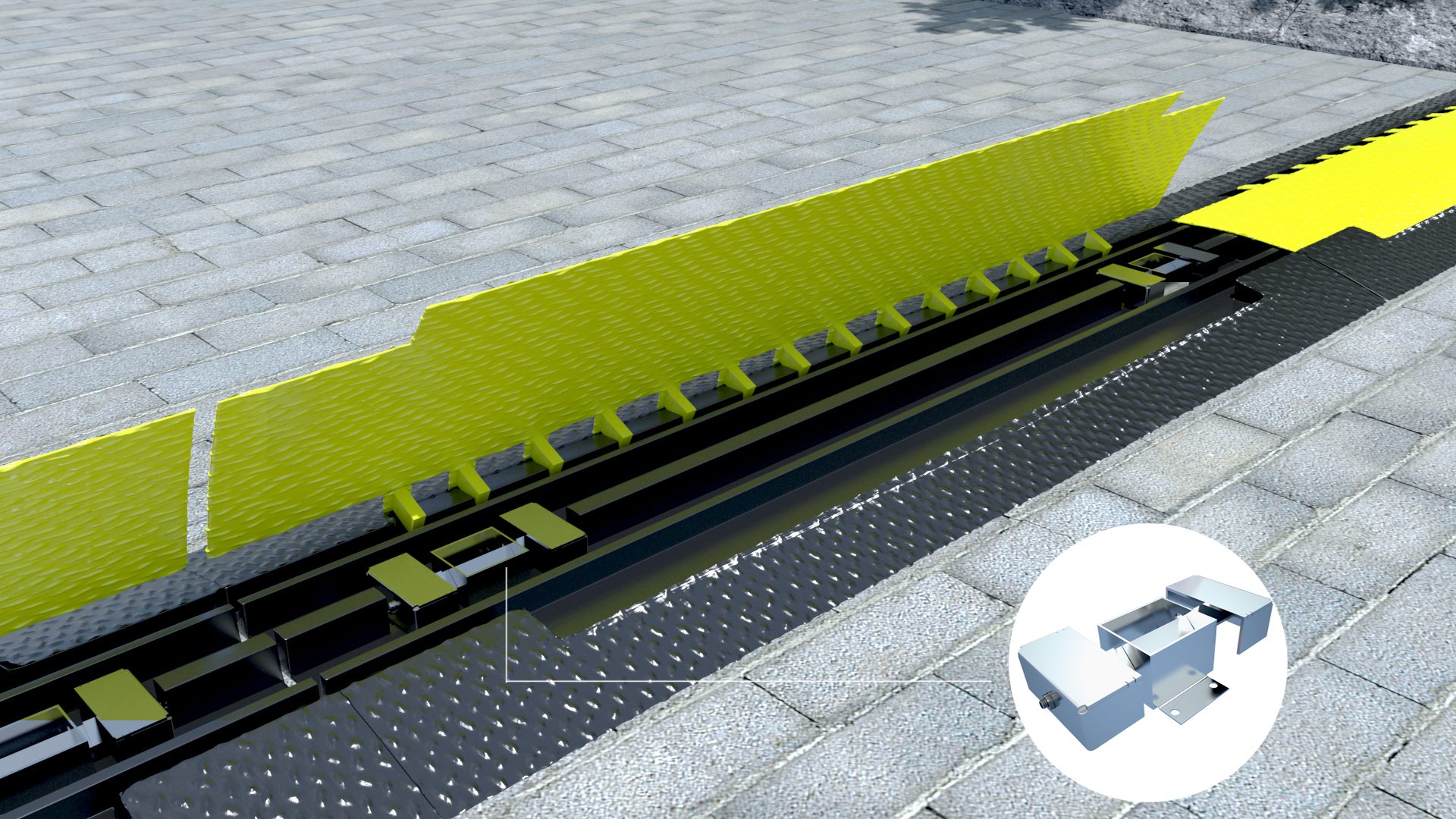

FIG. 06Under the cover: the D-FENCE pressure sensor.

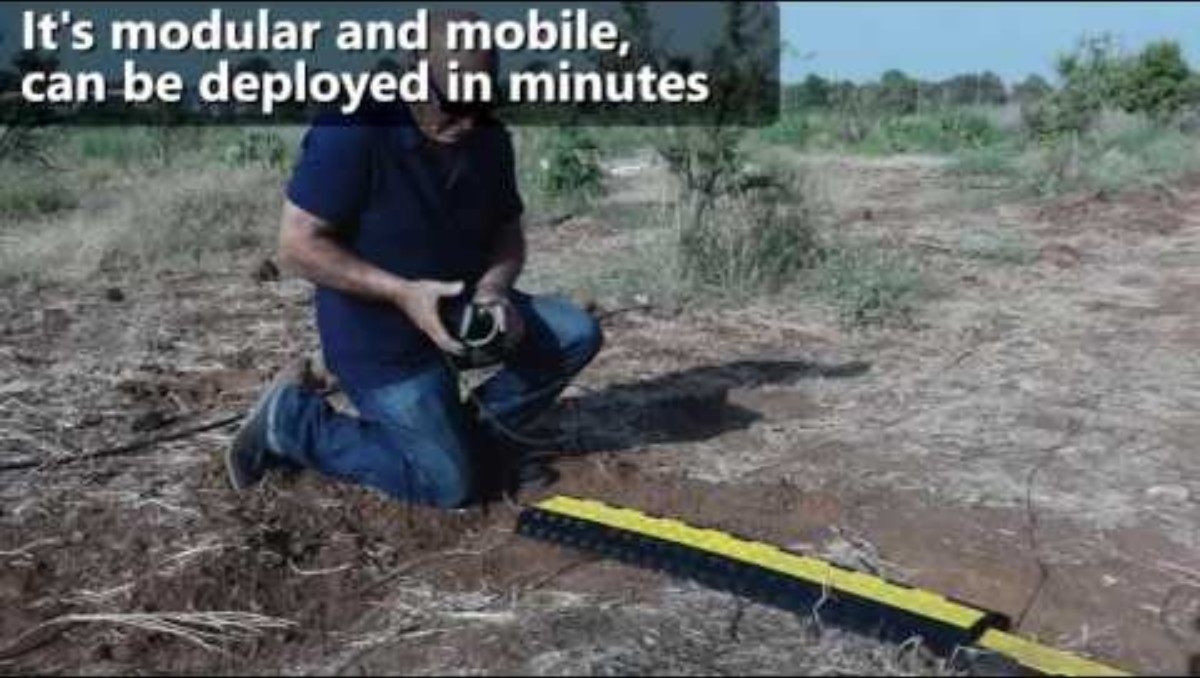

FIG. 07Modular and mobile: deployed in minutes.

Specifications & documents.

SpecificationsD-Truck Strip
Based on
D-Pressure Strip PIDS
Deployment
Mobile (deployed in minutes) or fixed; visible or hidden
Alarm link
Cable and/or wireless (mobile system)
System length
Unlimited
Cover weight
Up to 350 kg
Cover height / design
To customer specification
Length of system zone
12 m, 24 m
Minimum trigger force
Usually 15 kg above the static weight of the cover; adjustable per project
Dry contact
N.O. & N.C.
Power supply
48 VDC / 12 VDC
Communication output
RS232 / RS485
Operating temperature
+72 °C to −25 °C (162 °F to −13 °F)
Storage temperature
+80 °C to −55 °C (176 °F to −67 °F)
Materials / corrosion
Stainless steel or aluminium; anti-corrosion treatment to MIL-T-152
Humidity / ingress
95%, IP65 / IP68
Transients / EMI
MIL-STD-9094; MIL-STD-461, 462
False alarm rate (catalogue)
Less than 1 per km per 3 months
MTBF (sensor)
4.7 × 10⁸ h
MTTR
30 min
Warranty
10 years on the sensors

Specification text, ready for your tender.

Copy it into your specification. It describes the system by what it must do, so any alternative has to meet every point.

D-Truck StripTender specification textDatasheet

  1. General

    The system shall be D-Truck Strip by D-FENCE Electronic Fencing and Security Systems Ltd. (ISO 9001:2015 certified quality management), or an approved equivalent that meets every requirement in this section.

  2. Function

    A pressure strip across the road that reports every unauthorised vehicle, fixed in place or deployed in minutes where you need it.

  3. The system shall provide

    • Mobile or fixed: A mobile strip is deployed in minutes; a fixed one is built into the road.
    • Visible or hidden: A visible deterrent, or a strip nobody knows is there.
    • Cable or wireless: Mobile systems send alarms by cable and/or wirelessly.
    • Remote sites: Agricultural fields, oil and water wells, telecommunication stations.
    • Heavy-duty cover: Covers of up to 350 kg; stainless-steel or aluminium parts; IP65 / IP68.
    • Adjustable threshold: Usually 15 kg above the cover weight, adjustable per project.

  4. Technical requirements

    • Based on: D-Pressure Strip PIDS
    • Deployment: Mobile (deployed in minutes) or fixed; visible or hidden
    • Alarm link: Cable and/or wireless (mobile system)
    • System length: Unlimited
    • Cover weight: Up to 350 kg
    • Cover height / design: To customer specification
    • Length of system zone: 12 m, 24 m
    • Minimum trigger force: Usually 15 kg above the static weight of the cover; adjustable per project
    • Dry contact: N.O. & N.C.
    • Power supply: 48 VDC / 12 VDC
    • Communication output: RS232 / RS485
    • Operating temperature: +72 °C to −25 °C (162 °F to −13 °F)
    • Storage temperature: +80 °C to −55 °C (176 °F to −67 °F)
    • Materials / corrosion: Stainless steel or aluminium; anti-corrosion treatment to MIL-T-152
    • Humidity / ingress: 95%, IP65 / IP68
    • Transients / EMI: MIL-STD-9094; MIL-STD-461, 462
    • False alarm rate (catalogue): Less than 1 per km per 3 months
    • MTBF (sensor): 4.7 × 10⁸ h
    • MTTR: 30 min
    • Warranty: 10 years on the sensors

  5. Detection sequence

    1. Strip on the road: The D-Truck Strip is laid across the access route, visible or hidden.
    2. Vehicle crosses: Wheel load on the cover passes the alarm threshold.
    3. Control box: A hidden control box sends the alarm by cable and/or wirelessly.
    4. Response: Cameras, the control room and D-Command Control receive the event.

  6. Submittals

    Before installation, the contractor shall submit the manufacturer's datasheet, the installation instructions and the zone layout for approval.
