D-Field Fence

Name: D-Field Fence
Brand: D-FENCE

Standard field fencing with D-FENCE sensor posts: fast to deploy along long open perimeters, as a retrofit or stand-alone.

Patented

15 kg triggerZones up to 90 mRetrofit or stand-alone

Discuss your project Catalog

For integrators & consultants

L3LayerThe perimeter line

DatasheetPDF · 328 KB Tender specification textCopy text

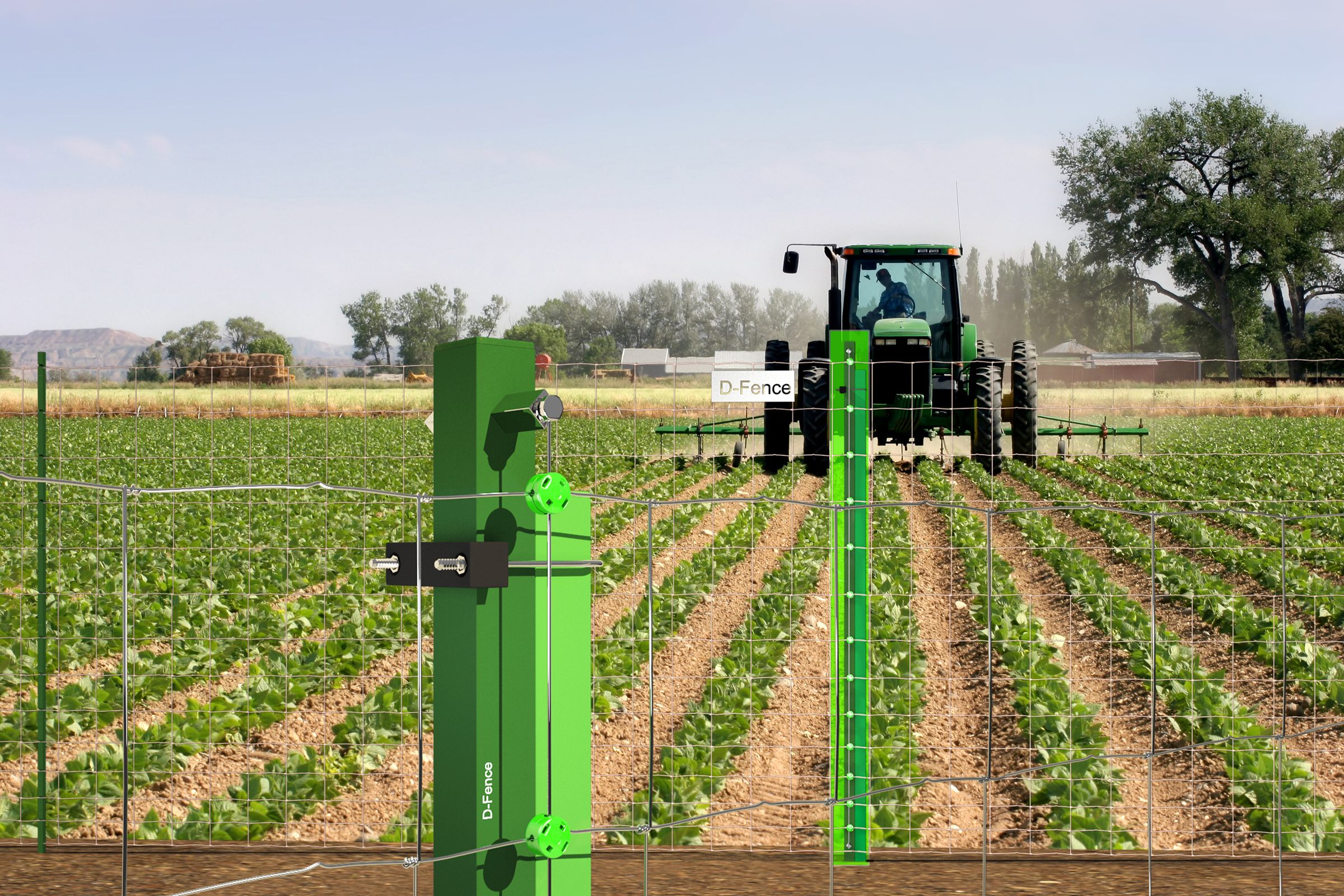

Render: green D-FENCE sensor posts in a field fence around a crop field, with a tractor working behind

Kilometres of open field, no early warning?

Farms, reservoirs, railways and pipelines run through open country, often with no fence at all or only a simple wire one. Crossing it is easy, and nobody is told.

Fast over long distances

Built on standard field fencing; no special skills or tools needed.

Retrofit or stand-alone

Add it to an existing fence or wall, or build a new line where there is none.

No high voltage

Electronic detection instead of a shock fence: no 10,000 V, no radiation.

The D-Field Fence builds on well-known, cost-effective field-type fencing. D-FENCE sensor posts are set into the fence line at any height the site needs, without special skills or tools, and a climb or cut on the wire raises an alarm with its location.

Fit it to an existing fence or wall, or put up a stand-alone line where there is no fence. It belongs to D-FENCE's Green Security Revolution family: electronic detection instead of a high-voltage shock fence.

From the first touch to the right response.

Sensor posts in the line
D-FENCE sensor posts carry the field-fence wire at the height you need.
Force on the wire
A climb or a cut adds load; typically 15 kg above the static load triggers the alarm.
Processing unit
Up to 24 sensors per unit, in zones of up to 90 m.
Alarm out
Dry contact or RS232 / RS485 to your alarm system, cameras or D-Command Control.

Seen in full.

Every image opens full size. Product sheets are shown whole, exactly as D-FENCE publishes them.

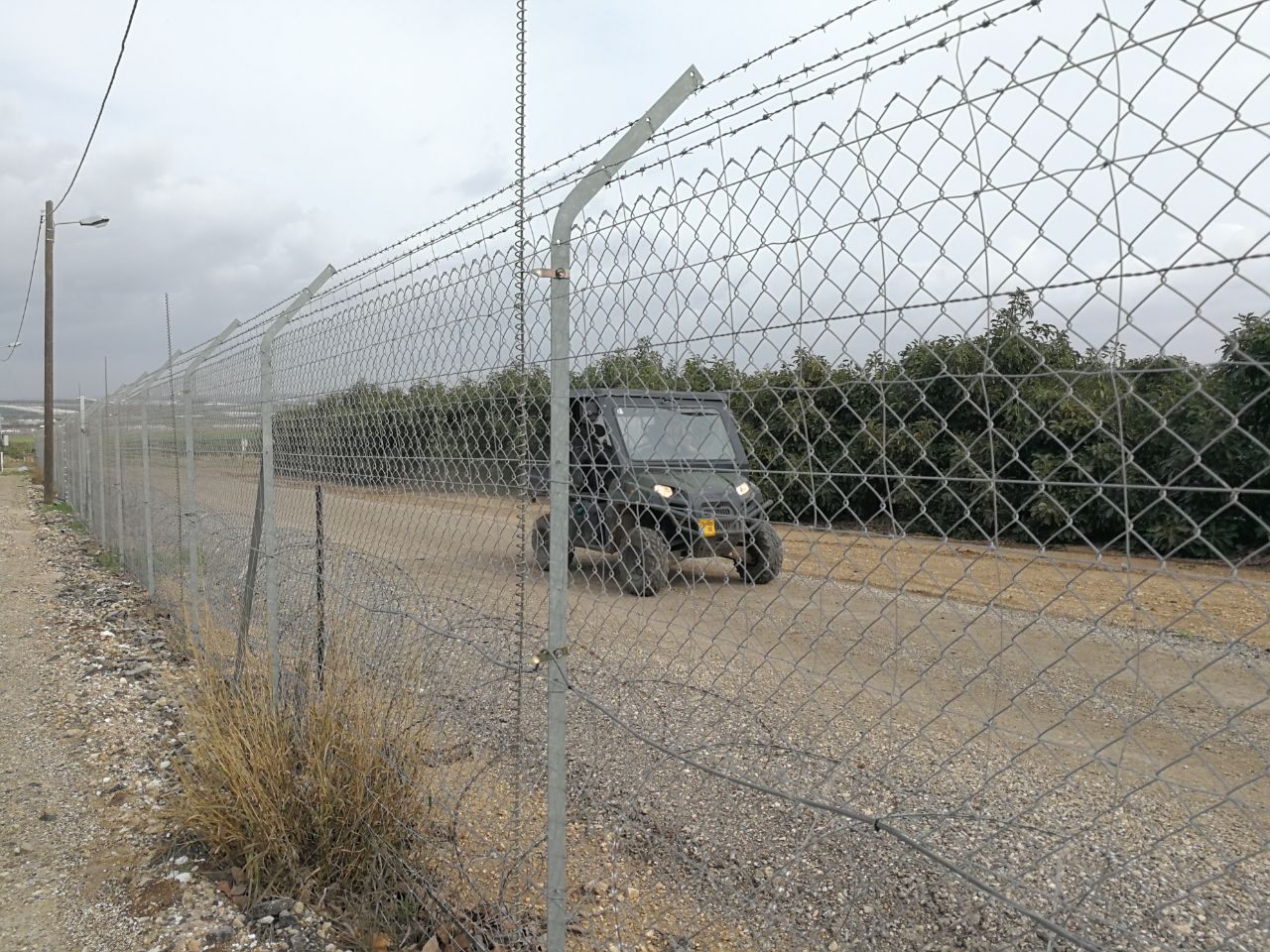

Field fence with a barbed-wire top along an agricultural perimeter road; a patrol vehicle drives inside the fence past an orchard — **FIG. 01**Agricultural perimeter, Israel

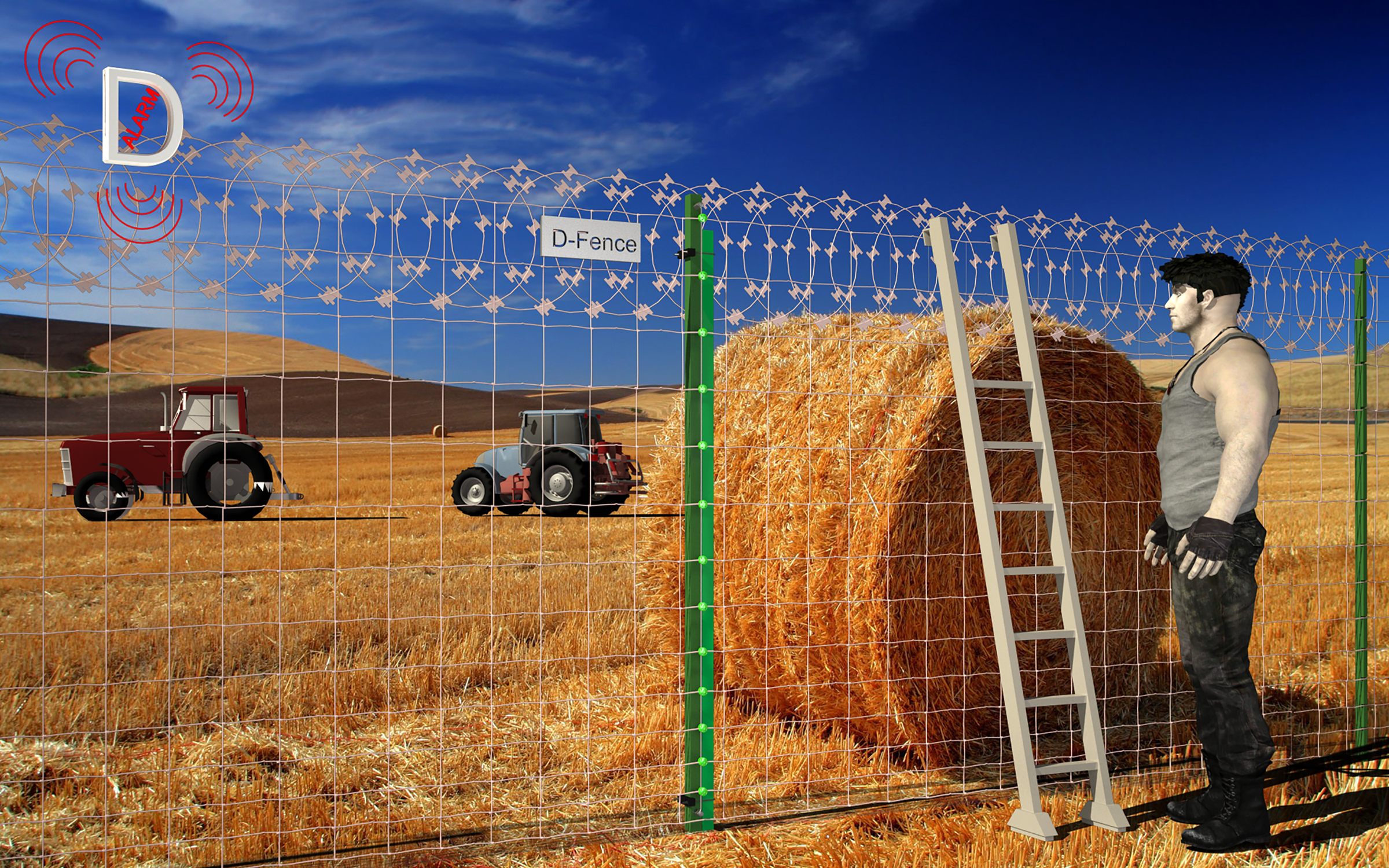

Render: an intruder sets a ladder against the field fence beside a hay bale; the D-FENCE sensor posts raise an alarm — **FIG. 02**Climb attempt: alarm

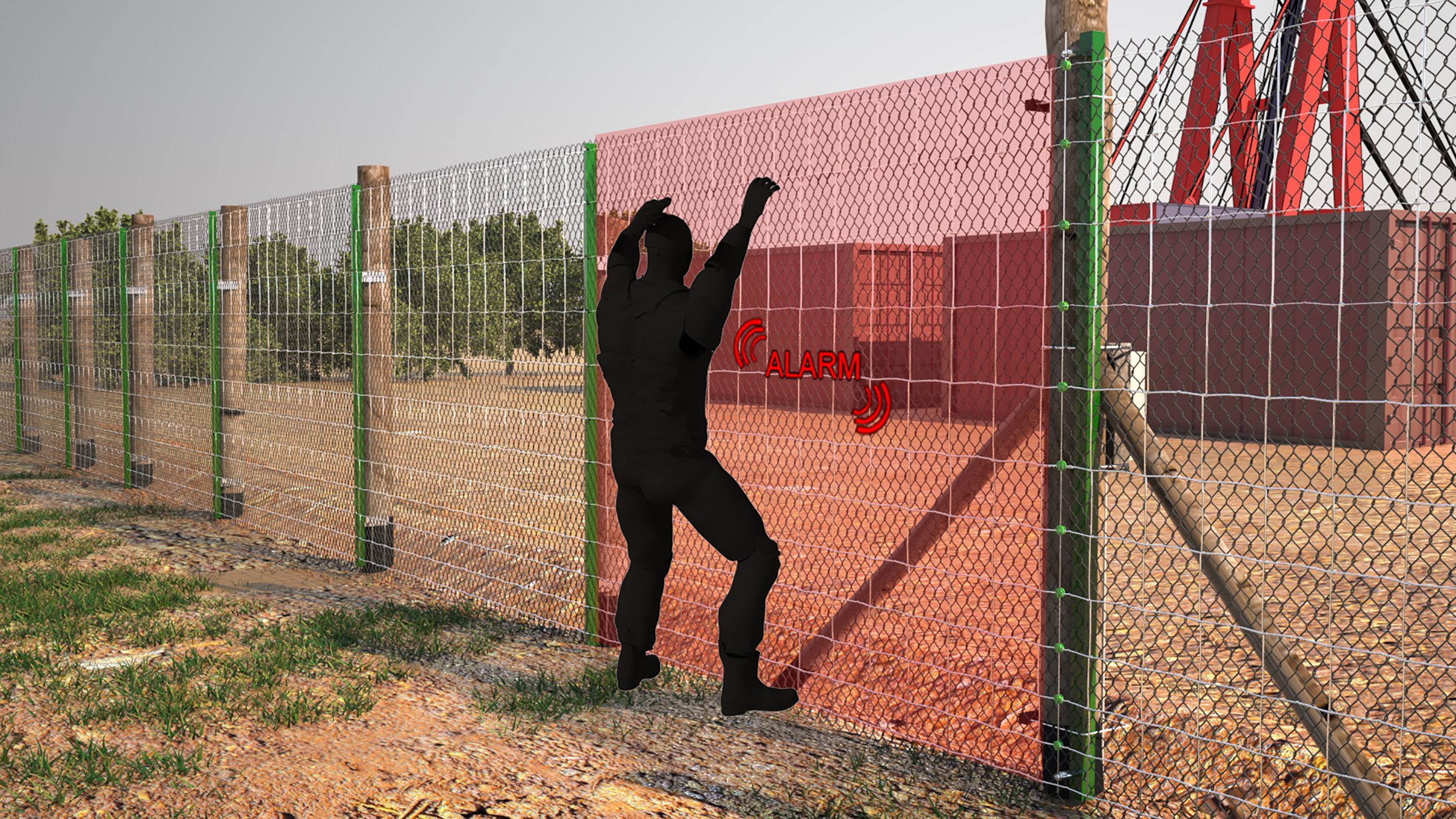

Render: an intruder climbs a field fence with wooden and green D-FENCE sensor posts; the attacked zone lights red with an alarm — **FIG. 03**Zone alarm at an industrial yard

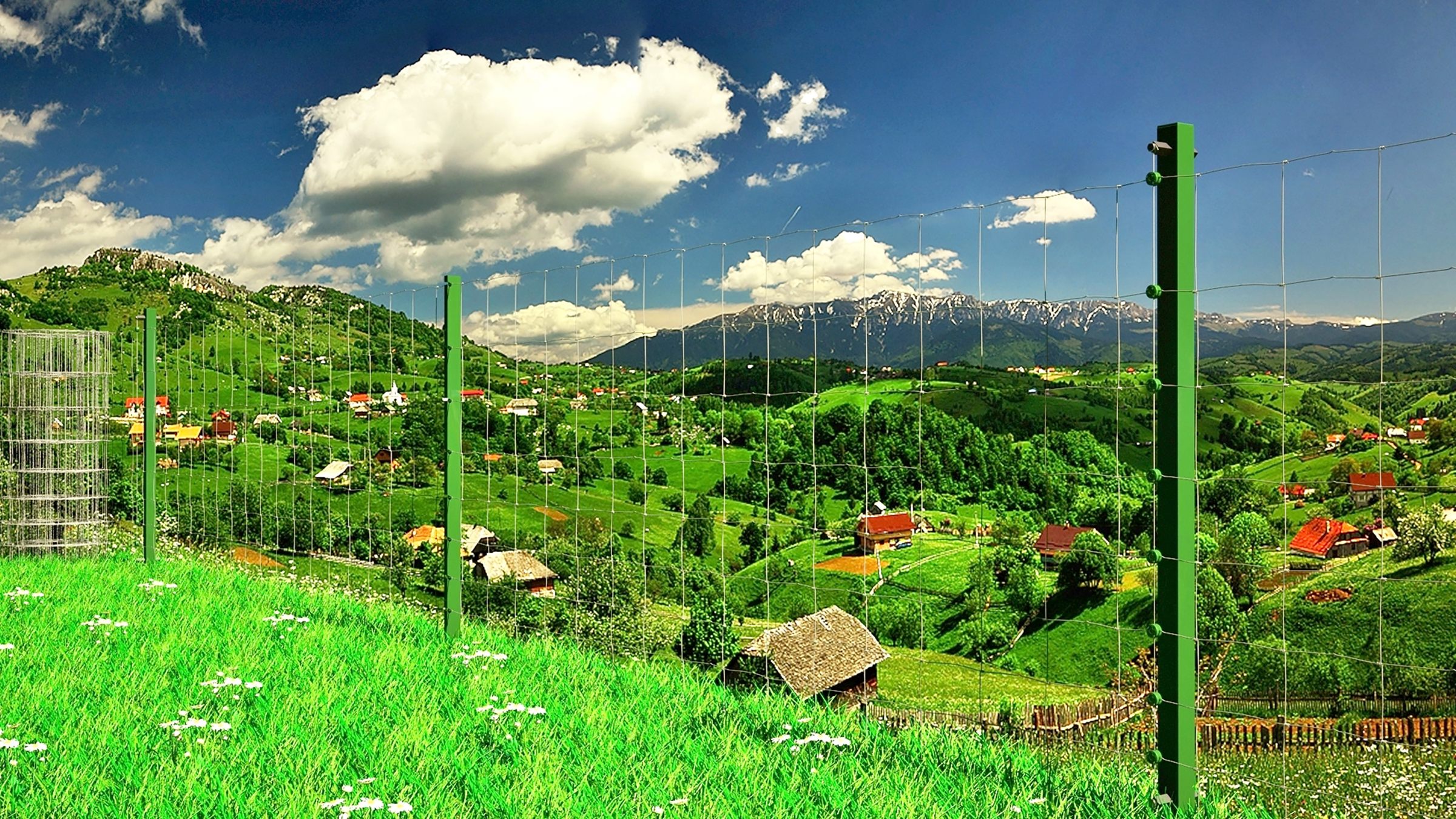

Render: field fence with green D-FENCE sensor posts on a hillside above a mountain valley — **FIG. 04**Open terrain

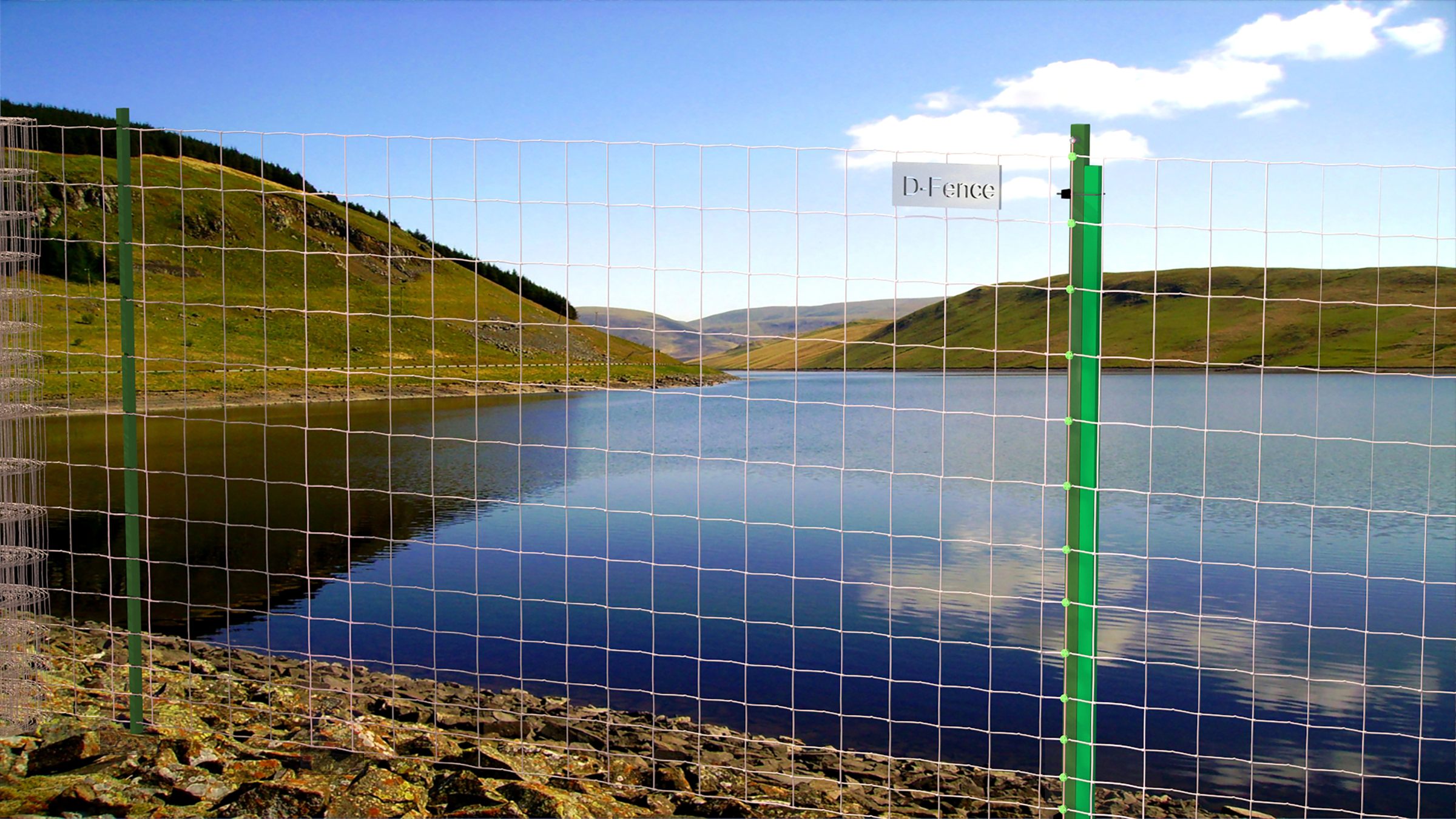

Render: D-Field Fence with a sensor post along the shore of a water reservoir — **FIG. 05**Water reservoir

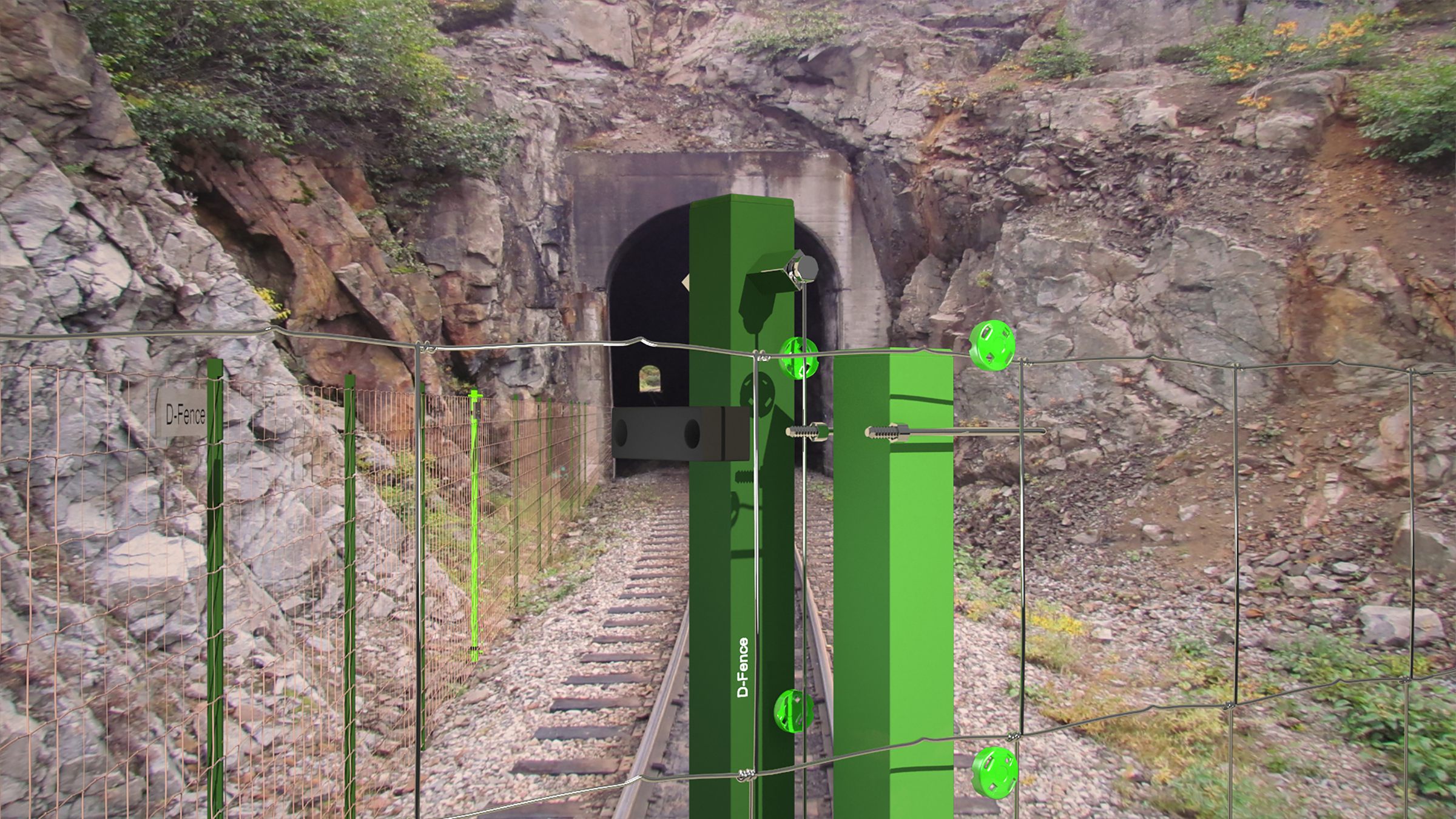

Render: sensor posts on a field fence beside a railway line at a tunnel portal — **FIG. 06**Railway corridor

Render: field fence with a green sensor post alongside an above-ground pipeline — **FIG. 07**Pipeline route

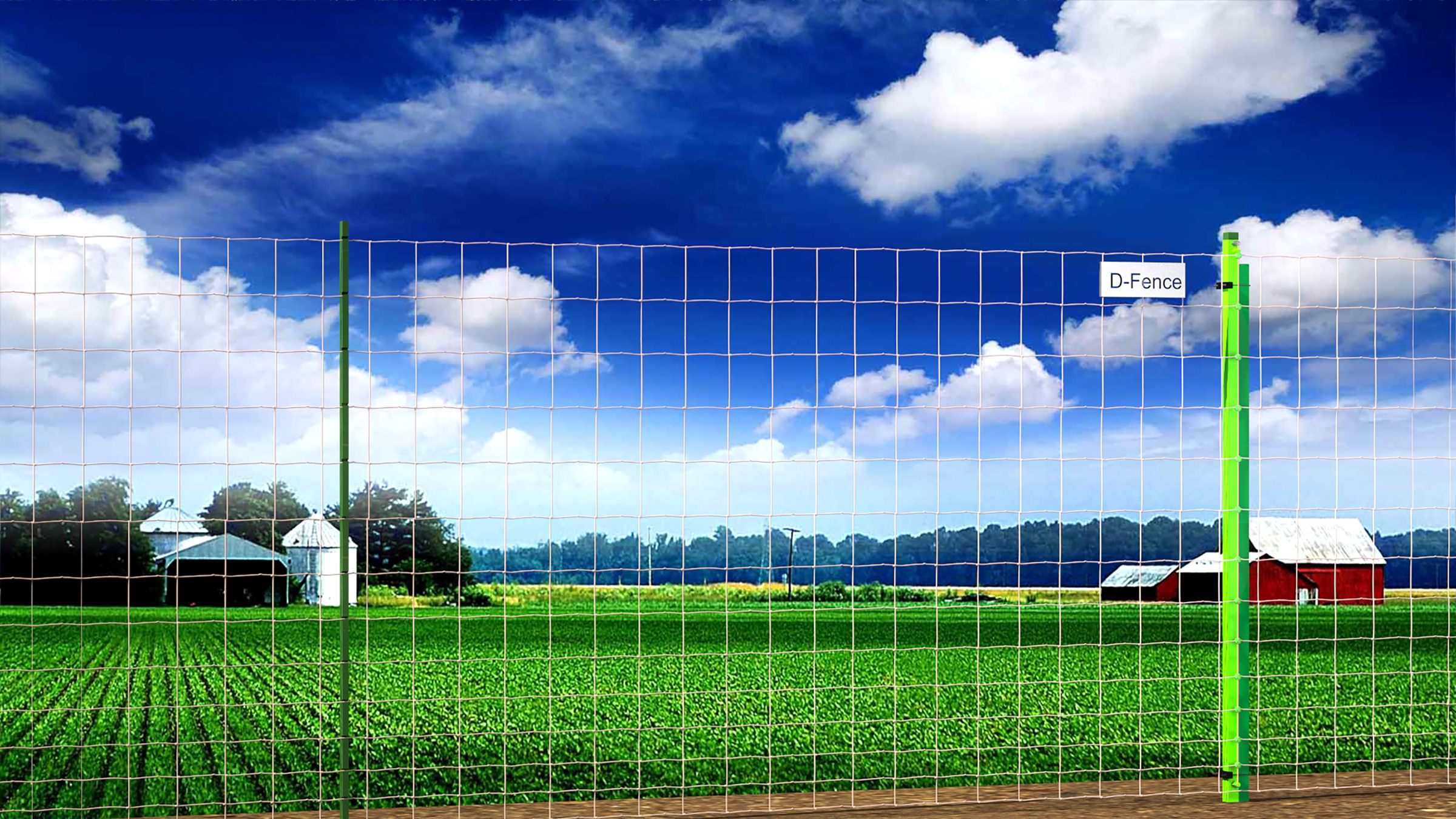

Render: field fence with a D-FENCE sensor post around green farmland with barns behind — **FIG. 08**Farm perimeter

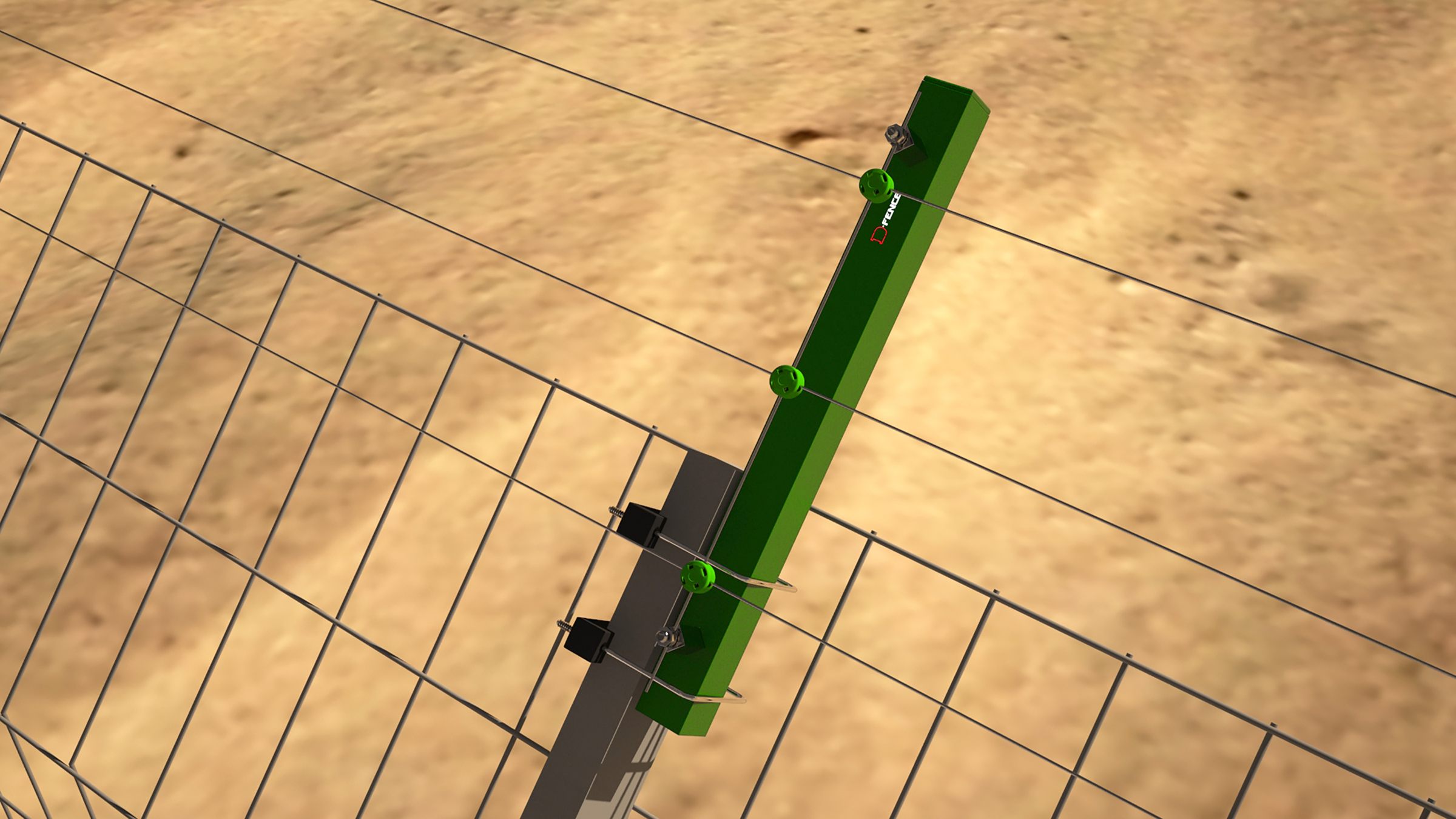

Render: close-up of a green D-FENCE sensor post holding the field-fence wires — **FIG. 09**Sensor post close-up

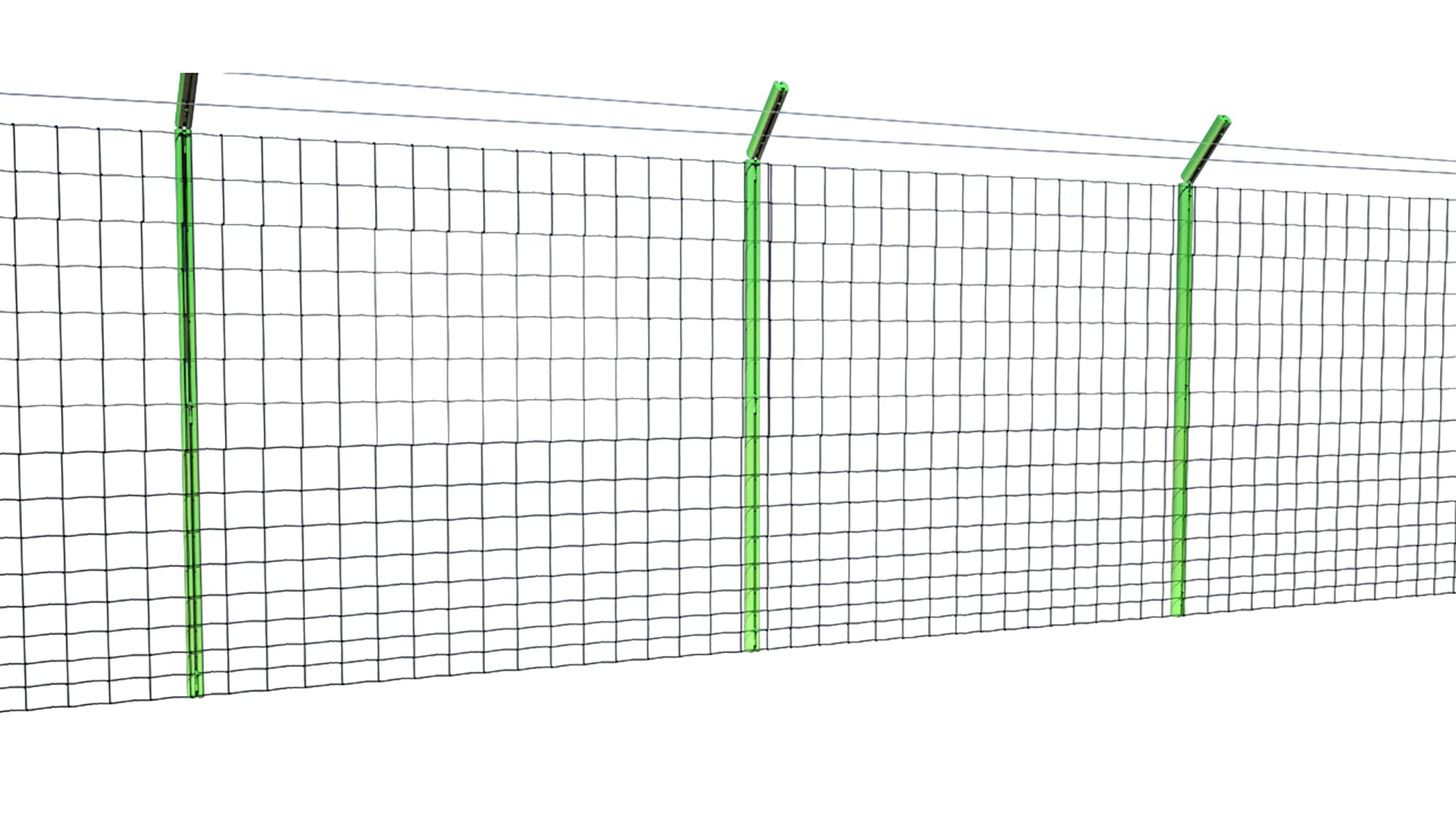

Render on white: field-fence mesh with three green D-FENCE sensor posts with angled tops — **FIG. 10**System view

Specifications & documents.

SpecificationsD-Field Fence

Fence length: Practical limitation only
Zone length: Up to 90 m
Fence height: To customer specification
Sensor unit: 250 × 55 × 25 mm, 200 g
Processing unit: Up to 24 sensors
Minimum trigger force: Typically 15 kg above the static load
Dry contact: N.O. & N.C.
Power: 48 VDC / 12 VDC
Communication: RS232 / RS485
Operating temperature: −25 °C to +72 °C (−13 °F to 162 °F)
Storage temperature: −55 °C to +80 °C (−67 °F to 176 °F)
Humidity: 95%
Corrosion: Anti-corrosion treatment to MIL T 152; all parts stainless steel
False alarm rate (catalogue): Less than 1 per km per 3 months (maximum)
Sensor MTBF: 4.7 × 10⁸ h
MTTR: 30 min
Warranty: 10 years on the sensors
Installation: Retrofit on existing fences or walls, or stand-alone
Patent: Patented (CN utility model, granted 2019)

Specification text, ready for your tender.

Copy it into your specification. It describes the system by what it must do, so any alternative has to meet every point.

D-Field FenceTender specification textDatasheet

General
The system shall be D-Field Fence by D-FENCE Electronic Fencing and Security Systems Ltd. (ISO 9001:2015 certified quality management), or an approved equivalent that meets every requirement in this section.
Function
Standard field fencing with D-FENCE sensor posts: fast to deploy along long open perimeters, as a retrofit or stand-alone.
The system shall provide
- Field-fence based: Uses standard, cost-effective field-type fencing.
- Any height: Installed at the height the site needs, without special skills or tools.
- Retrofit or stand-alone: Add it to an existing fence or wall, or build a new line where there is no fence.
- Green Security Revolution: No high voltage and no radiation: an electronic alternative to shock fences.
- Up to 24 sensors per unit: Zones of up to 90 m, with the location of the attempt.
- Open outputs: Dry contact N.O. & N.C. and RS232 / RS485.
Technical requirements
- Fence length: Practical limitation only
- Zone length: Up to 90 m
- Fence height: To customer specification
- Sensor unit: 250 × 55 × 25 mm, 200 g
- Processing unit: Up to 24 sensors
- Minimum trigger force: Typically 15 kg above the static load
- Dry contact: N.O. & N.C.
- Power: 48 VDC / 12 VDC
- Communication: RS232 / RS485
- Operating temperature: −25 °C to +72 °C (−13 °F to 162 °F)
- Storage temperature: −55 °C to +80 °C (−67 °F to 176 °F)
- Humidity: 95%
- Corrosion: Anti-corrosion treatment to MIL T 152; all parts stainless steel
- False alarm rate (catalogue): Less than 1 per km per 3 months (maximum)
- Sensor MTBF: 4.7 × 10⁸ h
- MTTR: 30 min
- Warranty: 10 years on the sensors
- Installation: Retrofit on existing fences or walls, or stand-alone
- Patent: Patented (CN utility model, granted 2019)
Detection sequence
1. Sensor posts in the line: D-FENCE sensor posts carry the field-fence wire at the height you need.
2. Force on the wire: A climb or a cut adds load; typically 15 kg above the static load triggers the alarm.
3. Processing unit: Up to 24 sensors per unit, in zones of up to 90 m.
4. Alarm out: Dry contact or RS232 / RS485 to your alarm system, cameras or D-Command Control.
Submittals
Before installation, the contractor shall submit the manufacturer's datasheet, the installation instructions and the zone layout for approval.

D-Field Fence | Tender specification text

1. General
The system shall be D-Field Fence by D-FENCE Electronic Fencing and Security Systems Ltd. (ISO 9001:2015 certified quality management), or an approved equivalent that meets every requirement in this section.

2. Function
Standard field fencing with D-FENCE sensor posts: fast to deploy along long open perimeters, as a retrofit or stand-alone.

3. The system shall provide
- Field-fence based: Uses standard, cost-effective field-type fencing.
- Any height: Installed at the height the site needs, without special skills or tools.
- Retrofit or stand-alone: Add it to an existing fence or wall, or build a new line where there is no fence.
- Green Security Revolution: No high voltage and no radiation: an electronic alternative to shock fences.
- Up to 24 sensors per unit: Zones of up to 90 m, with the location of the attempt.
- Open outputs: Dry contact N.O. & N.C. and RS232 / RS485.

4. Technical requirements
- Fence length: Practical limitation only
- Zone length: Up to 90 m
- Fence height: To customer specification
- Sensor unit: 250 × 55 × 25 mm, 200 g
- Processing unit: Up to 24 sensors
- Minimum trigger force: Typically 15 kg above the static load
- Dry contact: N.O. & N.C.
- Power: 48 VDC / 12 VDC
- Communication: RS232 / RS485
- Operating temperature: −25 °C to +72 °C (−13 °F to 162 °F)
- Storage temperature: −55 °C to +80 °C (−67 °F to 176 °F)
- Humidity: 95%
- Corrosion: Anti-corrosion treatment to MIL T 152; all parts stainless steel
- False alarm rate (catalogue): Less than 1 per km per 3 months (maximum)
- Sensor MTBF: 4.7 × 10⁸ h
- MTTR: 30 min
- Warranty: 10 years on the sensors
- Installation: Retrofit on existing fences or walls, or stand-alone
- Patent: Patented (CN utility model, granted 2019)

5. Detection sequence
5.1 Sensor posts in the line: D-FENCE sensor posts carry the field-fence wire at the height you need.
5.2 Force on the wire: A climb or a cut adds load; typically 15 kg above the static load triggers the alarm.
5.3 Processing unit: Up to 24 sensors per unit, in zones of up to 90 m.
5.4 Alarm out: Dry contact or RS232 / RS485 to your alarm system, cameras or D-Command Control.

6. Submittals
Before installation, the contractor shall submit the manufacturer's datasheet, the installation instructions and the zone layout for approval.
