Covers the blind spots
Brings a camera to ground a fixed camera cannot see.
The threat · Blind spots between patrol rounds?
D-DOG
A quadruped patrol robot that carries day-and-night cameras into ground-level blind spots and reports to your control room.
Patrols can't be everywhere, all night.
D-DOG is a quadruped patrol robot for sites where fixed cameras leave gaps and guards cannot be everywhere. It walks the ground that a fence line or a camera cannot see, carrying a camera payload for day and night.
Patrols day and night
Autonomous rounds with obstacle avoidance and quiet operation.
Part of the system
The ground layer of D-Fence SPECTRA, reporting to your control room.

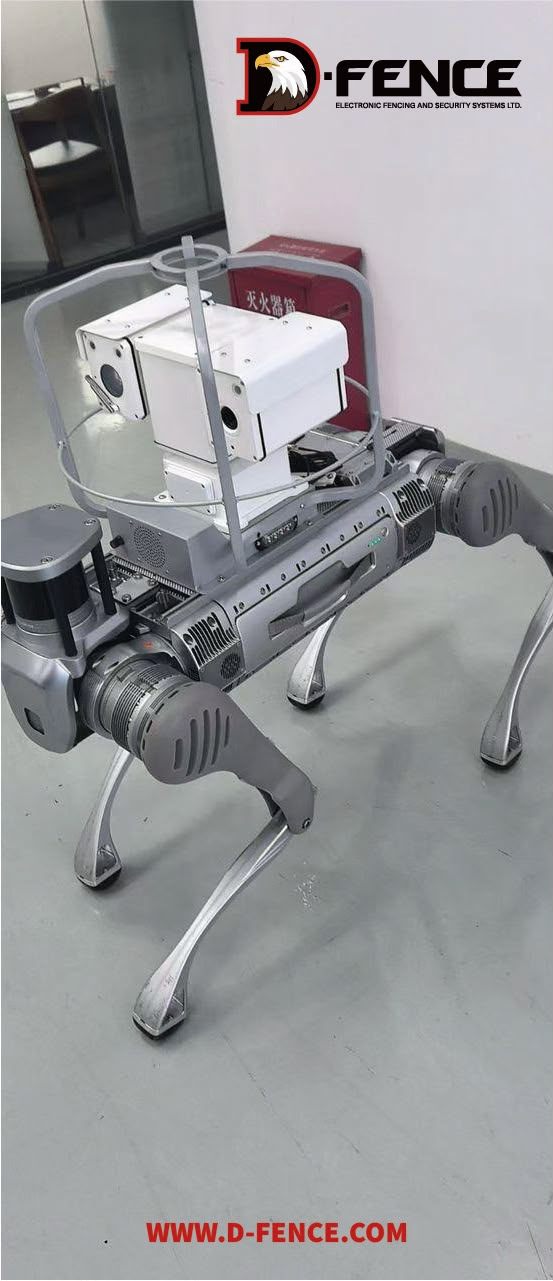

It navigates autonomously with SLAM and LiDAR, avoids obstacles, runs quietly and takes modular payloads, from a sensor and compute module to a bi-spectrum PTZ camera. It integrates with control systems and supports full remote control.
In D-Fence SPECTRA it is the ground layer, adding patrol and response next to the AI-EYE IN THE SKY trailer.
From the first touch to the right response.
Map
The robot maps the site with SLAM and LiDAR.
Patrol
It walks its round autonomously and avoids obstacles.
Observe
The camera payload streams video by day and by night.
Report
Operators watch the feed and take remote control when needed.
Seen in full.
Every image opens full size. Product sheets are shown whole, exactly as D-FENCE publishes them.
See it work.

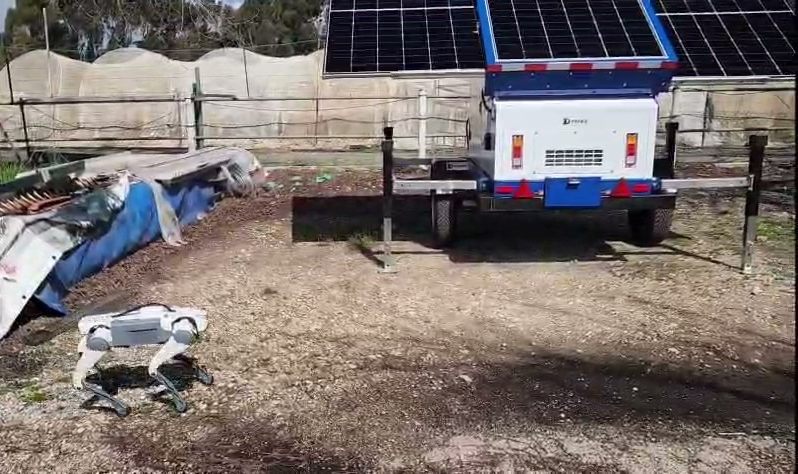

D-DOG patrols beside the solar trailer
Field test in a yard: the D-DOG robot walks, turns and checks the ground in front of a D-FENCE solar surveillance trailer.

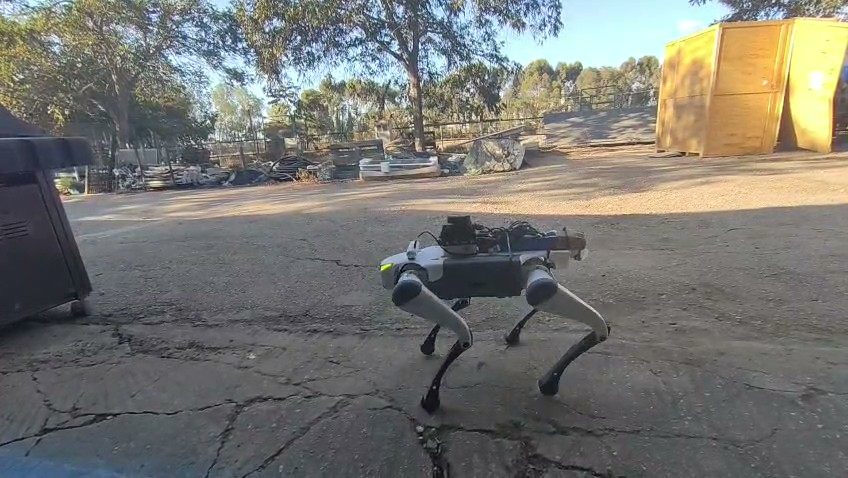

D-DOG field test with payload
D-DOG carries a compute and communication payload across a dusty yard and walks up to the camera.
D-DOG in defence configuration
The D-DOG platform with a weapon-mount payload. Defence configurations are for authorised defence forces only.
Specifications & documents.
SpecificationsD-DOG
- Platform
- Quadruped patrol robot
- Navigation
- Autonomous, SLAM + LiDAR, obstacle avoidance
- Operational range
- Up to 10 km
- Payload interface
- Up to 15 kg
- Payloads
- Modular: cameras (incl. bi-spectrum PTZ), sensors, antennas
- Awareness
- 360°, day & night; thermal cameras
- Control
- Full remote control; integration with control systems
Specification text, ready for your tender.
Copy it into your specification. It describes the system by what it must do, so any alternative has to meet every point.
General
The system shall be D-DOG by D-FENCE Electronic Fencing and Security Systems Ltd. (ISO 9001:2015 certified quality management), or an approved equivalent that meets every requirement in this section.
Function
A quadruped patrol robot that carries day-and-night cameras into ground-level blind spots and reports to your control room.
The system shall provide
- Autonomous navigation: SLAM + LiDAR.
- Obstacle avoidance: Advanced sensors detect obstacles and steer around them.
- 360° awareness: Day and night, with thermal camera payloads.
- Low noise: Quiet operation for discreet patrols.
- Modular payloads: Cameras, sensors and communication modules.
- All terrain: Rugged and built to endure.
- Remote control: Full remote control and integration with control systems.
Technical requirements
- Platform: Quadruped patrol robot
- Navigation: Autonomous, SLAM + LiDAR, obstacle avoidance
- Operational range: Up to 10 km
- Payload interface: Up to 15 kg
- Payloads: Modular: cameras (incl. bi-spectrum PTZ), sensors, antennas
- Awareness: 360°, day & night; thermal cameras
- Control: Full remote control; integration with control systems
Detection sequence
- Map: The robot maps the site with SLAM and LiDAR.
- Patrol: It walks its round autonomously and avoids obstacles.
- Observe: The camera payload streams video by day and by night.
- Report: Operators watch the feed and take remote control when needed.
Submittals
Before installation, the contractor shall submit the manufacturer's datasheet, the installation instructions and the zone layout for approval.
Discuss your project.
Tell us the site, the threat and the line. D-FENCE engineers will propose the right barrier, sensor and platform, ready for your integrator.
Build the full line.
Counter-drone & roboticsMobile multi-layer platform
A remote site with no power, and drones overhead?
D-Fence SPECTRA
Thermal and PTZ cameras, RF detection with anti-drone capability and a patrol robot on one solar trailer, operational in under 10 minutes.
< 10 min to full operationSolar-poweredThermal + PTZ + RF
View product
Mobileautonomous solar trailerSolar-powered
A site with no power, no network and no eyes on it?

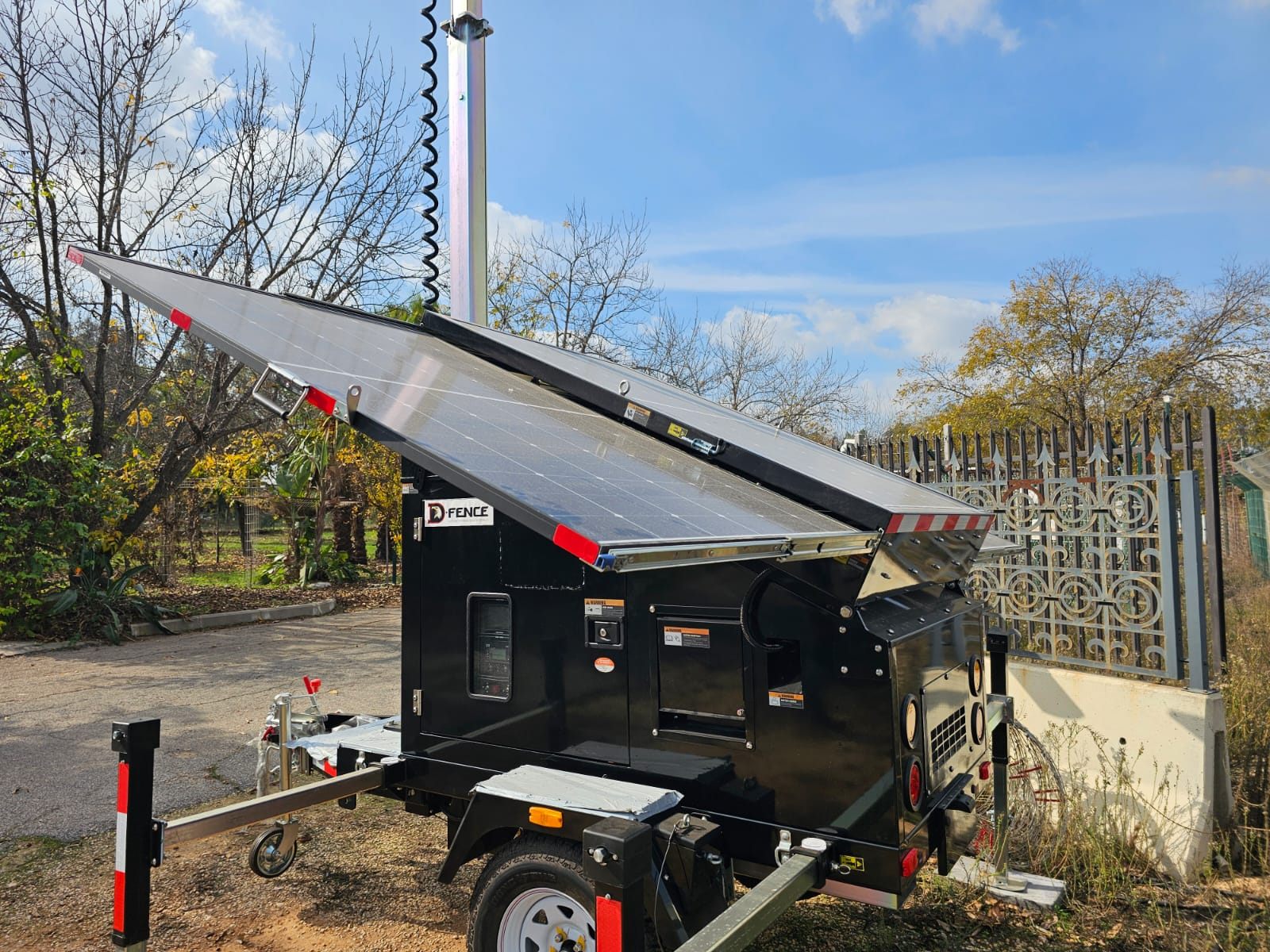

AI-EYE IN THE SKY
