Early warning before the fence
Detects footsteps and digging as soon as someone enters the protected route.
The threat · Intruders approaching on foot, unseen?
D-Ground

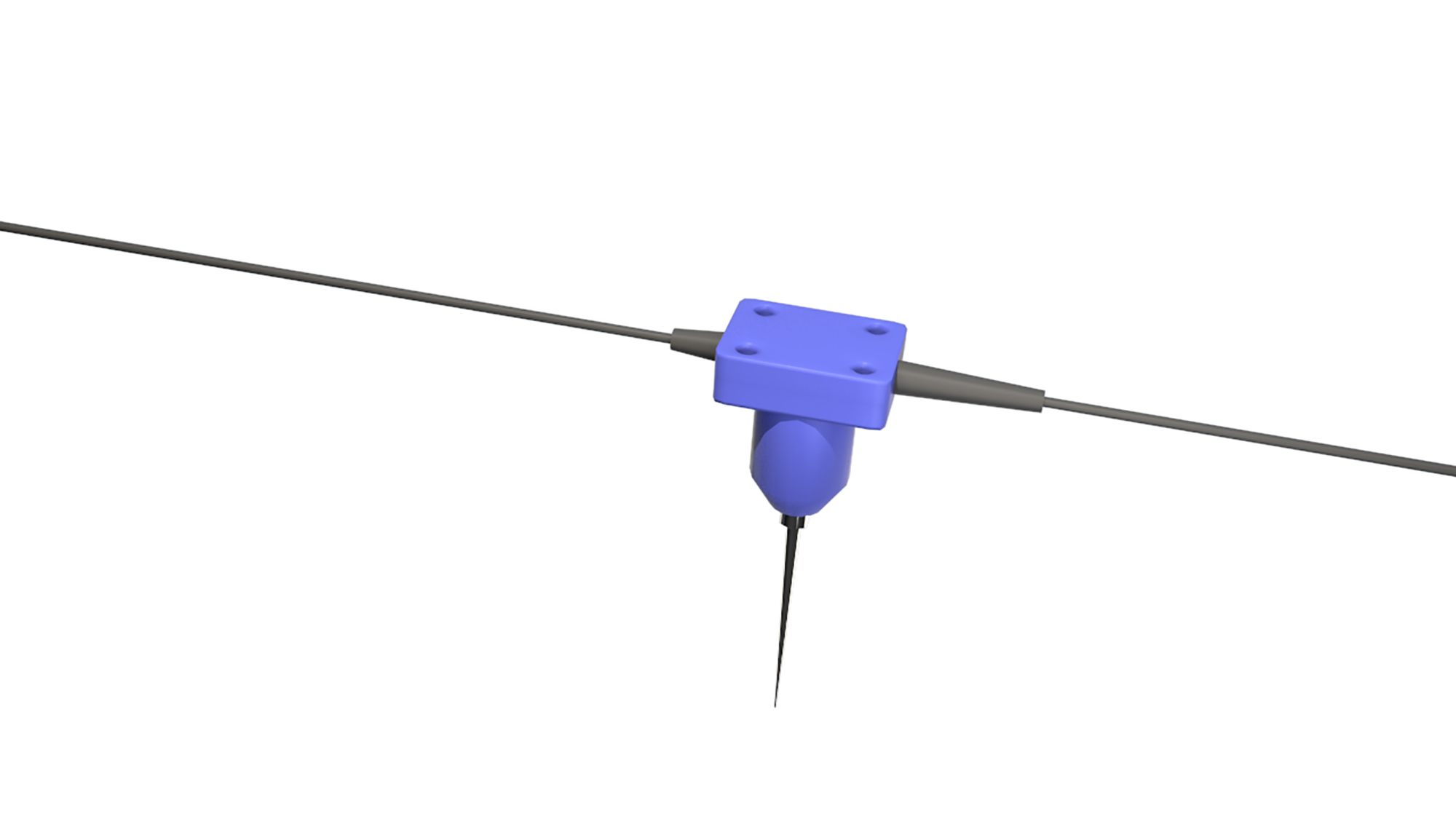

Buried seismic sensors detect footsteps and digging on access routes and perimeters, with early warning before an intruder reaches the fence.
Hear the footsteps before the fence.
Long access routes, pipeline strips and open borders cannot be fenced everywhere, and a visible sensor is one an intruder can avoid or sabotage.
Invisible, hard to defeat
Installed below ground: cannot be seen, sabotaged or bypassed.
Years without maintenance
Stand-alone on one battery for years, with automatic self-test.
D-Ground uses seismic sensors installed below ground. They recognize the fluctuations of an intruder's movement as soon as he enters the protected route, road or path, and warn before the intrusion actually happens. A self-learning algorithm recognizes diverse threats, from footsteps to digging, above and below ground, with minimized false alarms.
Buried and invisible, the system cannot be detected or bypassed and leaves the area's appearance unchanged. It runs stand-alone on the same battery for years, or integrates with video systems, alarm systems and smartphones.
From the first touch to the right response.

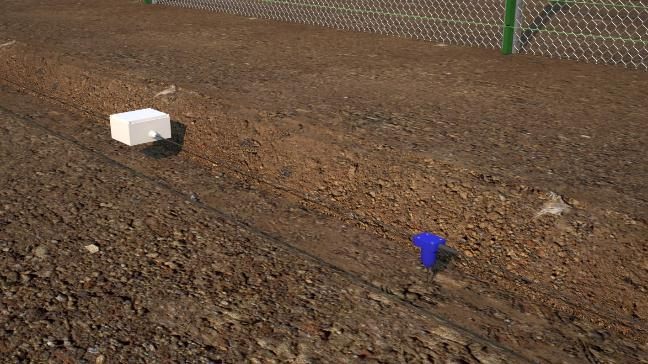

Buried sensor line

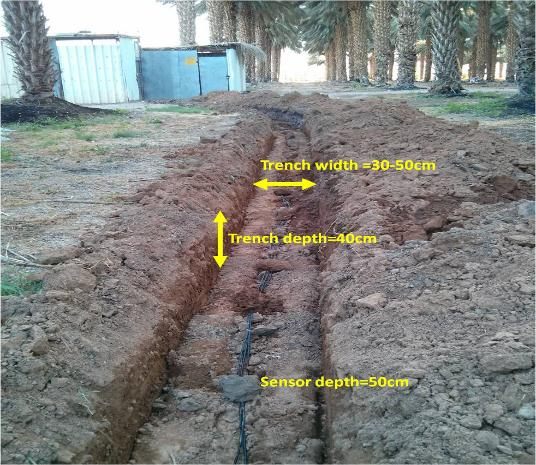

Seismic sensors are laid in a trench along the route or perimeter.
Ground fluctuations
Footsteps, digging and other activity create fluctuations near the sensors.
Self-learning analysis
The algorithm classifies the threat and calibrates itself to environmental noise.
Alarm
Thresholds per threat and time of day; alerts go to video systems, alarm systems or smartphones.
Seen in full.
Every image opens full size. Product sheets are shown whole, exactly as D-FENCE publishes them.
Specifications & documents.
SpecificationsD-Ground
- Technology
- Seismic sensors, installed below ground
- Detects
- Footsteps, digging and other intrusions above and below ground
- Coverage area
- 120 m²
- Operating voltage
- 5 V
- Power
- Stand-alone; the same battery for years
- Operating temperature
- −40 °C to +70 °C
- Relative humidity
- 95%
- Protection
- IP67, UV protected
- Self-test
- Automatic built-in test (BIT)
- Sensitivity
- Adjustable per threat and per time of day
- Integration
- Stand-alone or with video systems, alarm systems and smartphones
Specification text, ready for your tender.
Copy it into your specification. It describes the system by what it must do, so any alternative has to meet every point.
General
The system shall be D-Ground by D-FENCE Electronic Fencing and Security Systems Ltd. (ISO 9001:2015 certified quality management), or an approved equivalent that meets every requirement in this section.
Function
Buried seismic sensors detect footsteps and digging on access routes and perimeters, with early warning before an intruder reaches the fence.
The system shall provide
- Seismic sensing: Sensitive seismic technology picks up ground fluctuations near the sensor line.
- Above and below ground: Recognizes footsteps, digging and other intrusion attempts.
- Self-learning algorithm: High recognition of diverse threats, calibrated automatically to environmental noise.
- Invisible: Installed below ground: cannot be seen, sabotaged or bypassed, and the area looks unchanged.
- Adjustable thresholds: A different sensitivity for each threat and for each time of day.
- Stand-alone or integrated: Years on one battery, or connected to video, alarm systems and smartphones.
Technical requirements
- Technology: Seismic sensors, installed below ground
- Detects: Footsteps, digging and other intrusions above and below ground
- Coverage area: 120 m²
- Operating voltage: 5 V
- Power: Stand-alone; the same battery for years
- Operating temperature: −40 °C to +70 °C
- Relative humidity: 95%
- Protection: IP67, UV protected
- Self-test: Automatic built-in test (BIT)
- Sensitivity: Adjustable per threat and per time of day
- Integration: Stand-alone or with video systems, alarm systems and smartphones
Detection sequence
- Buried sensor line: Seismic sensors are laid in a trench along the route or perimeter.
- Ground fluctuations: Footsteps, digging and other activity create fluctuations near the sensors.
- Self-learning analysis: The algorithm classifies the threat and calibrates itself to environmental noise.
- Alarm: Thresholds per threat and time of day; alerts go to video systems, alarm systems or smartphones.
Submittals
Before installation, the contractor shall submit the manufacturer's datasheet, the installation instructions and the zone layout for approval.
