Height where there is none
Six sections lift cameras from 2.174 m to 8.4 m with an electric motor.
The threat · Need a camera up high where there is no pole?
D-Tower

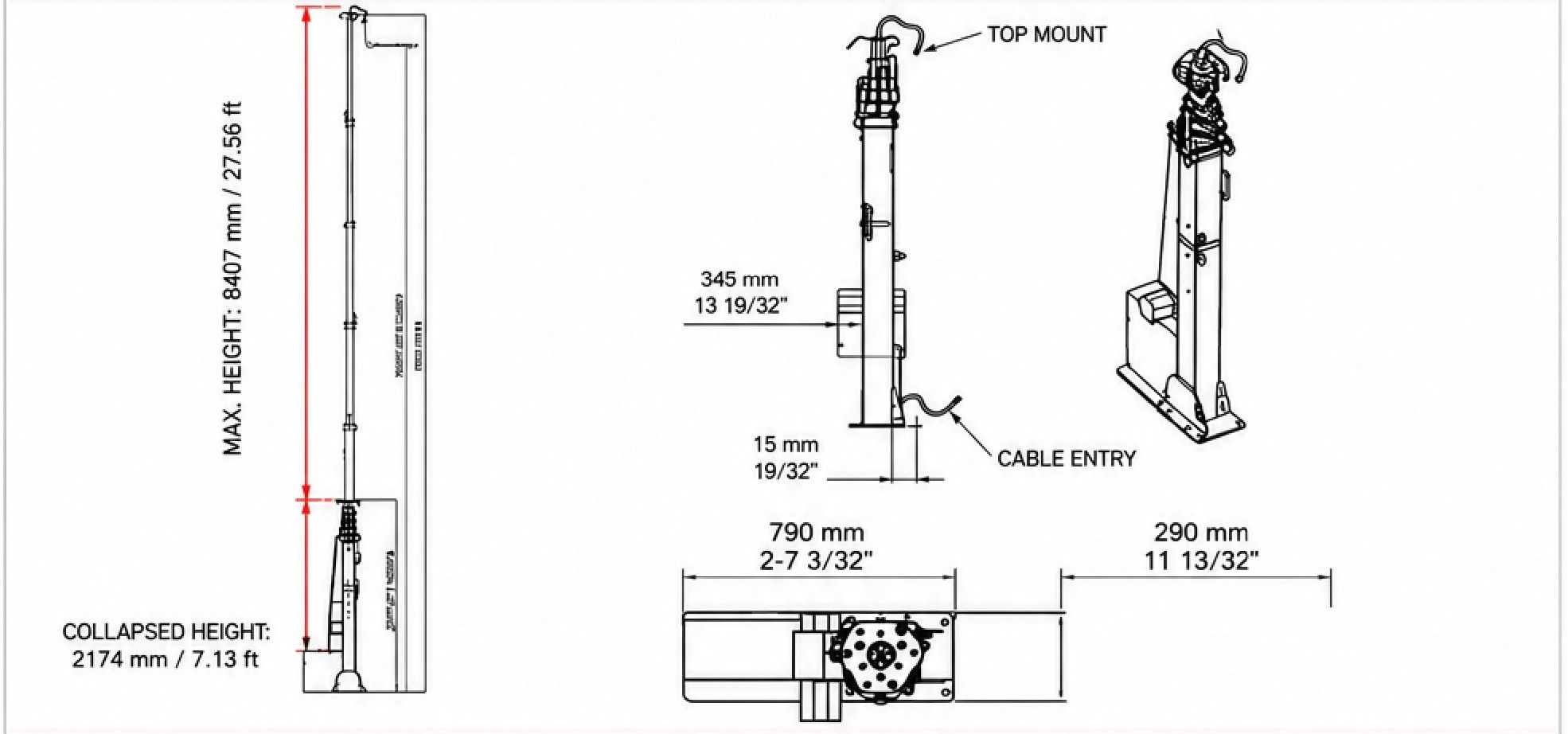

An electric six-section telescopic mast that lifts a 50 kg camera payload to 8.4 m and folds down to 2.174 m.
No pole on site? Raise one to 8.4 m.
D-Tower is a rapid-deployment observation mast. An electric motor and gearbox extend six telescopic sections from 2.174 m to 8.4 m, lifting up to 50 kg of cameras or sensors on a standard top mount.
Carries a real payload
50 kg rated load on a standard camera top mount.
Made for outdoor duty
IP66, powder-coated aluminium and steel, −40 °C to +60 °C.
The mast weighs 74 kg, runs on 24 V DC and bolts down through a 790 × 290 mm base plate. Built from aluminium alloy and steel with a powder-coated finish, it is rated IP66 and operates from −40 °C to +60 °C.
From the first touch to the right response.
Mount
Bolt the 790 × 290 mm base plate in place.
Equip
Fit up to 50 kg of cameras on the standard top mount.
Raise
The 24 V DC motor extends six sections to 8.4 m.
Connect
Route power and video through the base cable entry to your recorder, VMS or D-Command Control.
Seen in full.

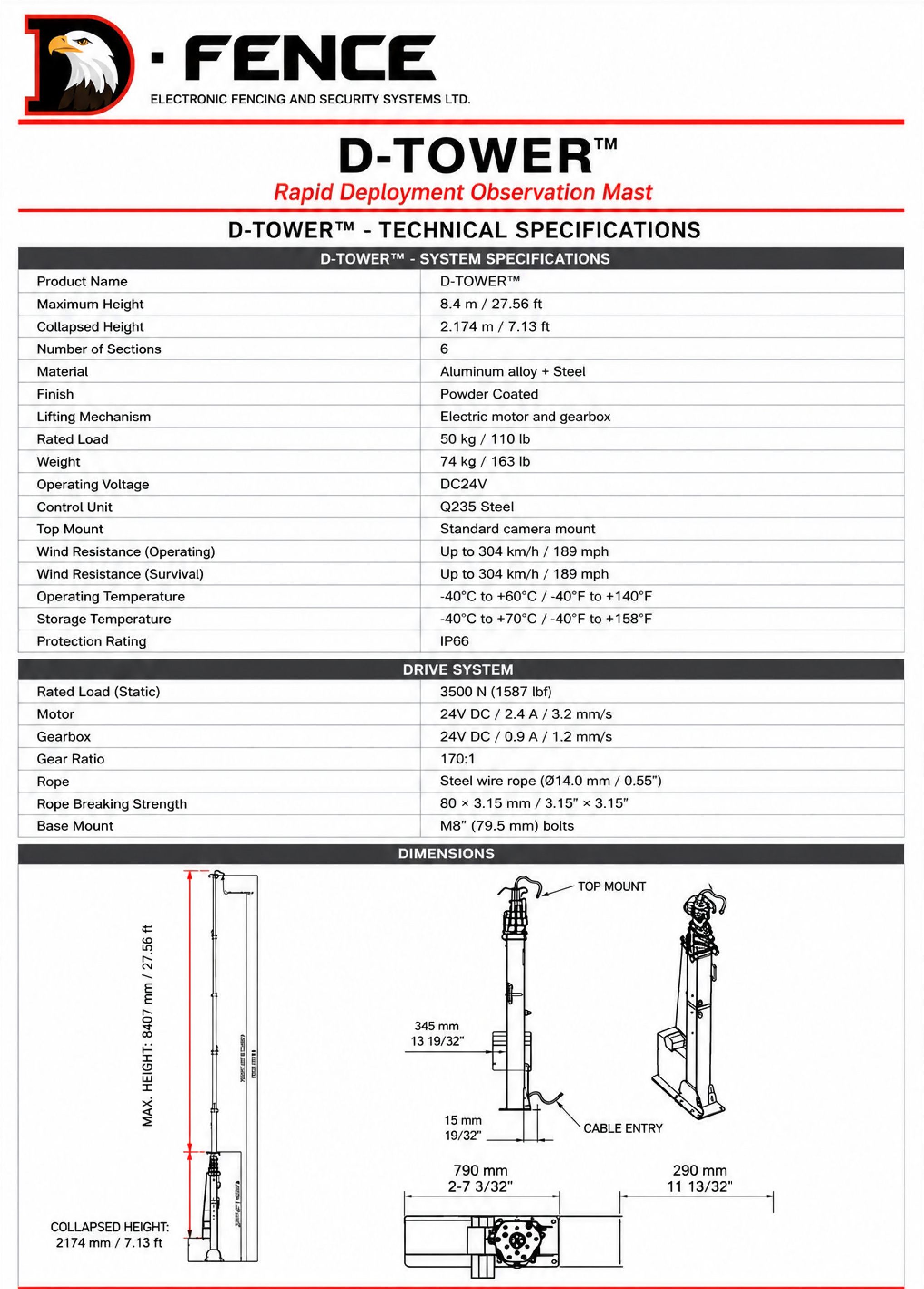

Every image opens full size. Product sheets are shown whole, exactly as D-FENCE publishes them.
Specifications & documents.
SpecificationsD-Tower
- Maximum height
- 8.4 m / 27.56 ft (8,407 mm)
- Collapsed height
- 2.174 m / 7.13 ft (2,174 mm)
- Sections
- 6
- Lifting mechanism
- Electric motor and gearbox, gear ratio 170:1
- Rated load
- 50 kg / 110 lb
- Weight
- 74 kg / 163 lb
- Operating voltage
- 24 V DC
- Material & finish
- Aluminium alloy + steel, powder coated
- Top mount
- Standard camera mount
- Base plate
- 790 mm × 290 mm
- Operating temperature
- −40 °C to +60 °C / −40 °F to +140 °F
- Storage temperature
- −40 °C to +70 °C / −40 °F to +158 °F
- Protection rating
- IP66
Specification text, ready for your tender.
Copy it into your specification. It describes the system by what it must do, so any alternative has to meet every point.
General
The system shall be D-Tower by D-FENCE Electronic Fencing and Security Systems Ltd. (ISO 9001:2015 certified quality management), or an approved equivalent that meets every requirement in this section.
Function
An electric six-section telescopic mast that lifts a 50 kg camera payload to 8.4 m and folds down to 2.174 m.
The system shall provide
- Electric lift: Electric motor and a 170:1 gearbox raise and lower the six sections.
- Camera-ready top: Standard camera top mount with a 50 kg rated load.
- Compact when stowed: Collapses to 2.174 m for transport and storage.
- Outdoor rated: IP66, powder-coated aluminium alloy and steel, −40 °C to +60 °C.
- Tidy cabling: Cable entry at the base of the mast.
Technical requirements
- Maximum height: 8.4 m / 27.56 ft (8,407 mm)
- Collapsed height: 2.174 m / 7.13 ft (2,174 mm)
- Sections: 6
- Lifting mechanism: Electric motor and gearbox, gear ratio 170:1
- Rated load: 50 kg / 110 lb
- Weight: 74 kg / 163 lb
- Operating voltage: 24 V DC
- Material & finish: Aluminium alloy + steel, powder coated
- Top mount: Standard camera mount
- Base plate: 790 mm × 290 mm
- Operating temperature: −40 °C to +60 °C / −40 °F to +140 °F
- Storage temperature: −40 °C to +70 °C / −40 °F to +158 °F
- Protection rating: IP66
Detection sequence
- Mount: Bolt the 790 × 290 mm base plate in place.
- Equip: Fit up to 50 kg of cameras on the standard top mount.
- Raise: The 24 V DC motor extends six sections to 8.4 m.
- Connect: Route power and video through the base cable entry to your recorder, VMS or D-Command Control.
Submittals
Before installation, the contractor shall submit the manufacturer's datasheet, the installation instructions and the zone layout for approval.
