See without light
A 640×512 thermal core detects people and vehicles by their heat, day or night.
The threat · Intruders hiding in darkness, haze or out at sea?
Thermal Cameras
Day and thermal sensors in one pan/tilt head, for patrol vehicles, masts and vessels.
Can't see them at night? Thermal can.
D-FENCE supplies two dual-sensor camera heads that pair a day zoom camera with a thermal core, so operators detect by heat and verify by image on one screen.
Verify before you act
The day zoom camera on the same head confirms what the thermal channel found.
Mount it where you need it
On a patrol vehicle, an AI-EYE mast, a D-DOG robot or a vessel's deck.

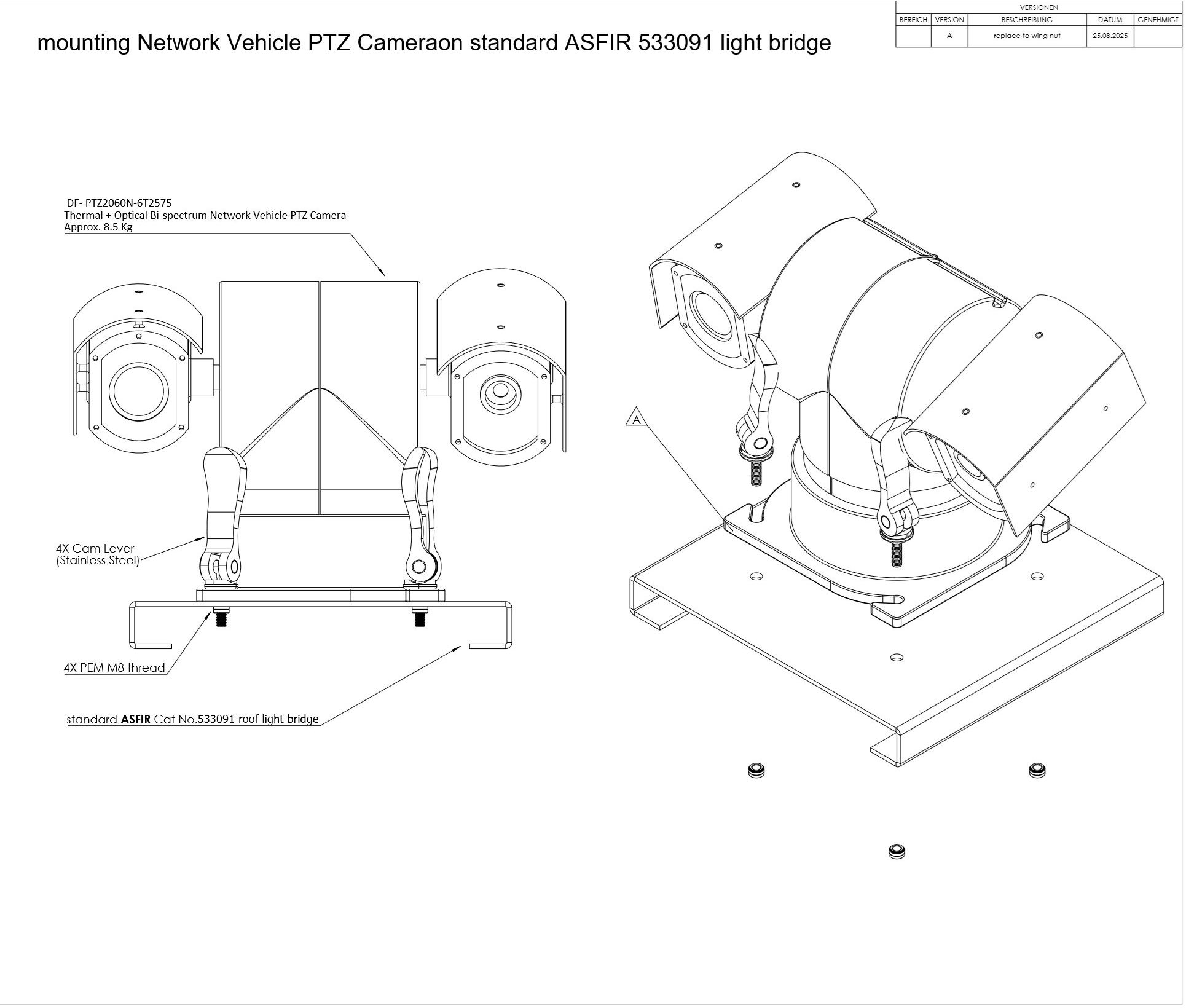

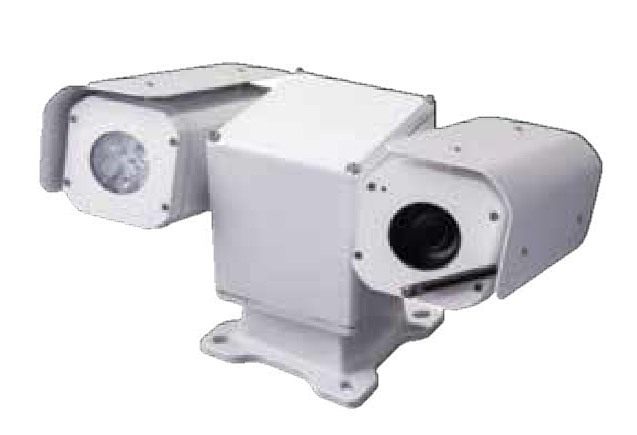

The DF-PTZ2060N-6T2575 bi-spectrum PTZ is the vehicle-rated head behind NOA, the thermal option on AI-EYE IN THE SKY and the camera payload of D-DOG: a 2560×1440 day camera with ×30 zoom and an uncooled 640×512 thermal camera with NETD ≤ 45 mK, at about 8.5 kg.

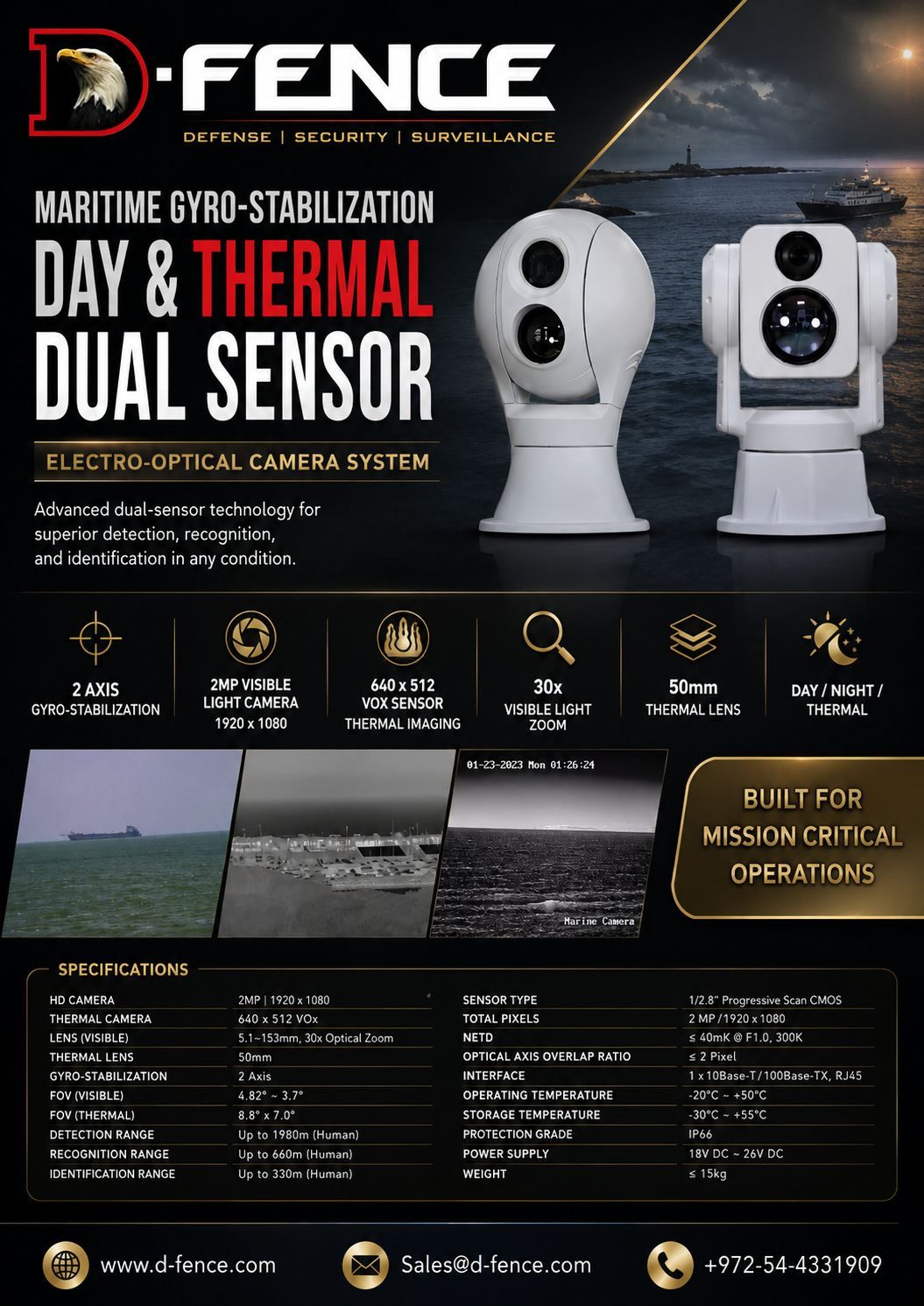

The maritime gyro-stabilised dual sensor holds its aim on a moving deck: 2-axis stabilisation, a 2 MP day camera with 30× zoom, a 640×512 VOx thermal core with a 50 mm lens, and human detection up to 1,980 m, recognition up to 660 m and identification up to 330 m.
From the first touch to the right response.
Detect
The thermal channel picks up a heat signature, day or night.
Verify
Slew and zoom the day camera onto the same target.
Stream
IP video (H.264) over RJ45 to the recorder, VMS or D-Command Control.
Respond
Operators track the target and dispatch a patrol.
Seen in full.
Every image opens full size. Product sheets are shown whole, exactly as D-FENCE publishes them.
Specifications & documents.
SpecificationsThermal Cameras
- Bi-spectrum PTZ · model
- DF-PTZ2060N-6T2575, approx. 8.5 kg
- Bi-spectrum PTZ · day camera
- 2560×1440, ×30 optical zoom, 0.001 lux, WDR ≥ 120 dB, IP67, IK10
- Bi-spectrum PTZ · thermal camera
- Uncooled 640×512, NETD ≤ 45 mK, 7.5–14 µm, ≥ 25 FPS, H.264 output
- Bi-spectrum PTZ · pan / tilt
- 360° continuous, pan up to 100°/s, tilt up to 40°/s
- Maritime · day camera
- 2 MP 1920×1080, 1/2.8" progressive-scan CMOS, lens 5.1–153 mm (30× optical zoom)
- Maritime · thermal camera
- 640×512 VOx, 50 mm lens, NETD ≤ 40 mK @ F1.0, 300 K
- Maritime · field of view
- Visible 4.82°–3.7° · thermal 8.8° × 7.0°
- Maritime · range (human)
- Detection up to 1,980 m · recognition up to 660 m · identification up to 330 m
- Maritime · stabilisation
- 2-axis gyro; optical-axis overlap ≤ 2 pixels
- Maritime · interface & power
- 1 × 10Base-T/100Base-TX, RJ45 · 18–26 V DC
- Maritime · environment
- Operating −20 °C to +50 °C · storage −30 °C to +55 °C · IP66 · ≤ 15 kg
Specification text, ready for your tender.
Copy it into your specification. It describes the system by what it must do, so any alternative has to meet every point.
General
The system shall be Thermal Cameras by D-FENCE Electronic Fencing and Security Systems Ltd. (ISO 9001:2015 certified quality management), or an approved equivalent that meets every requirement in this section.
Function
Day and thermal sensors in one pan/tilt head, for patrol vehicles, masts and vessels.
The system shall provide
- Two sensors, one aim: Day zoom and thermal channels share one pan/tilt head and one line of sight.
- Vehicle-rated PTZ: The bi-spectrum head is built for roof mounting on patrol vehicles, with continuous 360° pan.
- Gyro-stabilised: 2-axis stabilisation keeps the maritime head on target from a moving vessel.
- Long range: Maritime model: detection up to 1,980 m, recognition 660 m, identification 330 m (human).
- Network video: IP video (H.264) over RJ45 into your recorder, VMS or D-Command Control.
- Outdoor rated: IP66 maritime head; IP67 day module on the vehicle head.
Technical requirements
- Bi-spectrum PTZ · model: DF-PTZ2060N-6T2575, approx. 8.5 kg
- Bi-spectrum PTZ · day camera: 2560×1440, ×30 optical zoom, 0.001 lux, WDR ≥ 120 dB, IP67, IK10
- Bi-spectrum PTZ · thermal camera: Uncooled 640×512, NETD ≤ 45 mK, 7.5–14 µm, ≥ 25 FPS, H.264 output
- Bi-spectrum PTZ · pan / tilt: 360° continuous, pan up to 100°/s, tilt up to 40°/s
- Maritime · day camera: 2 MP 1920×1080, 1/2.8" progressive-scan CMOS, lens 5.1–153 mm (30× optical zoom)
- Maritime · thermal camera: 640×512 VOx, 50 mm lens, NETD ≤ 40 mK @ F1.0, 300 K
- Maritime · field of view: Visible 4.82°–3.7° · thermal 8.8° × 7.0°
- Maritime · range (human): Detection up to 1,980 m · recognition up to 660 m · identification up to 330 m
- Maritime · stabilisation: 2-axis gyro; optical-axis overlap ≤ 2 pixels
- Maritime · interface & power: 1 × 10Base-T/100Base-TX, RJ45 · 18–26 V DC
- Maritime · environment: Operating −20 °C to +50 °C · storage −30 °C to +55 °C · IP66 · ≤ 15 kg
Detection sequence
- Detect: The thermal channel picks up a heat signature, day or night.
- Verify: Slew and zoom the day camera onto the same target.
- Stream: IP video (H.264) over RJ45 to the recorder, VMS or D-Command Control.
- Respond: Operators track the target and dispatch a patrol.
Submittals
Before installation, the contractor shall submit the manufacturer's datasheet, the installation instructions and the zone layout for approval.
