The threat · Patrols driving blind after dark?

NOA

A day and thermal observation kit that clamps onto a patrol vehicle roof or tripod in ≤ 10 min, with no drilling.

Plug & Play
≤ 10 min installDay + thermal≥ 5 h on battery
Discuss your project Catalog

For integrators & consultants

L2LayerObservation & patrol
DatasheetPDF · 312 KBTender specification textCopy text
NOA dual-sensor head, a day zoom camera and a thermal camera with the D-FENCE logo, clamped to a black light bridge on a vehicle roof

Patrolling in the dark? See 360° from the vehicle.

NOA turns any patrol vehicle into a mobile observation post. A day/night PTZ camera with ×30 optical zoom and an uncooled 640×512 thermal camera sit on a remote-controlled pan/tilt head with continuous 360° rotation, which clamps onto the vehicle's roof light bar or a reinforced tripod.

01

Installs in minutes

One operator clamps it to the roof light bar or a tripod in ≤ 10 min, with no drilling.

02

Sees day and night

×30 day zoom and a 640×512 thermal camera on a 360° pan/tilt head.

03

Works on the move

Control, view and record from the cab while driving or parked, ≥ 24 h on both channels.

One operator installs or removes it in 10 minutes or less, with no drilling and no permanent change to the vehicle. A single cable runs to the cabin, where a 10.1" sunlight-readable touchscreen, a joystick and an NVR give the crew full control and at least 24 h of recording, while driving or parked.

The whole kit travels in one rugged case, runs at least 5 h on its battery or from the vehicle's 12 V socket, and works from −40 °C to +70 °C. Dozens of NOA systems equip the security fleet of the Eshkol Regional Council in Israel.

From the first touch to the right response.

  1. Mount

    Clamp the head to the roof light bar or tripod; one cable runs to the cabin.

  2. Observe

    Scan 360° on the day and thermal channels with the joystick.

  3. Record

    The NVR keeps ≥ 24 h of both channels at full resolution.

  4. Share

    Live feed and GPS position go to D-Command Control over 4G/5G.

Seen in full.

Every image opens full size. Product sheets are shown whole, exactly as D-FENCE publishes them.

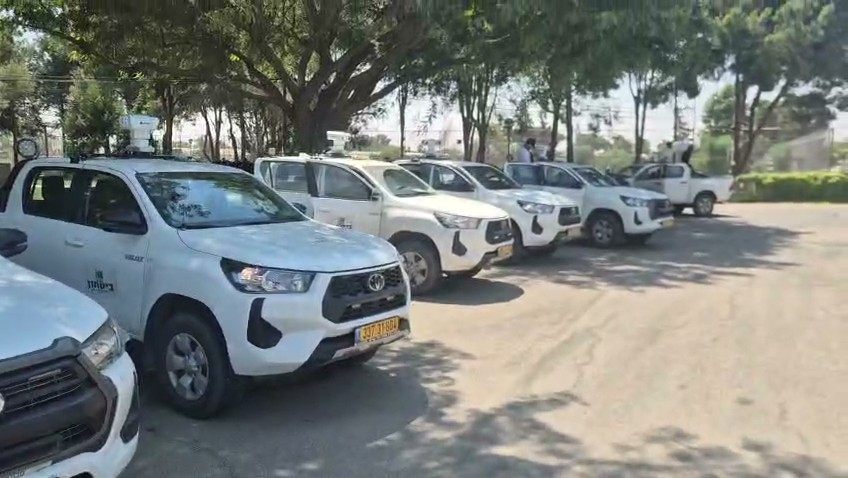

FIG. 01A regional-council security fleet, equipped with NOA.

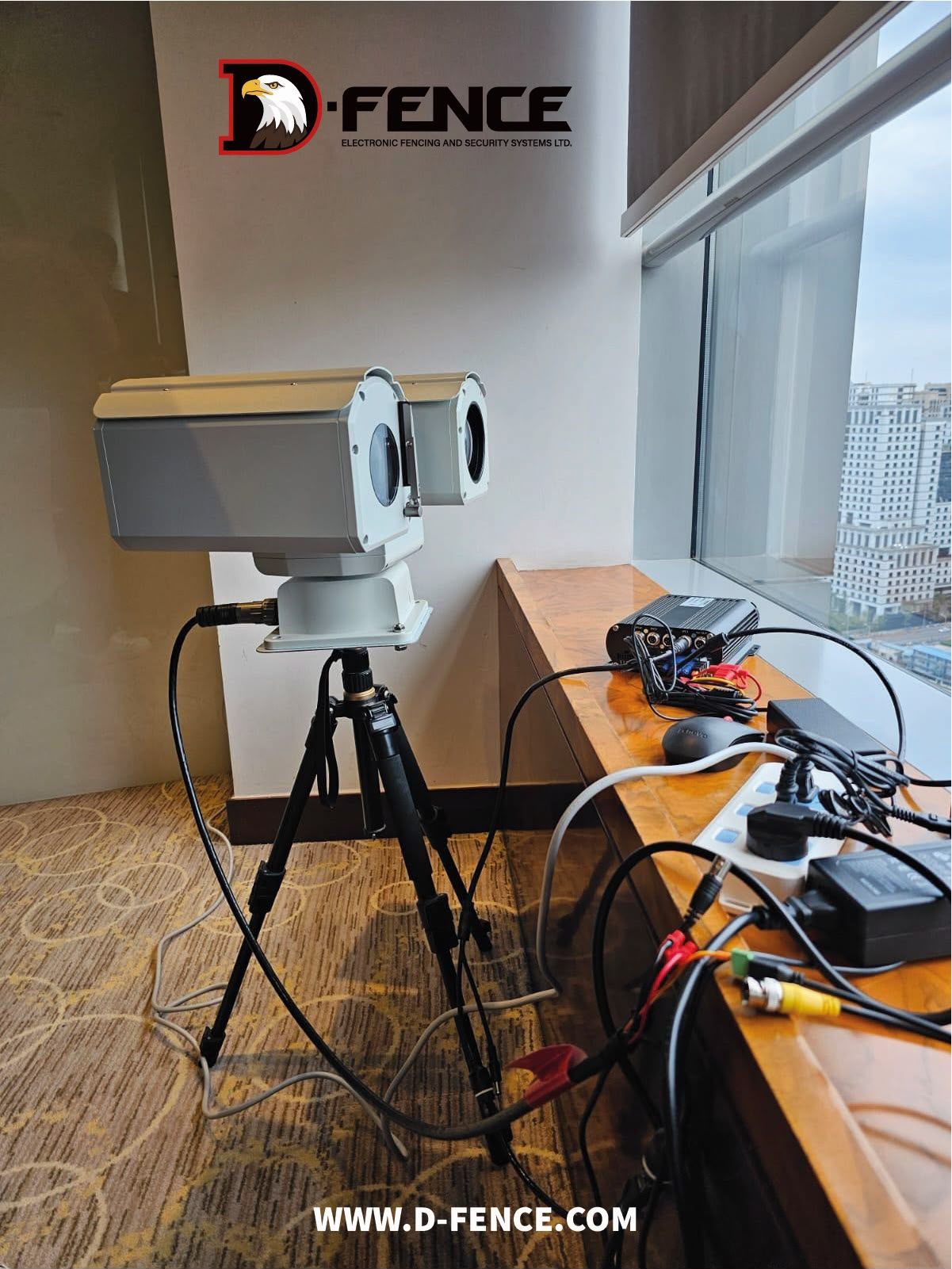

FIG. 02Tripod mode: the same observation head, off the vehicle.

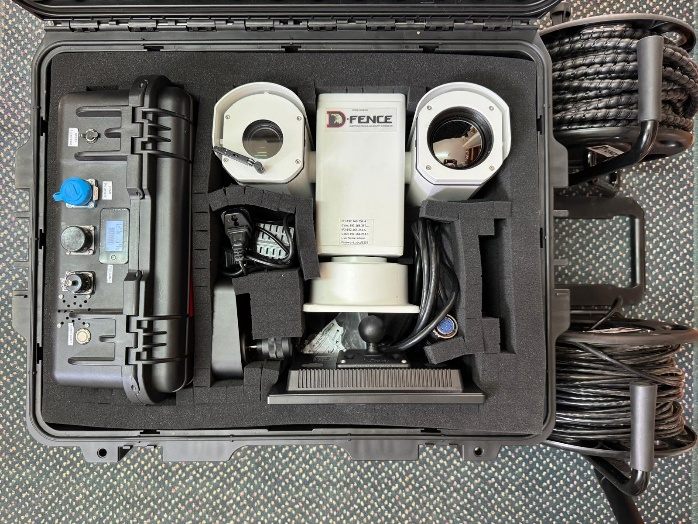

FIG. 03Everything in one case, for one operator.

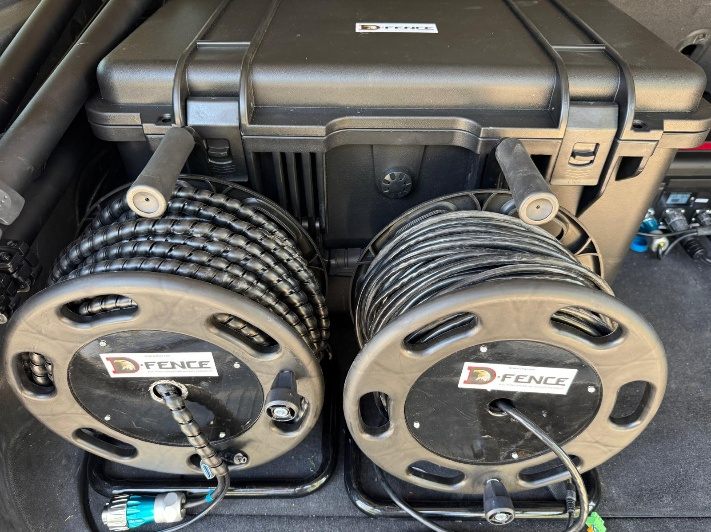

FIG. 04Reels and harness ride in the trunk.

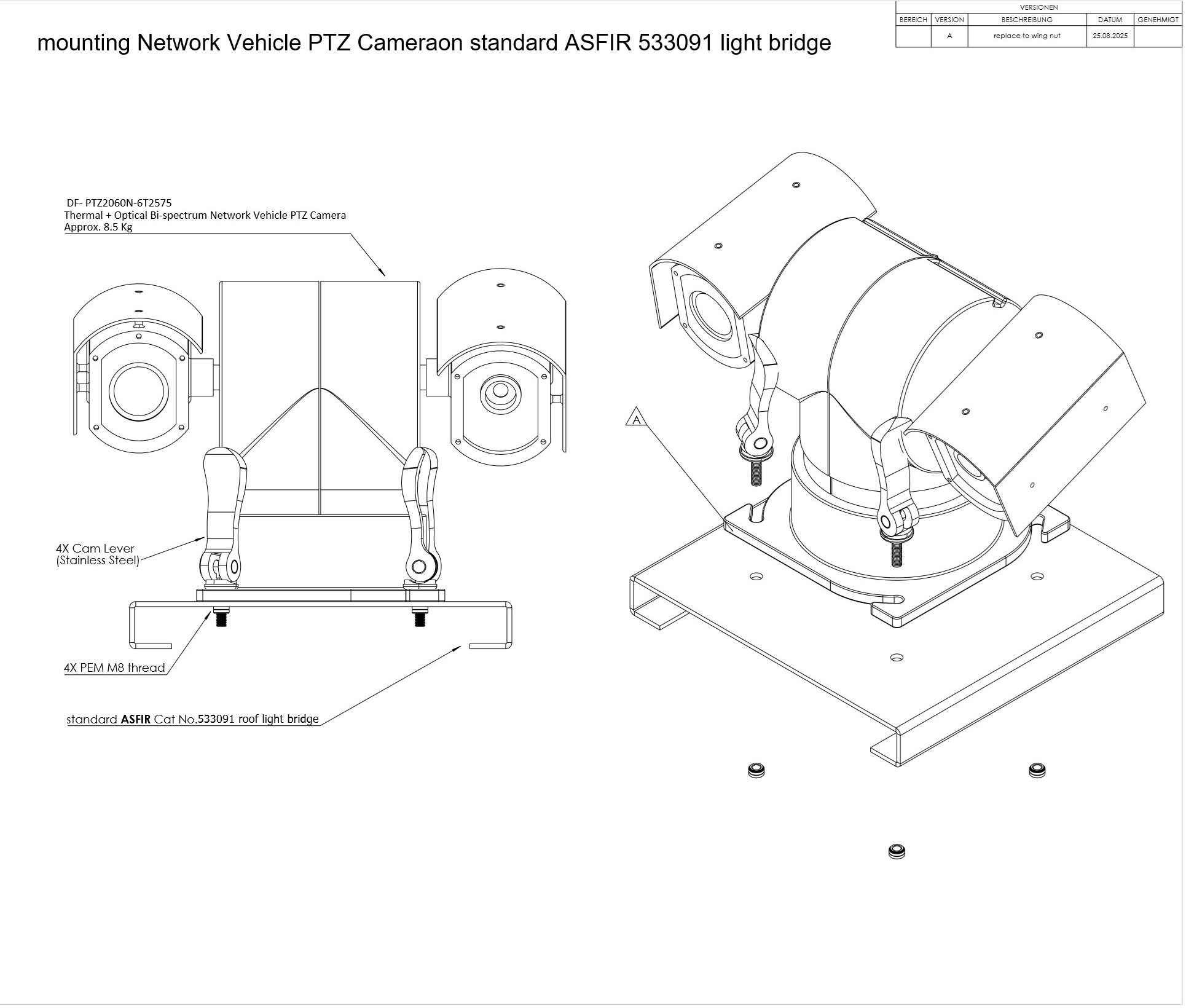

FIG. 05Roof-bridge mount: four cam levers, M8 threads, no drilling.

See it work.

NOA · 0:35

NOA on a security fleet

Pickups of the Eshkol Regional Council security unit, each with a NOA day/thermal head on the roof.

Specifications & documents.

SpecificationsNOA
Camera head
DF-PTZ2060N-6T2575 thermal + optical bi-spectrum PTZ, approx. 8.5 kg
Day camera
1/2.8" sensor, 2560×1440, ×30 optical zoom, WDR ≥ 120 dB, 0.001 lux, autofocus
Thermal camera
Uncooled 640×512, NETD ≤ 45 mK, 7.5–14 µm, ≥ 25 FPS, continuous zoom ~25–75 mm
Pan / tilt
360° continuous pan up to 100°/s · tilt up to 40°/s · elevation/depression ≥ 85–90°
Mounting
Roof light bar / bridge, or tripod (working height ~1.5 m, folded ≤ 80 cm)
Installation
≤ 10 min by one operator, no permanent drilling
Display
10.1" LED touchscreen, 1280×800, ≥ 200 cd/m², anti-glare, sunlight-readable
Recording
≥ 24 h continuous, 2 channels (day + thermal), FIFO, H.264/H.265
Battery
≥ 5 h full-performance operation; charging 3–4 h at 230 V AC / 50 Hz
Vehicle power
12 V DC socket (system power + charging)
Environment
−40 °C to +70 °C · IP66+ · drop resistance ≥ 1.5 m
Warranty
3 years; repair within 72 h of a fault report

Specification text, ready for your tender.

Copy it into your specification. It describes the system by what it must do, so any alternative has to meet every point.

NOATender specification textDatasheet

  1. General

    The system shall be NOA by D-FENCE Electronic Fencing and Security Systems Ltd. (ISO 9001:2015 certified quality management), or an approved equivalent that meets every requirement in this section.

  2. Function

    A day and thermal observation kit that clamps onto a patrol vehicle roof or tripod in ≤ 10 min, with no drilling.

  3. The system shall provide

    • Day/night PTZ camera: 2560×1440, ×30 optical zoom, 0.001 lux, WDR ≥ 120 dB, IP67, IK10.
    • Uncooled thermal camera: 640×512, NETD ≤ 45 mK, 7.5–14 µm, continuous zoom lens.
    • 360° pan/tilt head: Continuous 360° pan at up to 100°/s, elevation and depression of at least 85–90°, variable speed.
    • Roof or tripod: Clamps onto a standard roof light bar or a tripod with a working height of about 1.5 m.
    • In-cab control: Joystick for pan, tilt, zoom and focus on both channels; 10.1" sunlight-readable touchscreen.
    • Recording: At least 24 h continuous on both channels at full resolution, H.264/H.265, export to Windows/VLC.
    • Power: At least 5 h on battery, 3–4 h charge from 230 V AC, or the 12 V vehicle socket.
    • Rugged kit: One hard case for a single operator; IP66+, drop resistance of at least 1.5 m.

  4. Technical requirements

    • Camera head: DF-PTZ2060N-6T2575 thermal + optical bi-spectrum PTZ, approx. 8.5 kg
    • Day camera: 1/2.8" sensor, 2560×1440, ×30 optical zoom, WDR ≥ 120 dB, 0.001 lux, autofocus
    • Thermal camera: Uncooled 640×512, NETD ≤ 45 mK, 7.5–14 µm, ≥ 25 FPS, continuous zoom ~25–75 mm
    • Pan / tilt: 360° continuous pan up to 100°/s · tilt up to 40°/s · elevation/depression ≥ 85–90°
    • Mounting: Roof light bar / bridge, or tripod (working height ~1.5 m, folded ≤ 80 cm)
    • Installation: ≤ 10 min by one operator, no permanent drilling
    • Display: 10.1" LED touchscreen, 1280×800, ≥ 200 cd/m², anti-glare, sunlight-readable
    • Recording: ≥ 24 h continuous, 2 channels (day + thermal), FIFO, H.264/H.265
    • Battery: ≥ 5 h full-performance operation; charging 3–4 h at 230 V AC / 50 Hz
    • Vehicle power: 12 V DC socket (system power + charging)
    • Environment: −40 °C to +70 °C · IP66+ · drop resistance ≥ 1.5 m
    • Warranty: 3 years; repair within 72 h of a fault report

  5. Detection sequence

    1. Mount: Clamp the head to the roof light bar or tripod; one cable runs to the cabin.
    2. Observe: Scan 360° on the day and thermal channels with the joystick.
    3. Record: The NVR keeps ≥ 24 h of both channels at full resolution.
    4. Share: Live feed and GPS position go to D-Command Control over 4G/5G.

  6. Submittals

    Before installation, the contractor shall submit the manufacturer's datasheet, the installation instructions and the zone layout for approval.
